LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light

Key Features Weatherproof Reliability: achieve IP68 waterproof rating, ensuring stable power delivery in harsh outdoor and industrial environments. High-Current Capacity: Supports up to 20A/600V, making it ideal for high-power LED drivers and outdoor lighting systems. Solderless Installation: Includes easy-to-use screw terminals for quick field assembly without the need for specialized soldering tools. Universal Fitment: Accommodates a wide range of cable diameters from 5.3mm to 11mm for maximum project versatility.

20A Waterproof Connectors M19 Push-Lock Model: LLT-M19-20004F1031
M19 / Push-Lock LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 11mm

Pin

2-4 Pin

IP Rating

IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

Soldering or screw fixed

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Description LLT M19 Waterproof Connector solves the common problem of power instability in outdoor lighting and industrial machinery. By providing a sealed IP68 connection, it protects your circuits from water ingress, dust, and corrosion, extending the lifespan of your expensive LED drivers and power supplies. Built for performance, this 2-4 Pin aviation plug set handles a robust 20A current and 600V voltage. The kit includes both male and female connectors with a high-precision screw-locking system. Technical versatility is a priority, as the connector supports multiple cable gland sizes ranging from φ6.3mm to φ11mm, ensuring a snug, watertight fit for various wire gauges. Model: M19 Series Connection Type: Male Plug/Female Socket Pair Cable wiring Method: Soldering type or Screw type Material: High-performance engineering plastic with gold-plated contacts Cable grommet: φ6.3, φ7.8, φ8.5, φ9.0, φ10.0,φ11 specifications for choice

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

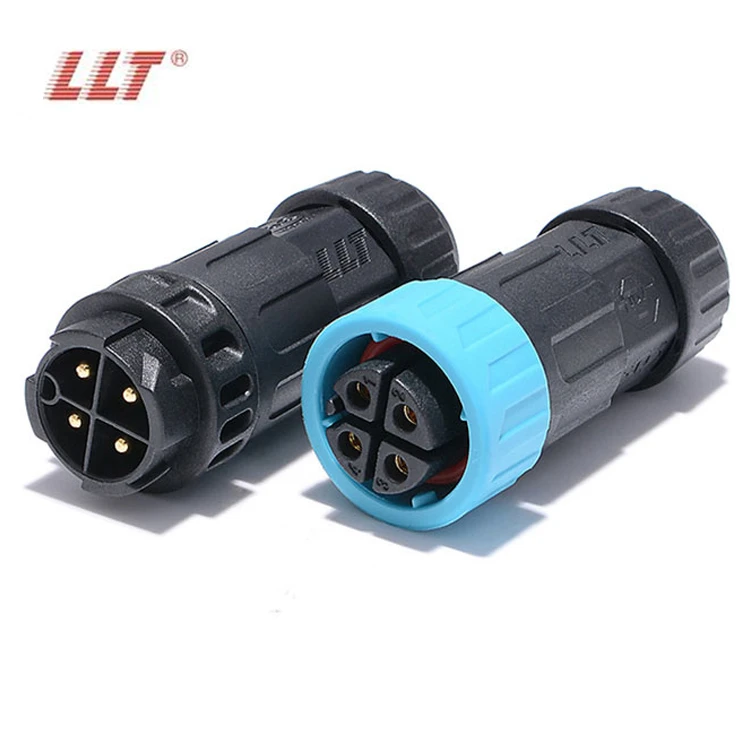

LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light gallery image 1

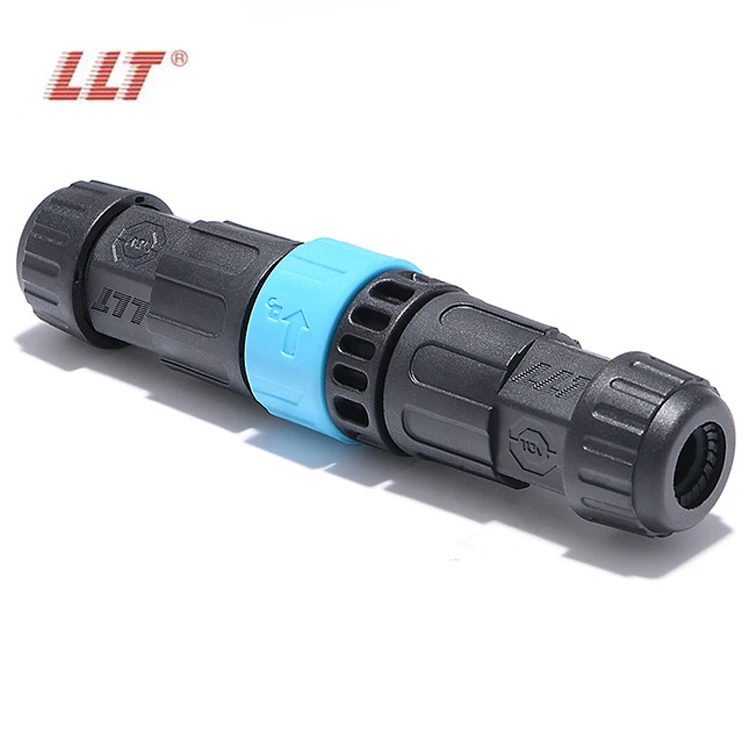

LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light gallery image 2

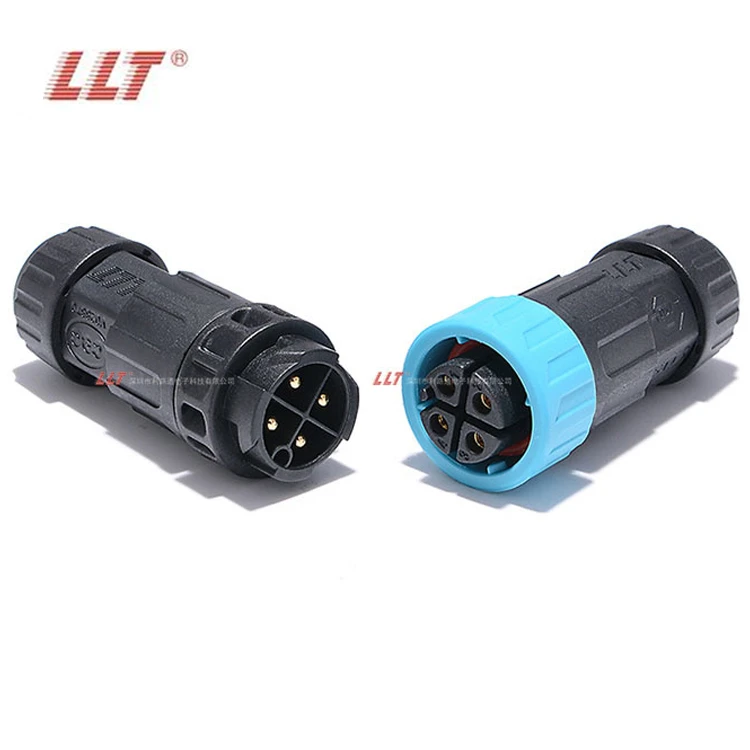

LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light gallery image 3

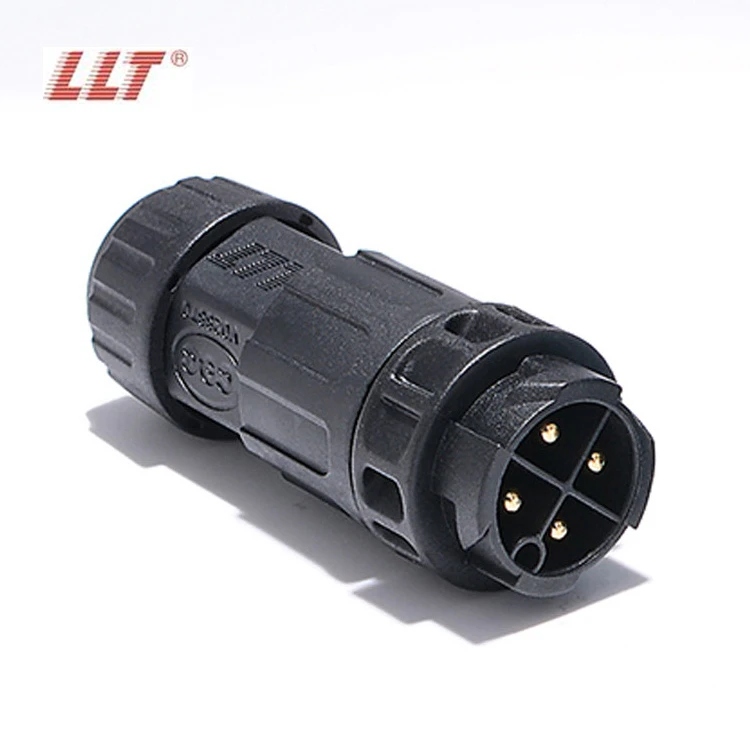

LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light gallery image 4

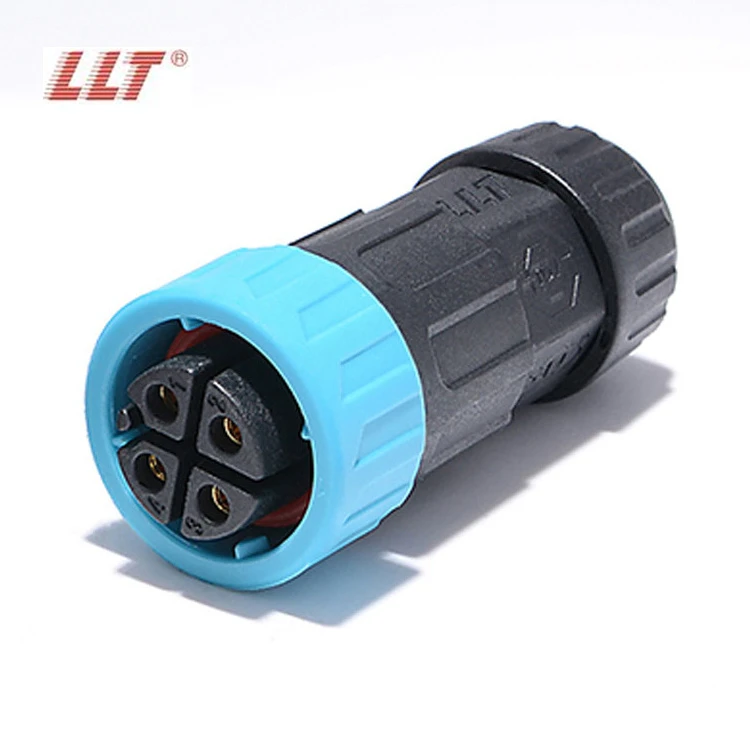

LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light gallery image 5

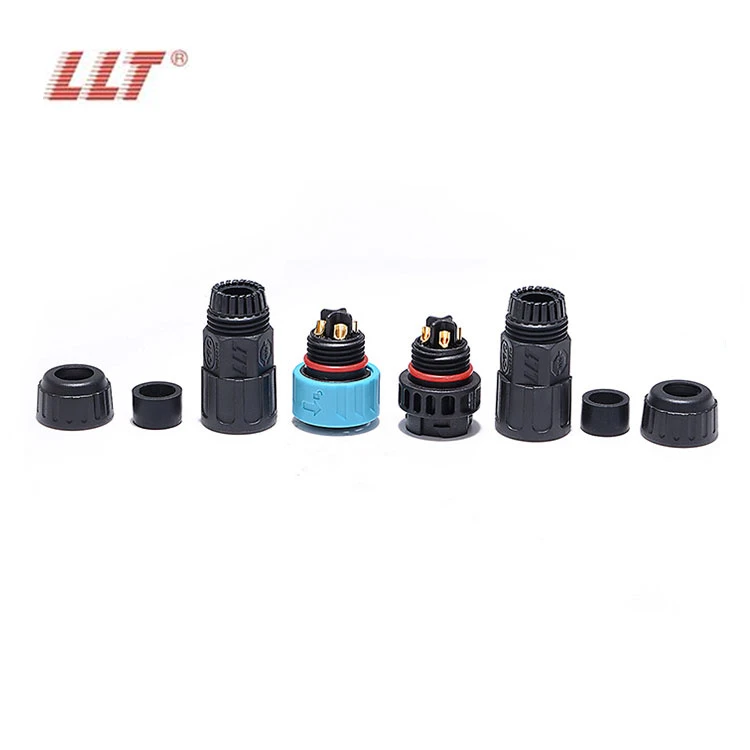

LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light gallery image 6

Technical FAQ

What should be confirmed before selecting LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M19 4Pin Assembly Connector Male and Female Push Lock Waterproof Plug for Cable Led Viewing Light?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
