M16 2+3 pin power plus signal wire IP67 waterproof audio cable connector
M16 / Push-Lock
Get My Contact
Click to reveal the dedicated contact linked to this product page.
Publisher: TonyTang
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M16
Pin
2+3 Pin
IP Rating
IP65/IP67
Rated Current
15A+5A
Rated Voltage
300V+60V
Product Series
M16
Wiring Type
By molding
Interface Type
Push lock
Mating Cycles
>=3000 times
Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Product Overview
Connector application and structure details
This M16 2+3 pin molded cable connector can get IP65/ IP67 waterproof protection . under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened.

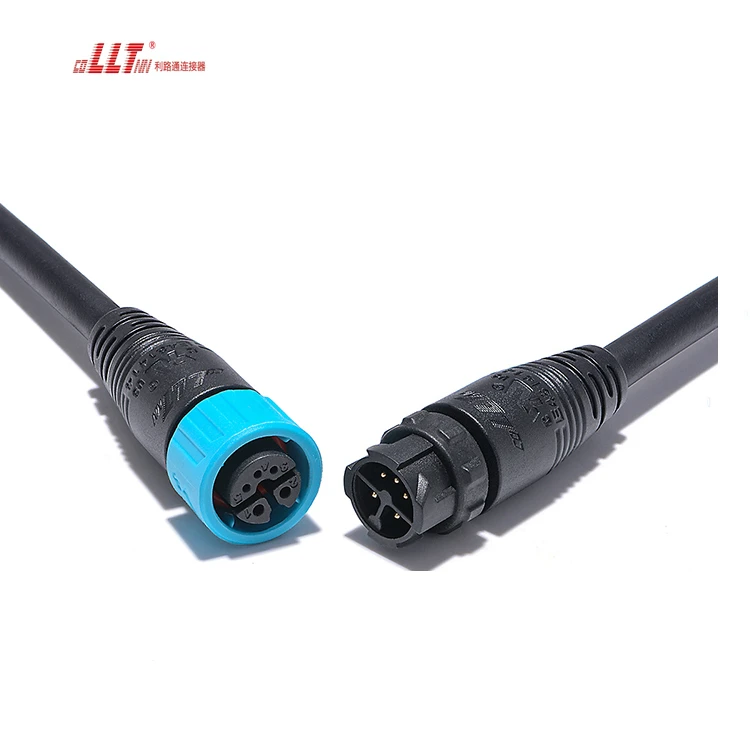

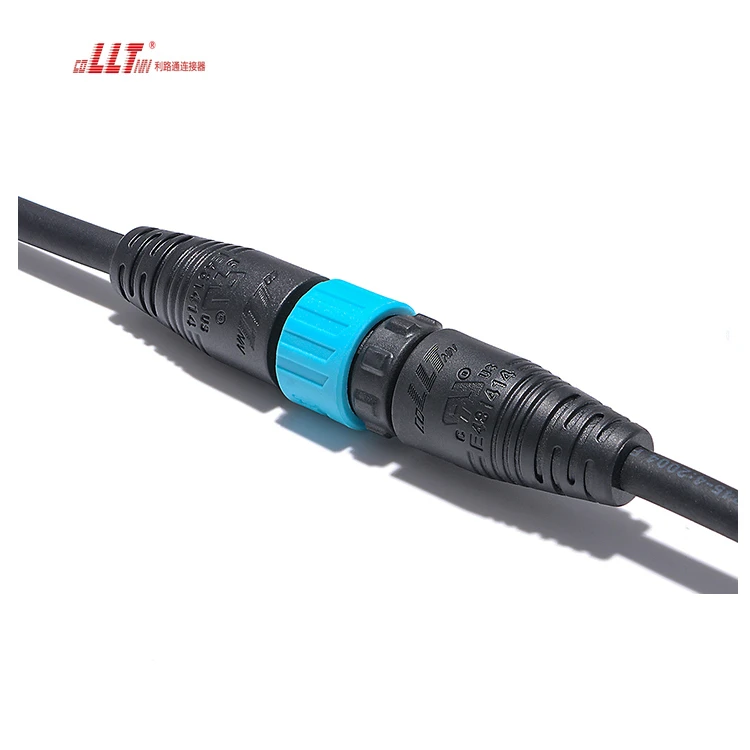

It is very convenient to assemble . The male mate female through push lock . It can mold the outer diameter less than 9mm PVC ,Ruber cable .We can produce it with customized cable length following different requirement .
Our factory specilize in this field around twenty five years ,we rank in the top manufacturer .We Own full sets certificate ,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market ;We can provide competitive price ;Support ODM,OEM ,customized design;100% quality guarantee ,12 months warranty ;Reliable after-sales service ,salesman 24 hours on line to solve your question
Visual Gallery
Product details, interface geometry, and cable integration views
