LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector

Name: LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M19-20004F1071

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 20A current range, 4pin pin layout, 2-18pin/2+4/2+5/3+5pin interface. Termination direction is soldering, which should be checked against the actual harness build.

Circular Connector M19 Bayonet Model: LLT-M19-20004F1071

M19 / Bayonet LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

M19-4Pin Bayonet Power Connector Technical Parameters 1. General Specification • Model: M19 4-pin circular power connector (Male Plug / Female Receptacle) • Locking method: 1/4 turn bayonet twist lock, anti-vibration & anti-loosening • Termination: Soldering wire • Installation: Cable-to-cable / rear panel mounting optional 2. Electrical Parameters • Rated Voltage: 600V AC/DC • Rated Current: 20A per pin • Dielectric Withstand Voltage: 1500V AC, 5s • Contact Resistance: ≤5mΩ (gold plated contacts) • Insulation Resistance: ≥1500MΩ (DC500V) • Applicable wire: 0.3～2.0mm² (24AWG–14AWG) • Matched cable OD: Φ3.0～Φ11.0mm 3. Mechanical & Environmental Performance • Protection Grade: IP68 waterproof & dustproof after fully mated • Operating Temperature: -40℃ ~ +105℃ • Mating Cycles: ≥1500 times • Shell Material: PA66 UL94-V0 flame retardant nylon • Contact Material: Brass with hard gold plating, oxidation & corrosion resistant 4. Product Advantages 1. Quick bayonet locking saves assembly time, stable connection under vibration 2. Screw terminal design for easy field wiring on site 3. Double silicone sealing rings ensure IP68 all-weather outdoor performance 4. High conductivity gold-plated pins for stable power transmission 5. Application Outdoor LED lighting, solar power, industrial equipment, monitoring power supply, new energy equipment, automation power wiring

Application Fit

Typical application directions

Selection work that must compare threaded, push-lock, and panel-mount circular layouts before narrowing to a more specific family.
Programs using circular connectors as a comparison hub before moving into waterproof, power, or lighting-specific pages.
Projects targeting IP67/IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 20A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M16 to M22 Medium Connector Range Published range for medium-size circular connector configurations.

Visual Gallery

Product details, interface geometry, and cable integration views

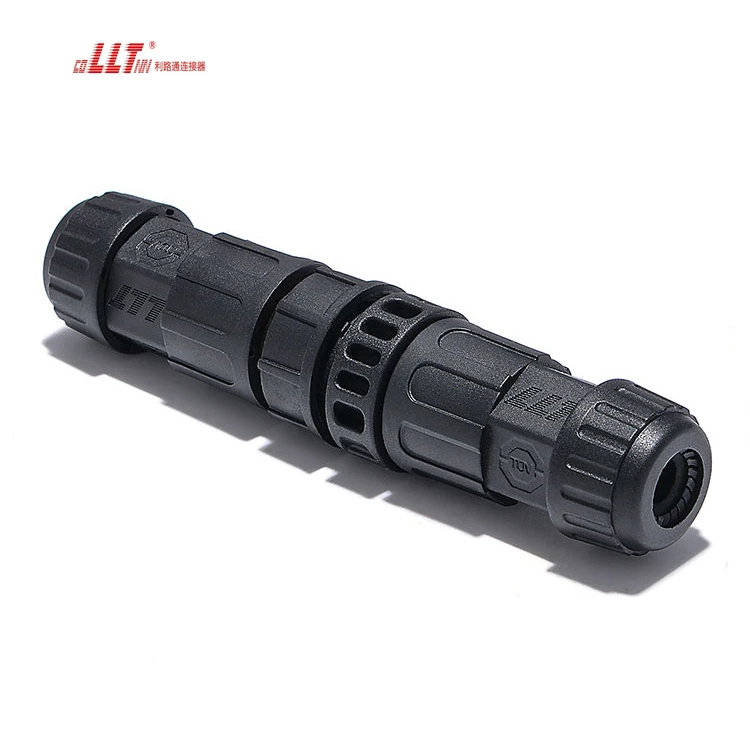

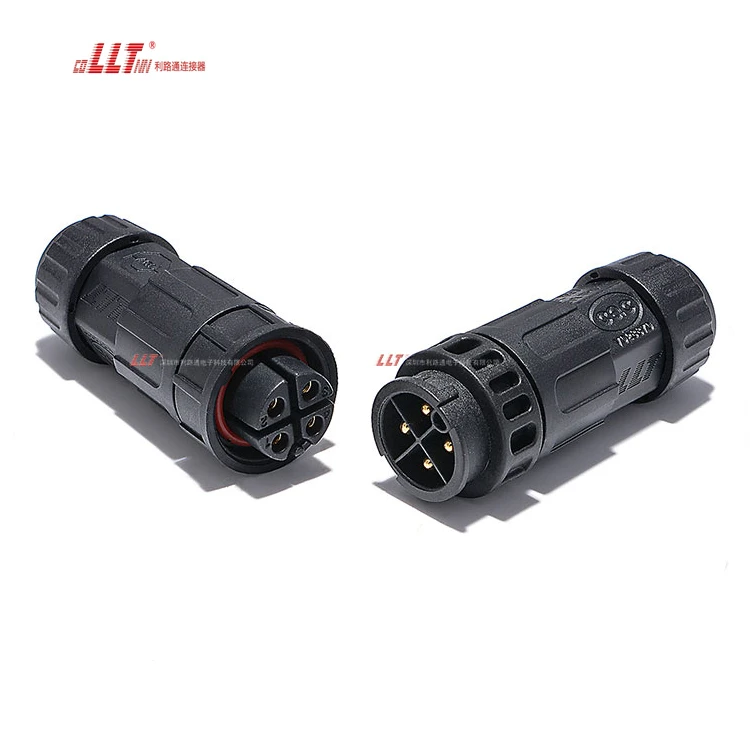

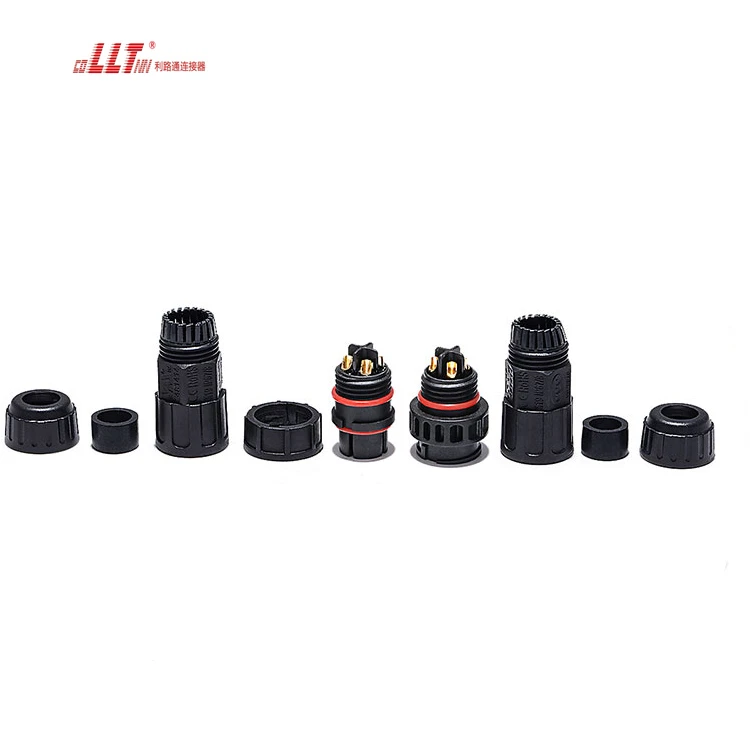

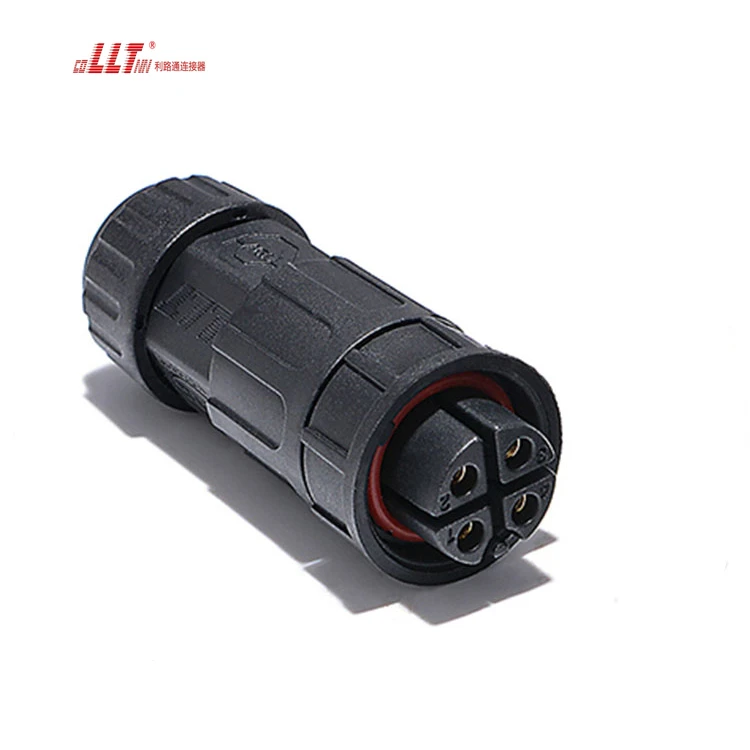

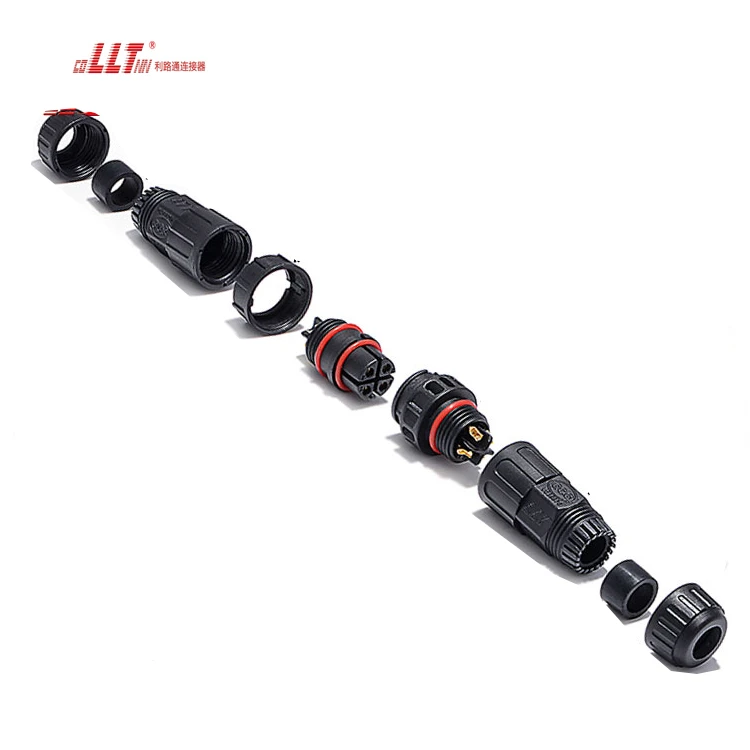

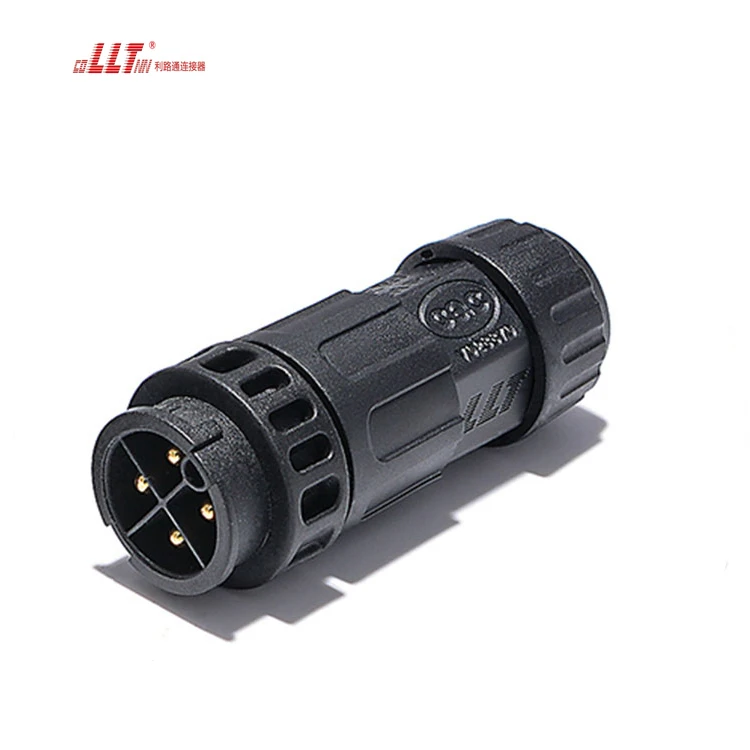

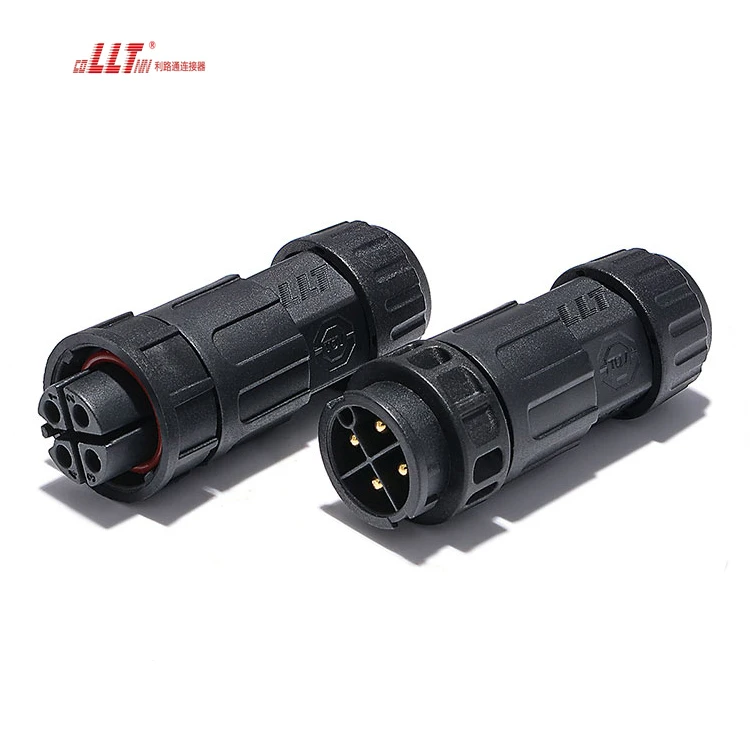

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector gallery image 1

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector gallery image 2

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector gallery image 3

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector gallery image 4

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector gallery image 5

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector gallery image 6

LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector gallery image 7

Compare nearby references in this family

Related Families

Move up to adjacent category pages

Waterproof Circular Connectors 45 published products Waterproof Panel Mount Connector 26 published products Waterproof Data Connector 19 published products Waterproof Cable Connector 15 published products

Technical FAQ

What should be confirmed before selecting LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector is currently configured around 2-18pin/2+4/2+5/3+5pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 4pin M19 Plastic Insulation IP68 Waterproof Electrical Wire Power Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
