LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector

LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP65/IP67, 5A current range, 4pin pin layout, 2 to 5pin interface. Termination direction is by solder, which should be checked against the actual harness build.

Customized Cable Harness M8 Threaded Model: LLT-M8-05004M2801
M8 / Threaded LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M8

Pin

4pin

IP Rating

IP65/IP67

Rated Current

5A

Rated Voltage

60V

Product Series

M8

Wiring Type

by Solder

Interface Type

2 to 5pin

Mating Cycles

>=2000

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

1. Product Overview The M8-4Pin Metal Front Panel Connector is an industrial-grade circular sensor connector with full metal housing. Designed for front-side panel mounting, it features compact structure, anti-vibration screw locking, stable signal transmission and excellent waterproof performance. Widely adopted in industrial automation sensors, actuators, low-voltage power and signal connection, intelligent equipment and outdoor control systems. 2. General Specifications • Product Model: M8-4Pin Metal Front Panel Connector • Connector Type: Circular Panel Mount Socket • Mounting Method: Front Panel Mount (Front-install) • Locking Type: Screw Locking • Pin Number: 4 Contacts 3. Electrical Characteristics • Rated Voltage: 60V DC AC • Rated Current: 5A per pin • Withstand Voltage: 1500V AC (60s) • Insulation Resistance: ≥1000MΩ • Contact Resistance: ≤5mΩ • Application Type: Signal & low-power power transmission 4. Mechanical Properties • Housing Material: Brass shell with nickel plating (full metal) • Contact Material: Copper alloy, gold-plated • Insulator Material: High temperature resistant PA66 • Sealing Material: rubber ring • Durability: ≥2000 mating cycles • Anti-vibration: Meet IEC 60512-6 industrial vibration standard 5. Environmental Performance • Waterproof Grade: IP67 (fully mated condition) • Operating Temperature: -40℃ ~ +105℃ • Storage Temperature: -45℃ ~ +110℃ • Anti-corrosion: Nickel-plated shell for anti-oxidation & anti-rust 6. Standard Pin Definition • Pin 1: VCC / Power + • Pin 2: Signal 1 • Pin 3: GND / Power – • Pin 4: Signal 2 7. Product Features 1. Full nickel-plated brass metal housing, high mechanical strength and durability 2. Front panel mounting design, fast assembly and stable fixation 3. IP67 waterproof & dustproof, suitable for harsh industrial environment 4. Gold-plated contacts ensure stable conduction and oxidation resistance 5. Screw locking structure effectively prevents loose connection under vibration 6. Compact size, perfect for small equipment and sensor embedded installation 8. Application Fields • Industrial automation sensors & actuators • Factory automation control systems • Intelligent detection instruments • Packaging machinery & textile equipment • Outdoor monitoring & low-voltage control devices • Horticulture lighting and automation wiring systems 9. Certification & Package • Certification: CE, REACH compliant • Package: Standard neutral carton packing • Custom Service: Wire length, pin definition, logo available

Application Fit

Typical application directions

  • Connector plus harness packages for outdoor equipment, cabinets, and distributed systems
  • Power and signal assemblies that require overmolding, branching, or defined cable exits
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

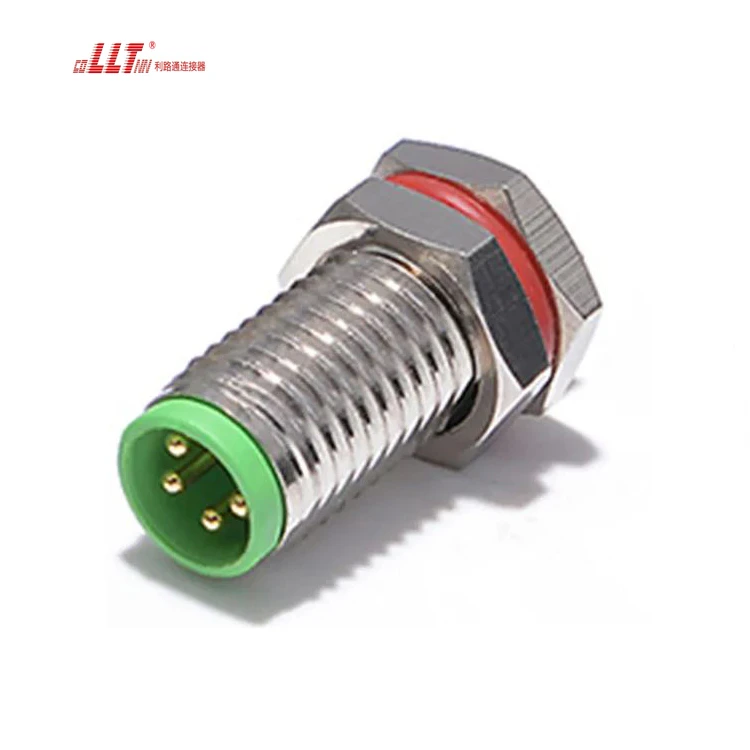

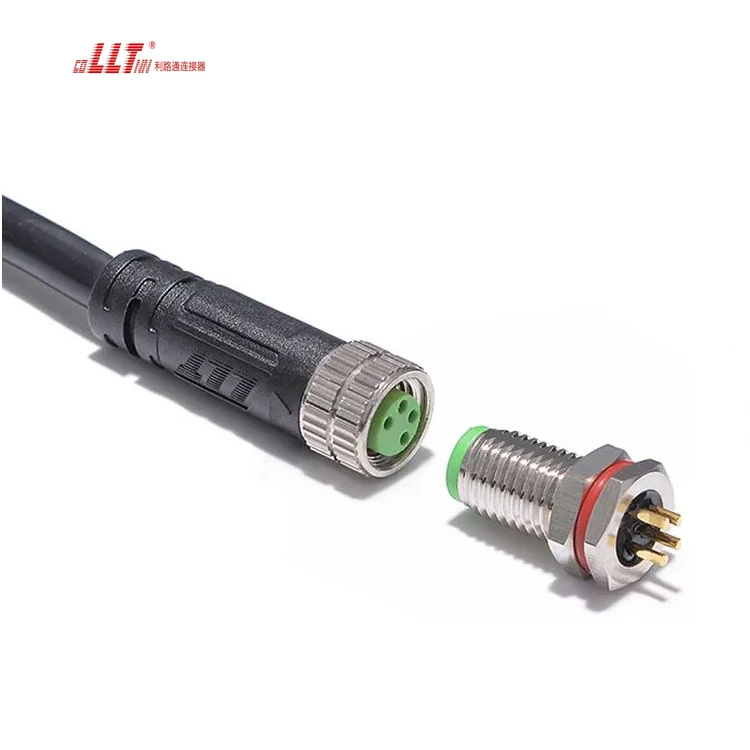

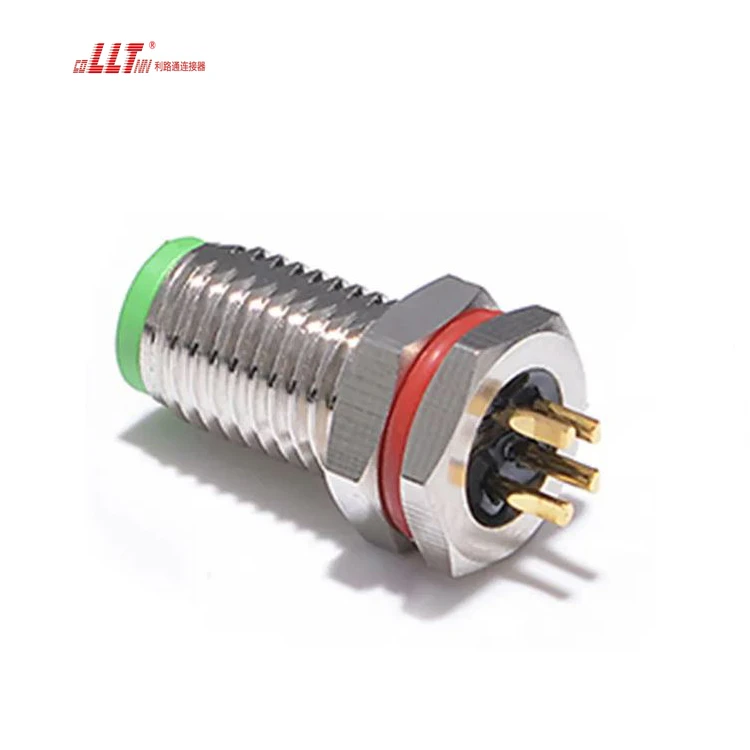

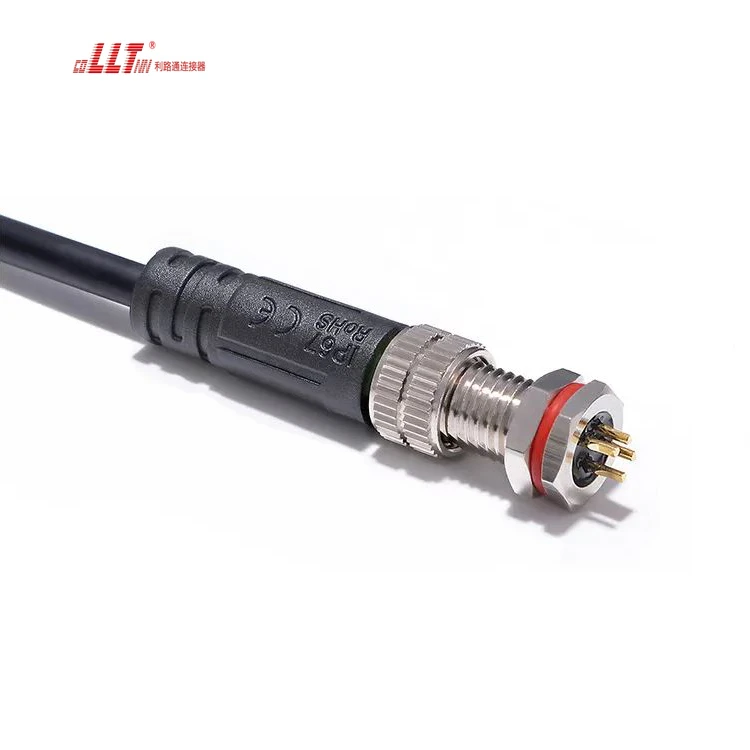

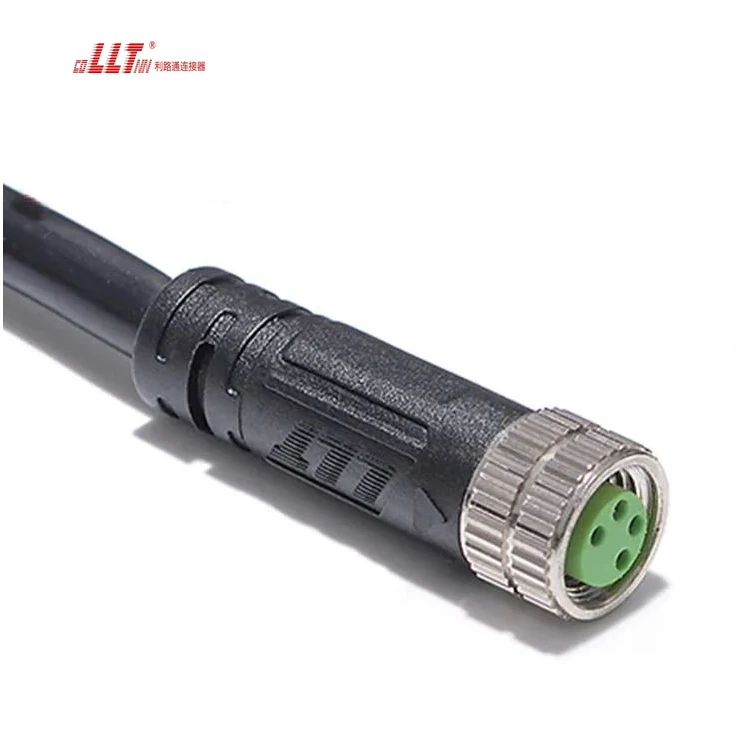

LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector gallery image 1
LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector gallery image 2
LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector gallery image 3
LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector gallery image 4
LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector gallery image 5
LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector is currently configured around 2 to 5pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Customized Cable M8 4 Core Metal Socket Wire Male Female Docking Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
