LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector

Name: LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M16-15003F2961

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector is a published reference for control cabinets and machine enclosures requiring front-to-rear sealed interfaces. The visible configuration highlights sealing around IP67/IP68, 15A current range, 3pin pin layout, 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface. Termination direction is by solder, which should be checked against the actual harness build.

Lighting Connector M16 Threaded Model: LLT-M16-15003F2961

M16 / Threaded LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

LLT M16 3-pin female panel mount connector is a waterproof circular connector designed for reliable power and signal connection in industrial and outdoor equipment. It adopts rear panel installation with threaded locking structure, enabling fast, stable and anti-vibration assembly on device housings. Featuring IP68 waterproof and dustproof rating in mated condition, this connector performs excellently in humid, dusty and harsh working environments. The high-precision gold-plated contacts ensure low contact resistance, superior oxidation resistance and long service life. Manufactured with flame-retardant and durable insulating material, it provides safe and stable electrical performance. Widely applied in LED grow lights, horticulture lighting systems, outdoor lighting fixtures, sensors, automation devices and cabinet power interfaces. It supports long-term continuous operation and offers a cost-effective waterproof wiring solution for outdoor and industrial interconnection systems.

Application Fit

Typical application directions

Control cabinets and machine enclosures requiring front-to-rear sealed interfaces
Distributed I/O points where panel thickness and rear-space limits affect part choice
Projects targeting IP67/IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 15A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M16 to M22 Medium Connector Range Published range for medium-size circular connector configurations.

Visual Gallery

Product details, interface geometry, and cable integration views

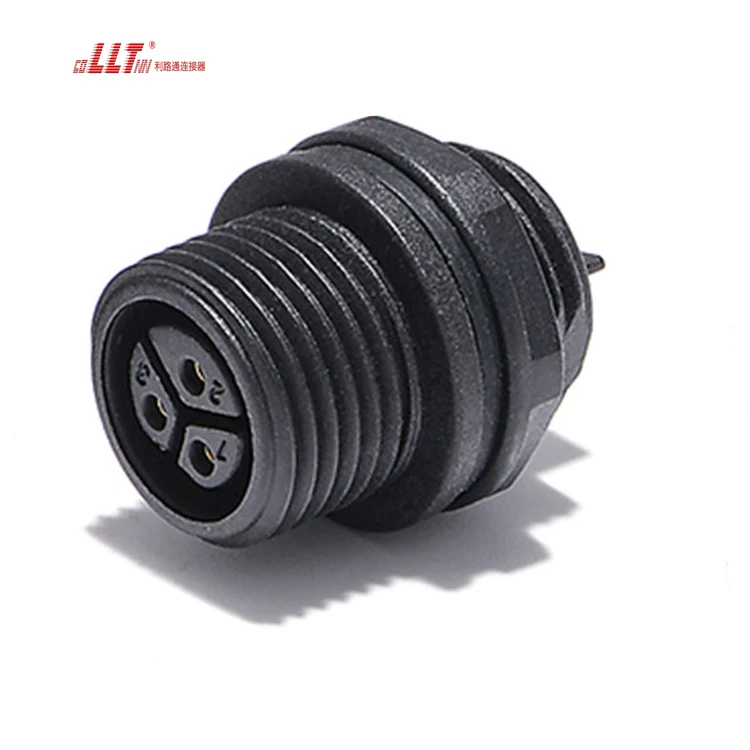

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector gallery image 1

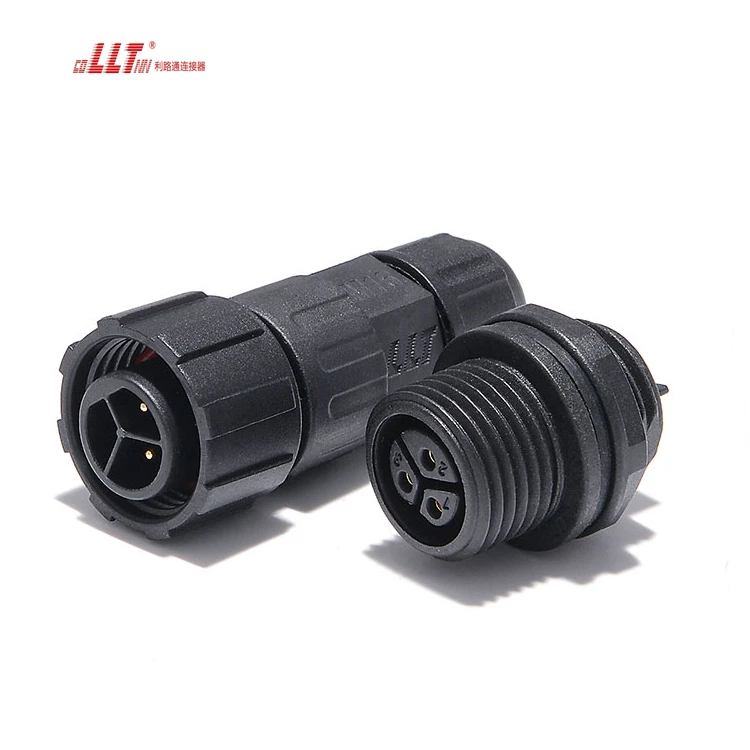

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector gallery image 2

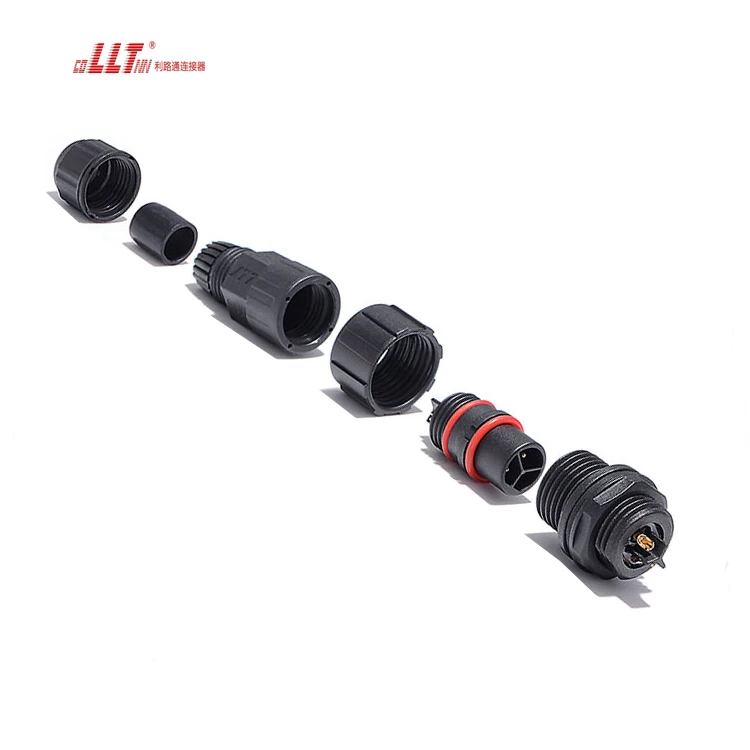

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector gallery image 3

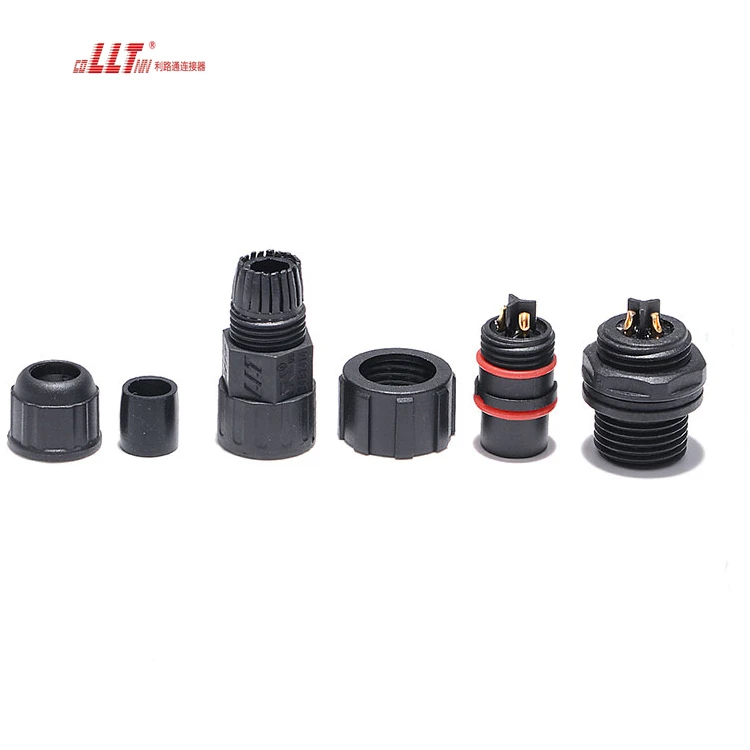

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector gallery image 4

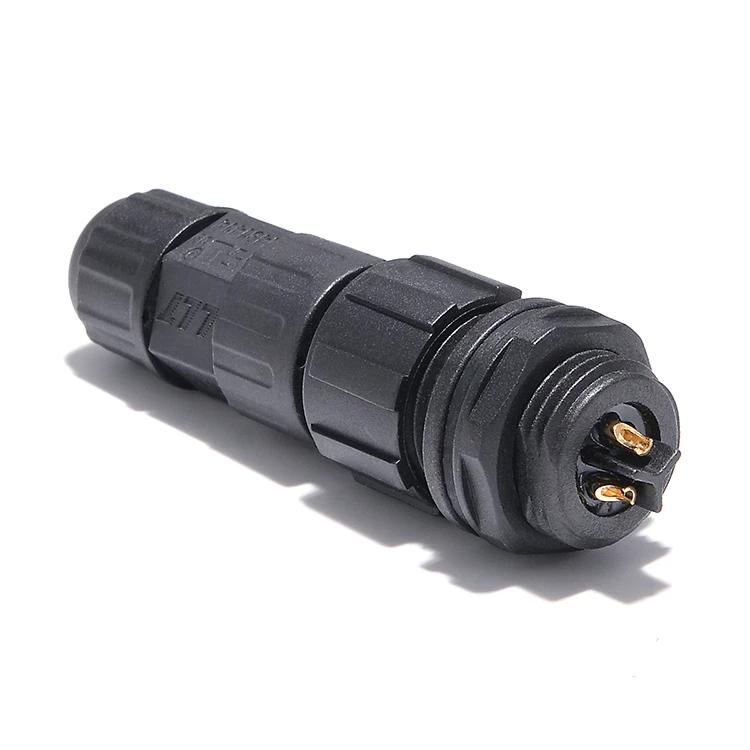

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector gallery image 5

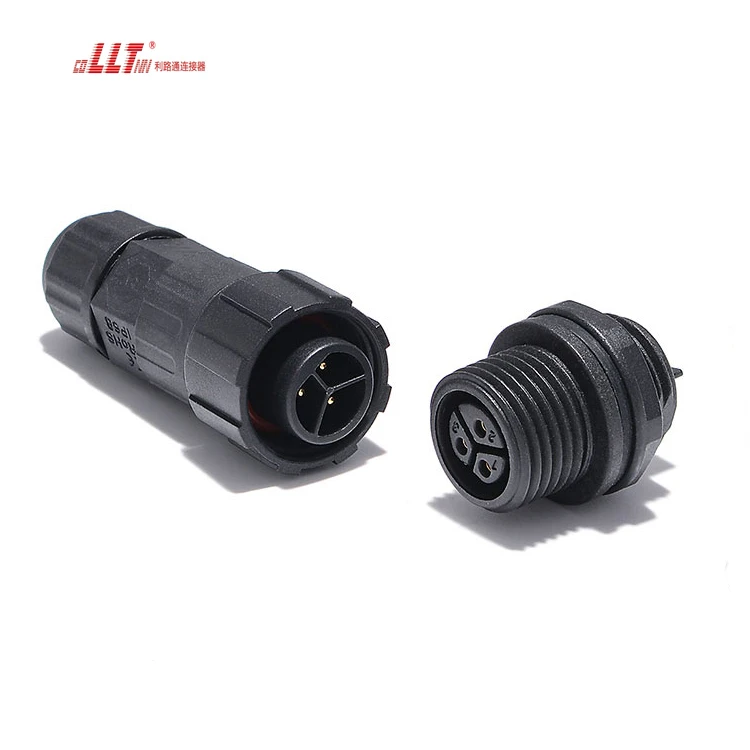

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector gallery image 6

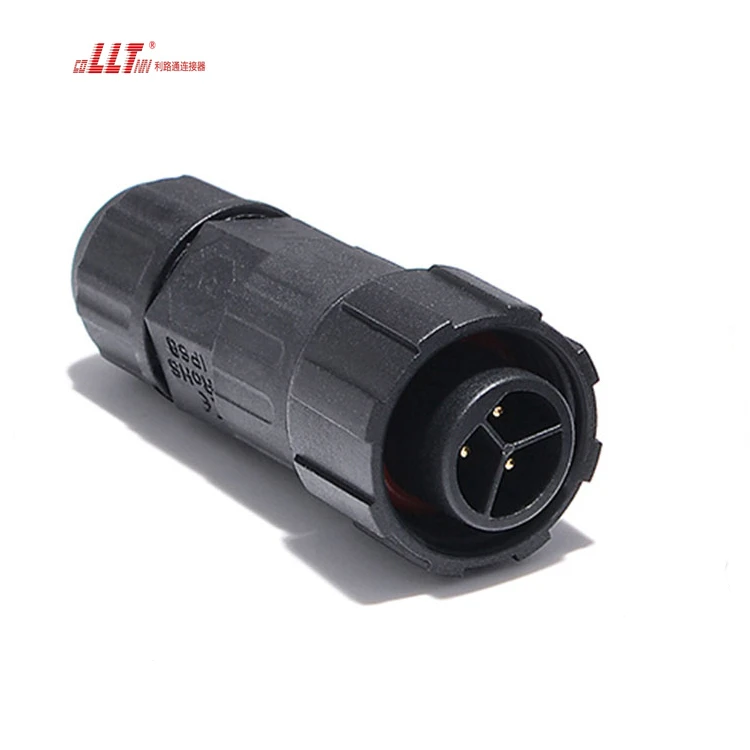

LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector gallery image 7

Compare nearby references in this family

Related Families

Move up to adjacent category pages

Outdoor Waterproof Connectors 7 published products Waterproof LED Connectors 4 published products Waterproof Panel Mount Connector 27 published products Waterproof Data Connector 23 published products

Technical FAQ

What should be confirmed before selecting LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector is currently configured around 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Factory M16 Led Light Electrical Assembly IP68 Waterproof 3pin Female Panel Mount Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
