LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector

LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 20A current range, 2pin pin layout, 2-18pin/2+4/2+5/3+5pin interface. Termination direction is by solder, which should be checked against the actual harness build.

Power Connector M19 Bayonet Model: LLT-M19-20002F2881
M19 / Bayonet LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

Fit max cable OD 10.5mm

Pin

2pin

IP Rating

IP67/IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

by Solder

Interface Type

2-18pin/2+4/2+5/3+5pin

Mating Cycles

>=2000

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This LLT M19 series 2-pin anel mount female socket adopts push-pull quick lock structure, realizing one-click plug/unplug without extra tools, greatly improving on-site wiring efficiency. Integrated silicone sealing rings achieve IP68 waterproof and dustproof grade, fully adapting to damp, dusty outdoor and industrial environments. Electrical specs: rated current 20A, rated voltage 300VAC, contact resistance ≤5mΩ, withstand voltage 1500VAC. Gold-plated solid copper pins ensure low impedance and anti-oxidation for long-term stable power supply. The panel socket is fixed via front/rear panel mounting holes for equipment cabinet installation. Two wiring options (screw terminal / soldering) support 12–22AWG cables. High-temperature flame-retardant PA66 housing features strong mechanical durability over 2000 mating cycles. All materials meet RoHS environmental standards, with CE, UL and CQC certifications. Typical applications include horticulture LED grow lights, solar power modules, outdoor monitoring devices, industrial control panels and electric vehicle auxiliary power connections.

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

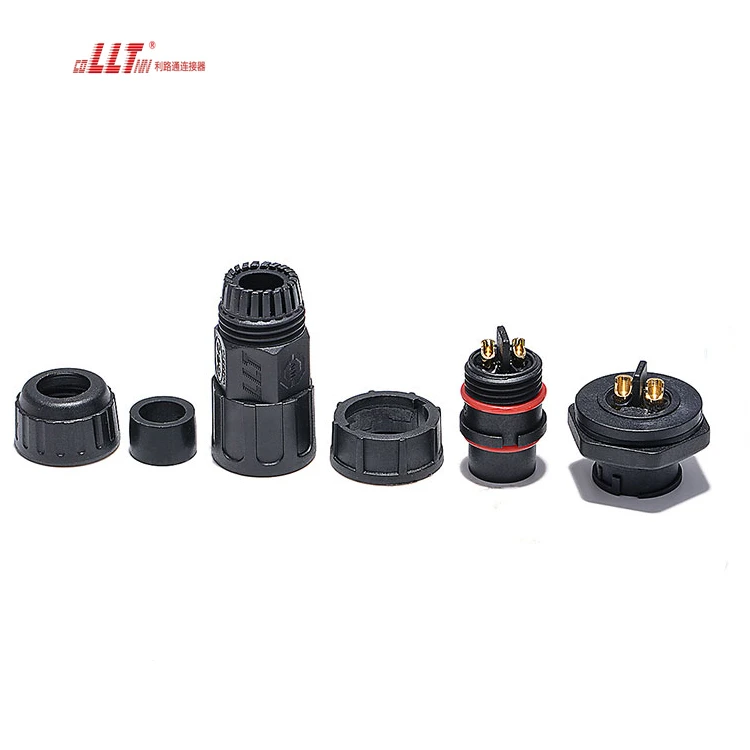

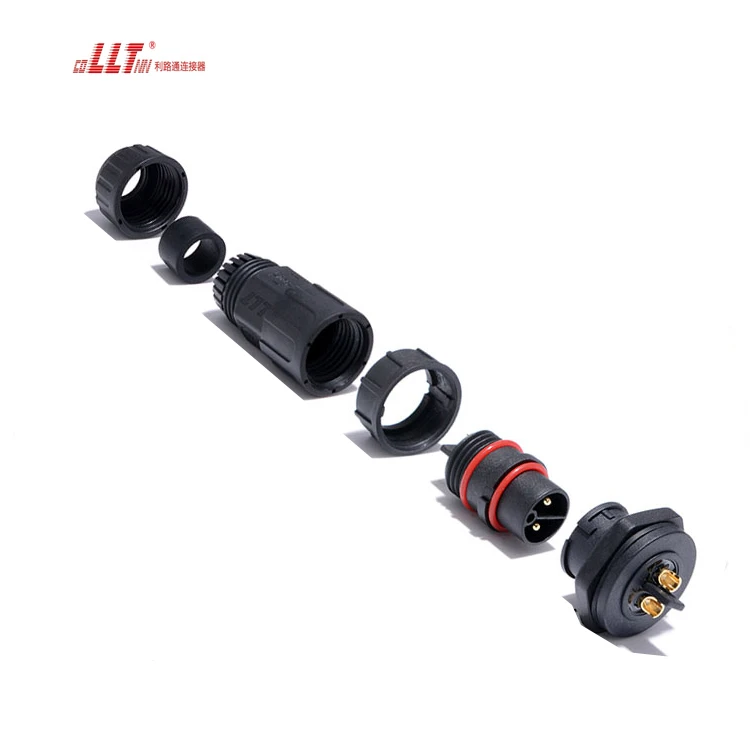

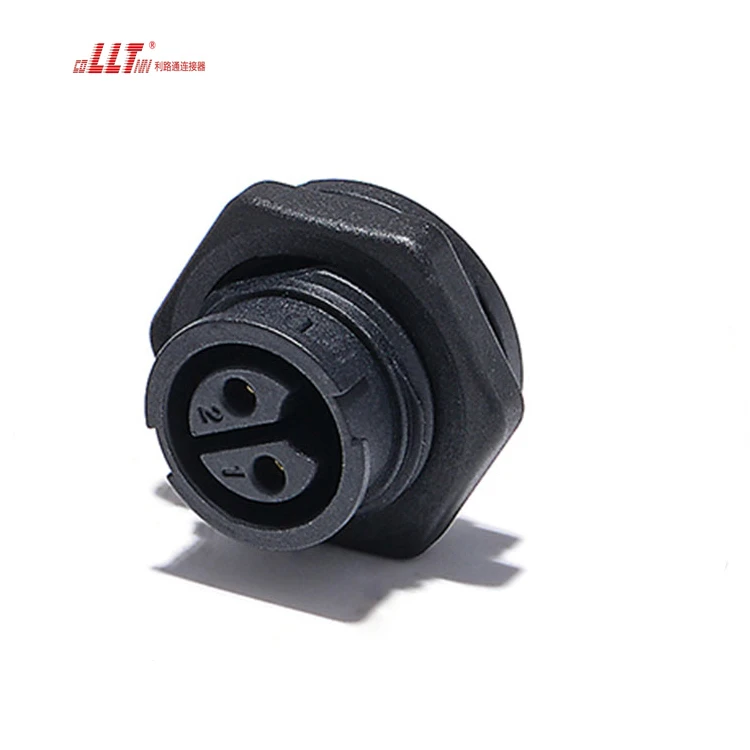

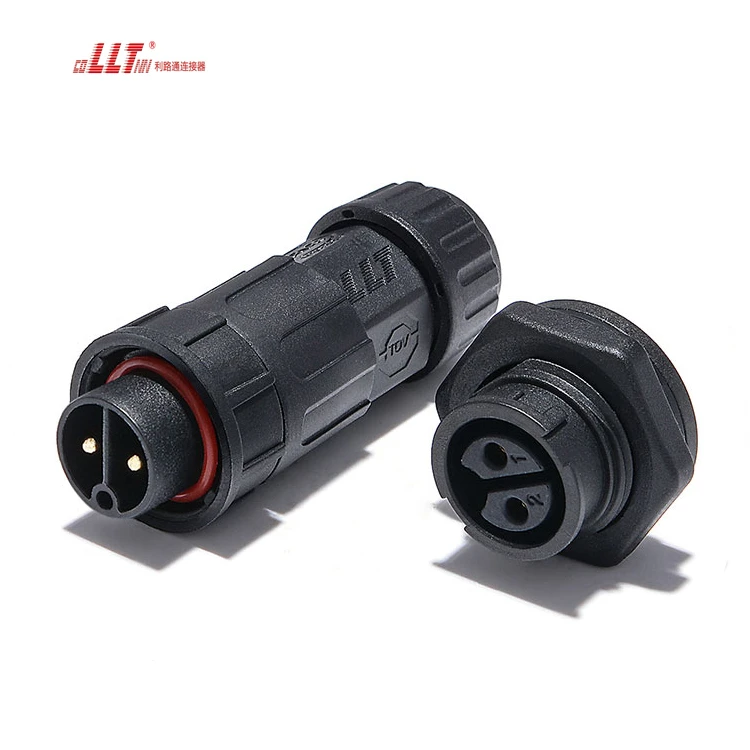

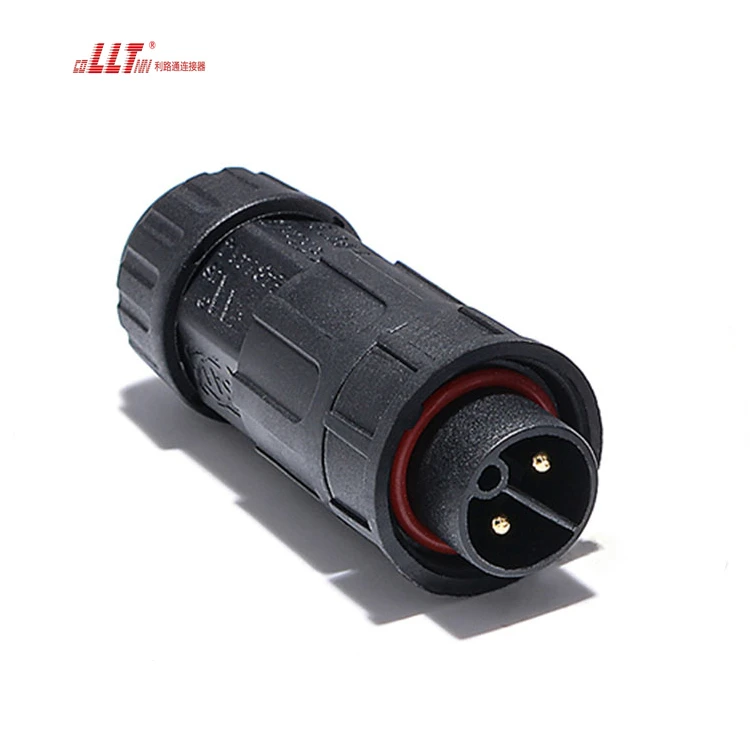

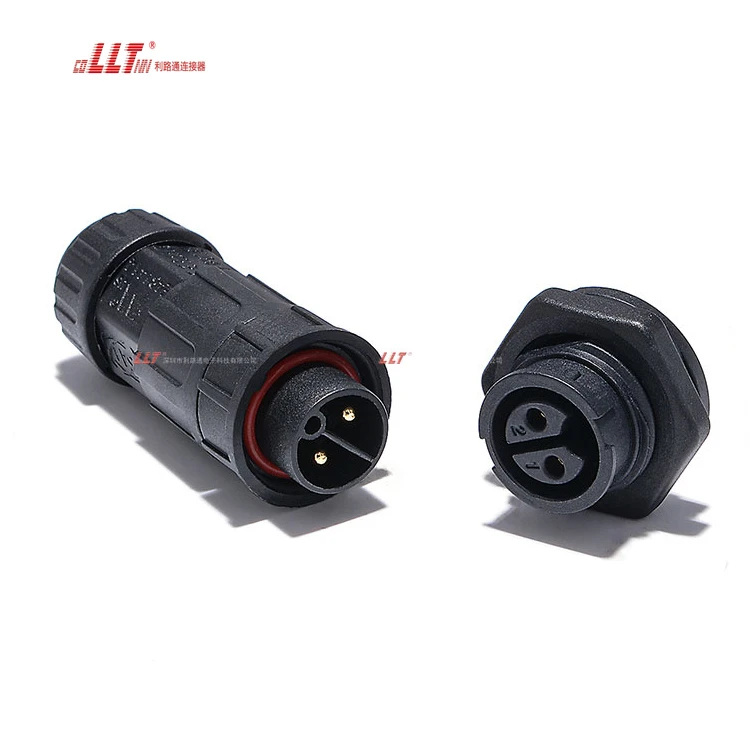

LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector gallery image 1
LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector gallery image 2
LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector gallery image 3
LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector gallery image 4
LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector gallery image 5
LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector is currently configured around 2-18pin/2+4/2+5/3+5pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M19 600V 20A Quick Lock Male Female IP67 IP68 Waterproof Panel Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
