LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector

Waterproof Cable Connector M25 Push-Lock Model: LLT-M25-35002F3034
M25 / Push-Lock LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M25

Pin

2pin

IP Rating

IP67/IP68

Rated Current

35A

Rated Voltage

600V

Product Series

M25

Wiring Type

By molding

Interface Type

Push lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M25-2 pin molded cable connector can get IP65/ IP67 waterproof protection . under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened. It can be used in harsh environment It is very convenient to assemble . The male mate female through push lock . It can mold the outer diameter less than 15mm PVC ,Ruber cable .We can produce it with customized cable length following different requirement . Our factory specilize in this field around twenty five years ,we rank in the top manufacturer .We Own full sets certificate ,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market ;We can provide competitive price ;Support ODM,OEM ,customized design;100% quality guarantee ,12 months warranty ;Reliable after-sales service ,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 35A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

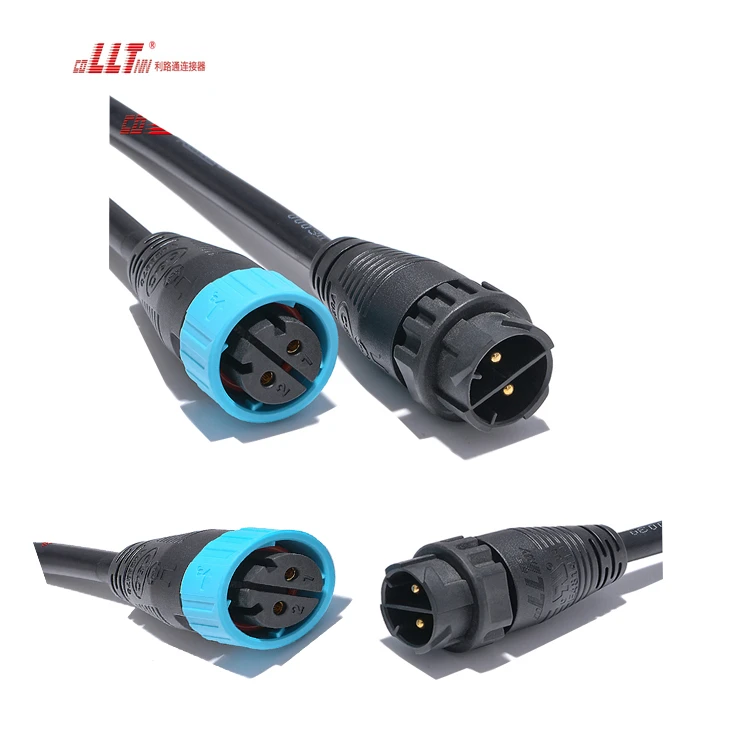

LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector gallery image 1
LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector gallery image 2

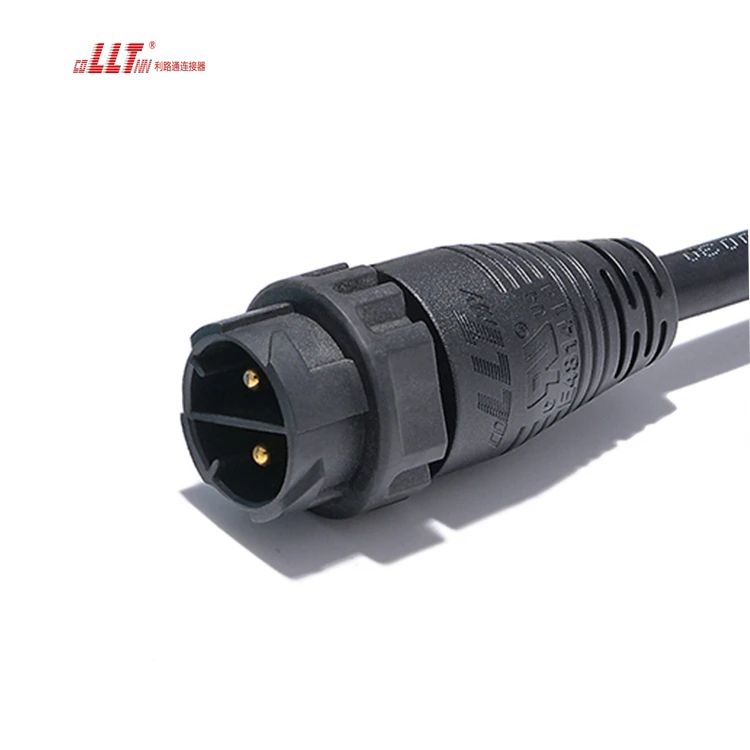

LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector gallery image 3

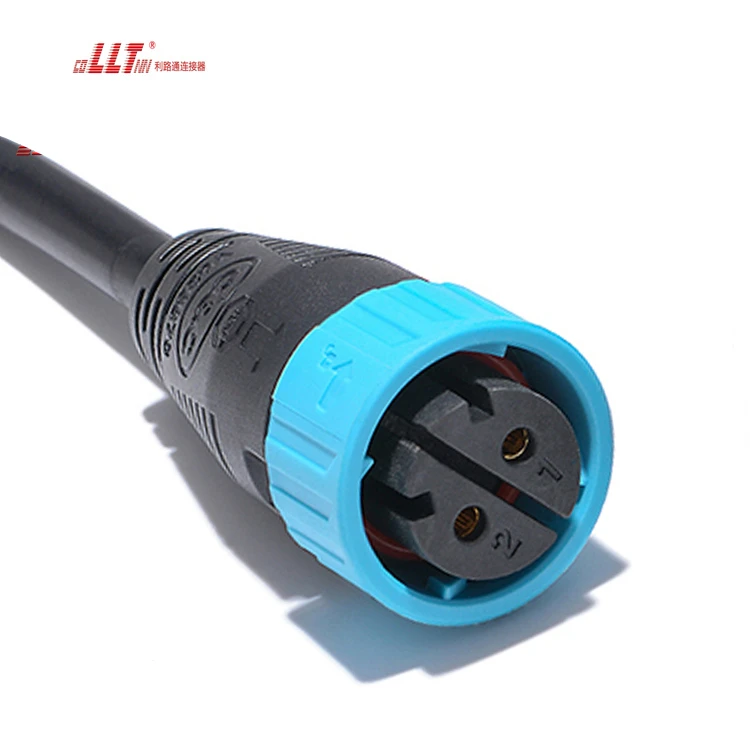

LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector gallery image 4

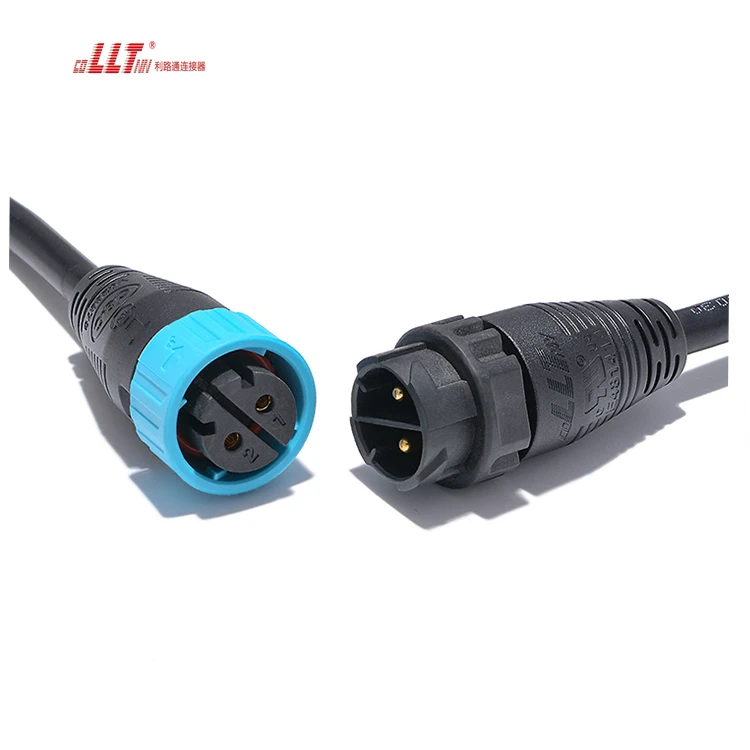

LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector gallery image 5

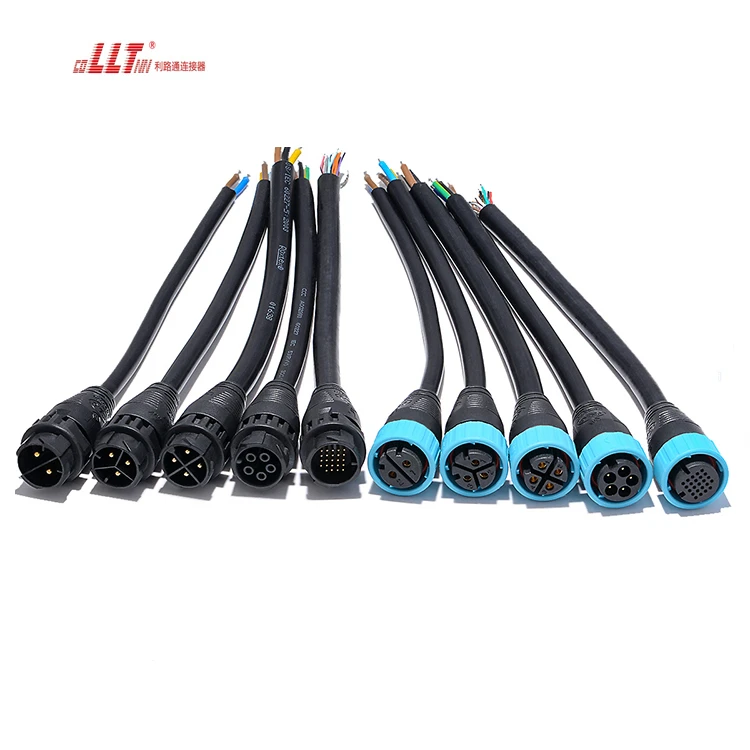

LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector gallery image 6

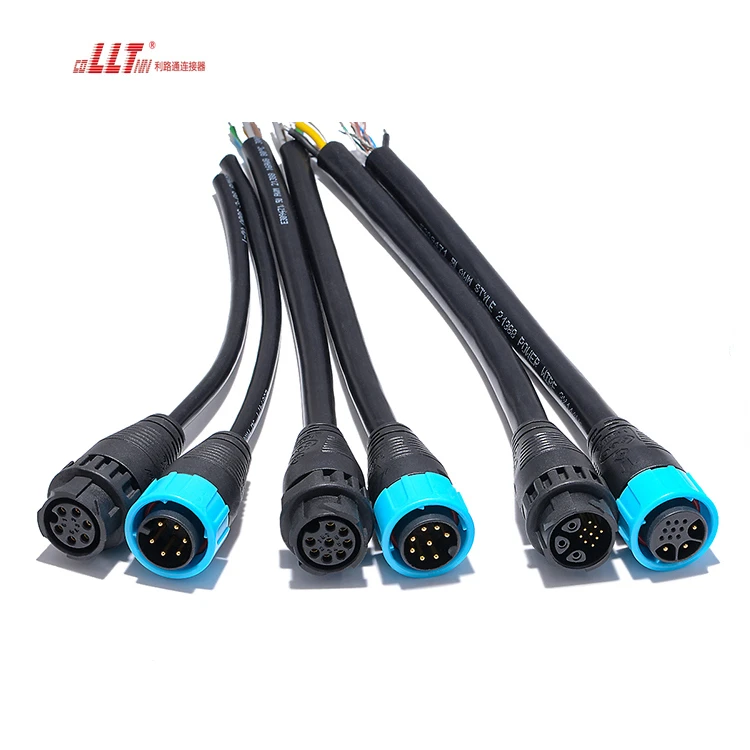

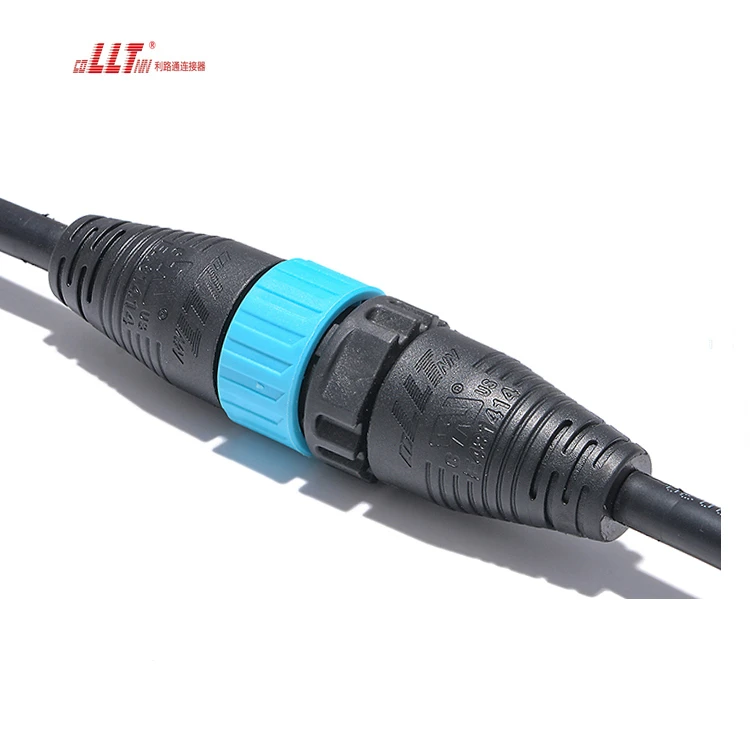

LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector is currently configured around push lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 35A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 2pin M25 Ac Dc Inverter Cable Connector Plastic Power IP67 Waterproof Electrical Cable Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
