Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector

Waterproof Circular Connectors M19 Push-Lock Model: LLT-M19-15005F1031
M19 / Push-Lock Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19

Pin

5pin

IP Rating

IP67/IP68

Rated Current

15A

Rated Voltage

300V

Product Series

M19

Wiring Type

Soldering

Interface Type

Push lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M19-5pin field assembly connector can get IP67/IP68 waterproof protection . under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened. It is very convenient to assemble . The male mate female through push lock . attach cable by solder .We have 4.2/6.3/7.8/8.5/9/10/11mm grommet can fit your different diameter cable . Our factory specilize in this field around twenty five years ,we rank in the top manufacturer .We Own full sets certificate ,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market ;We can provide competitive price ;Support ODM,OEM ,customized design;100% quality guarantee ,12 months warranty ;Reliable after-sales service ,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

  • Outdoor automation modules, lighting systems, and distributed control boxes
  • Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 15A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

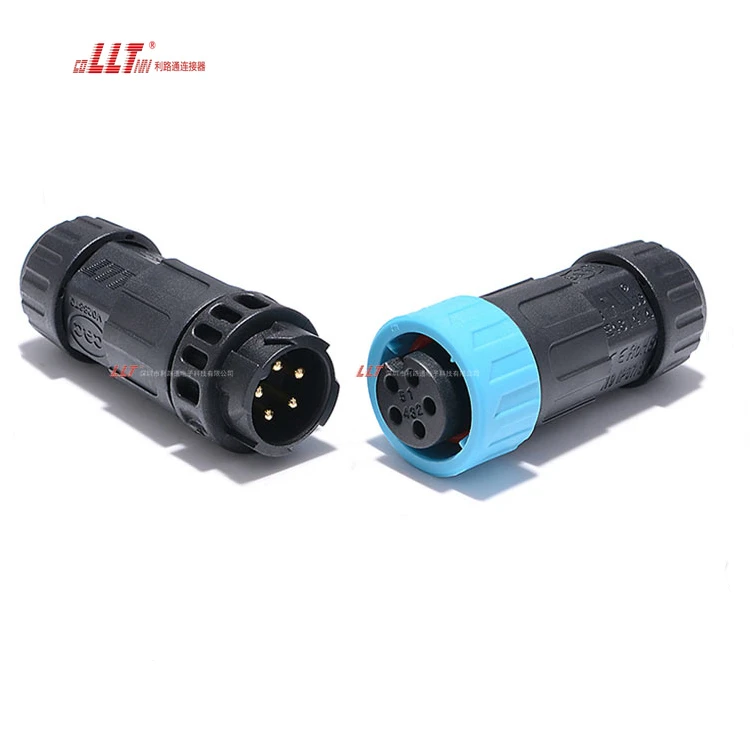

Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector gallery image 1

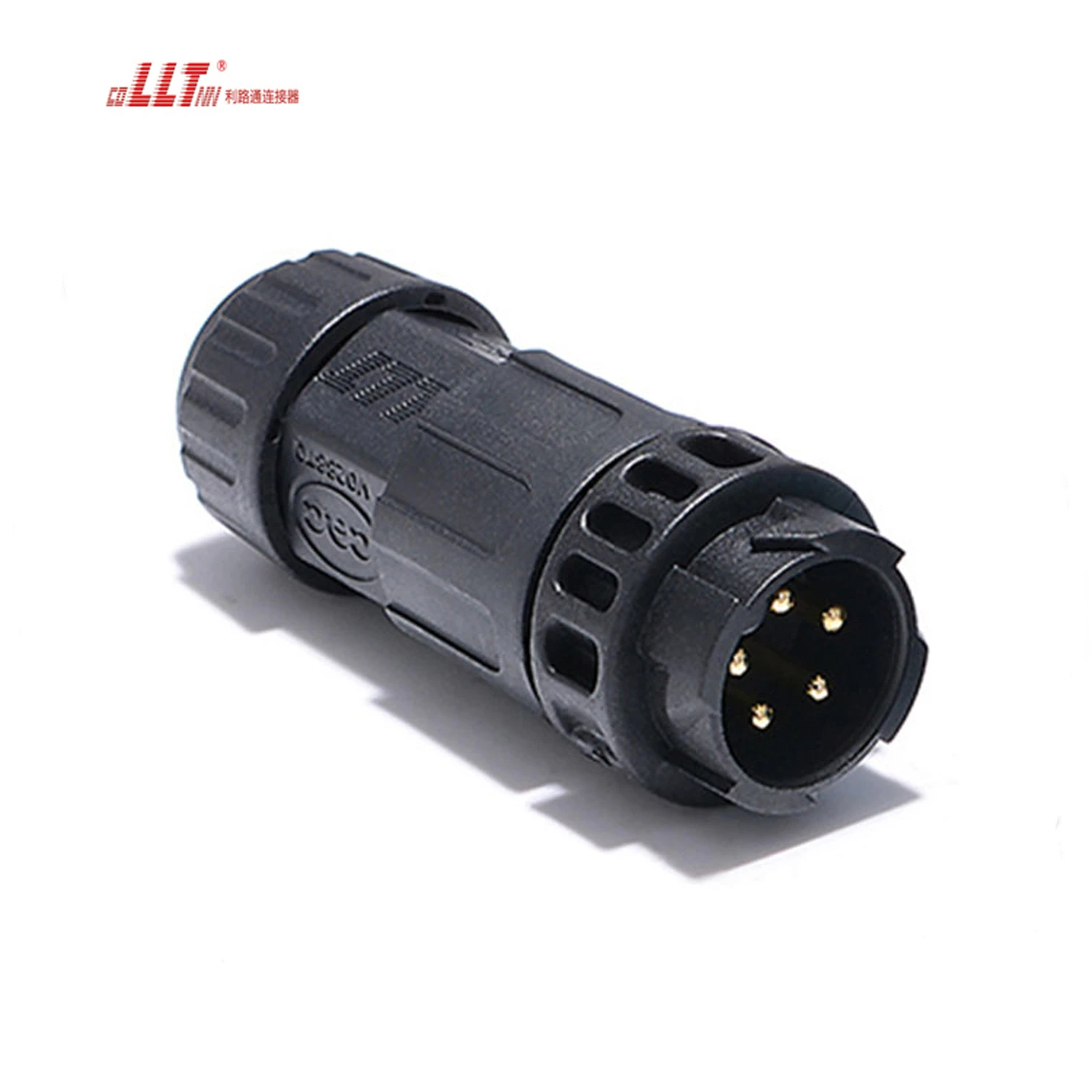

Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector gallery image 2

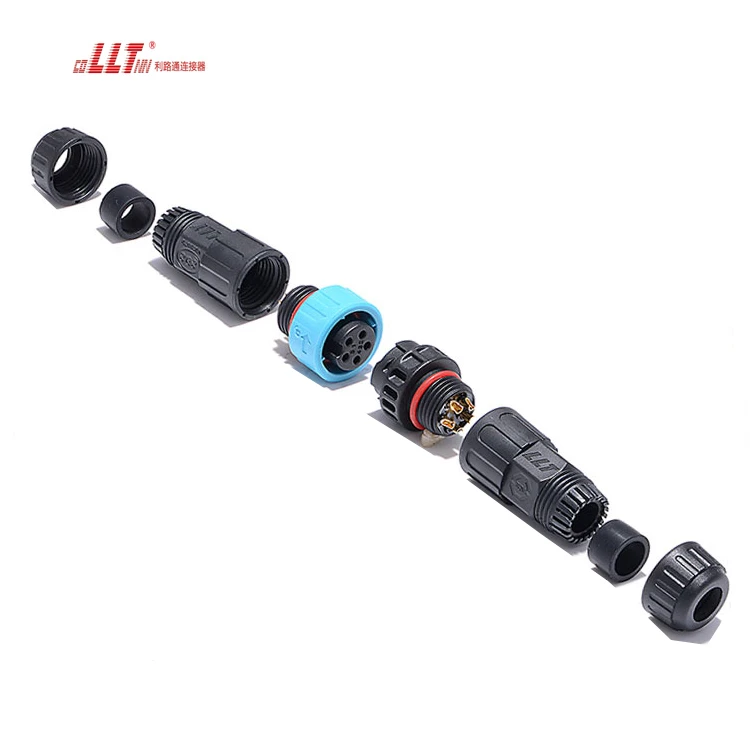

Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector gallery image 3

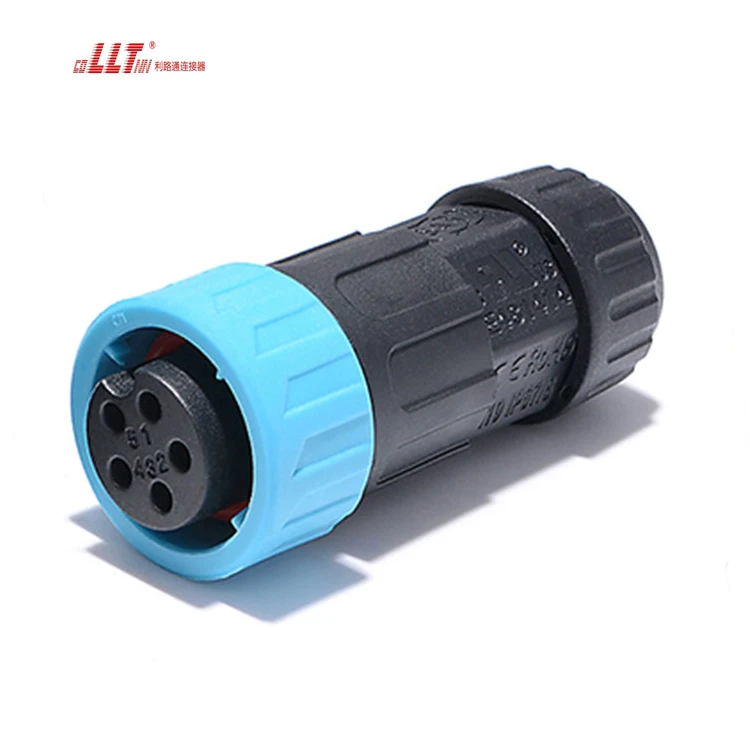

Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector gallery image 4

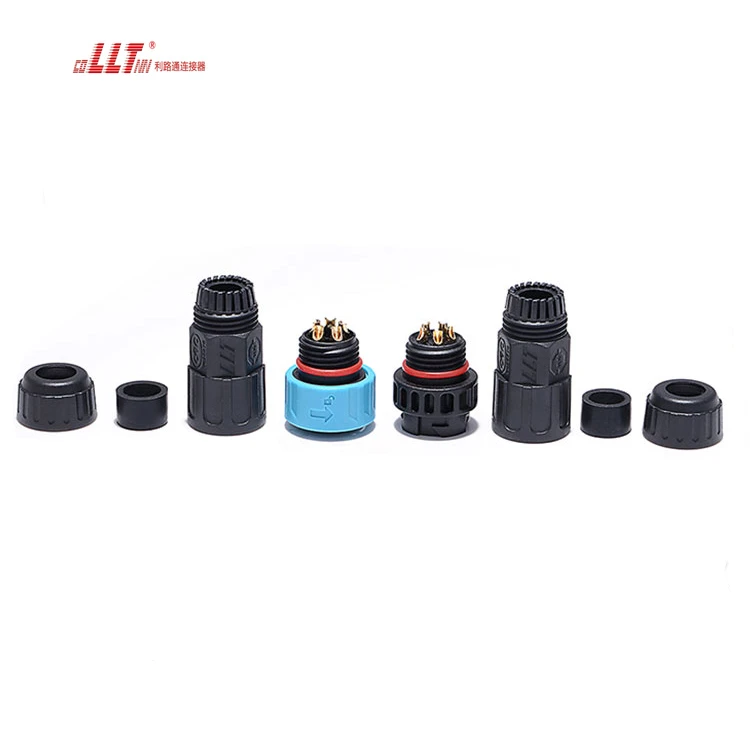

Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector gallery image 5

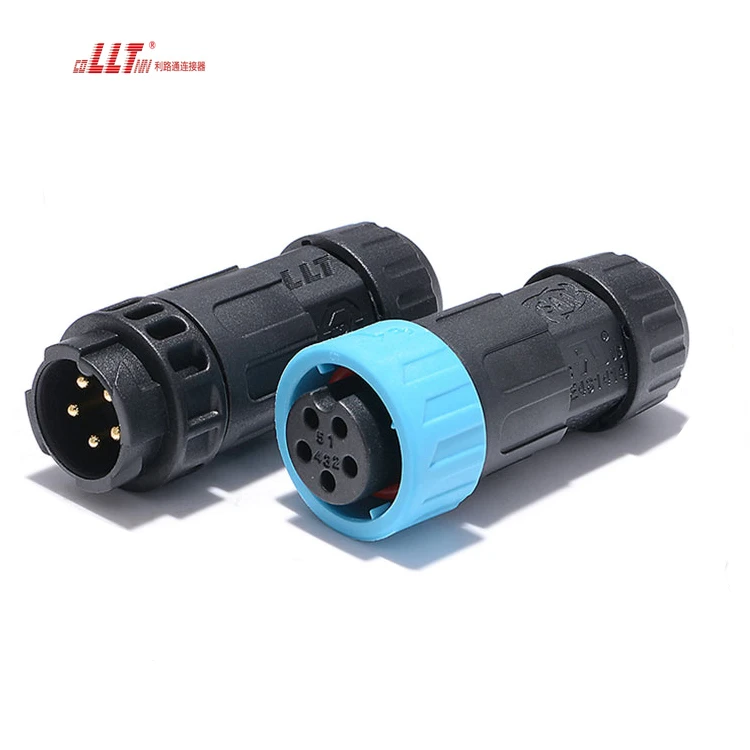

Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector gallery image 6

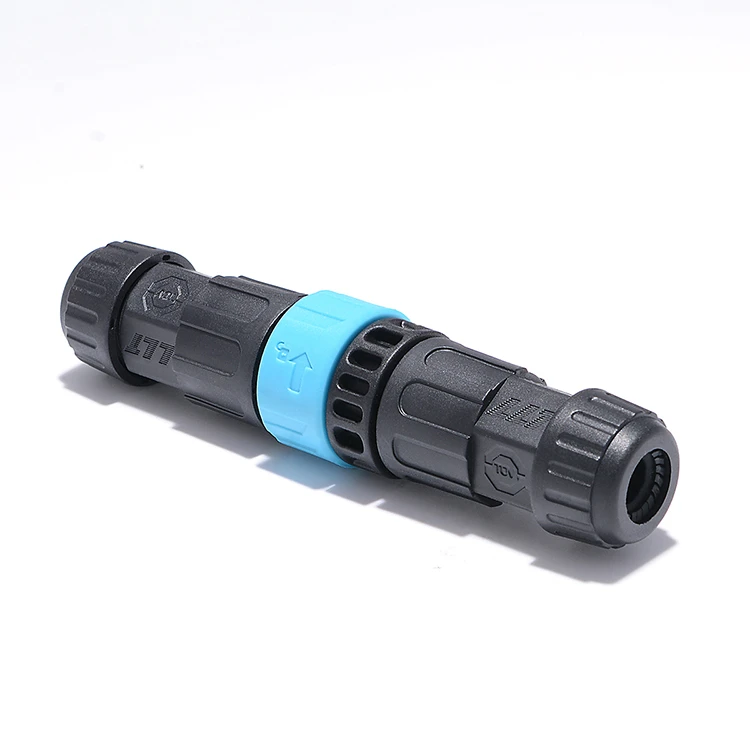

Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector gallery image 7

Technical FAQ

What should be confirmed before selecting Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector is currently configured around push lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for Lilutong M19 5pin Automotive Connector Male Female Electrical IP68 Waterproof Power Led Light Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
