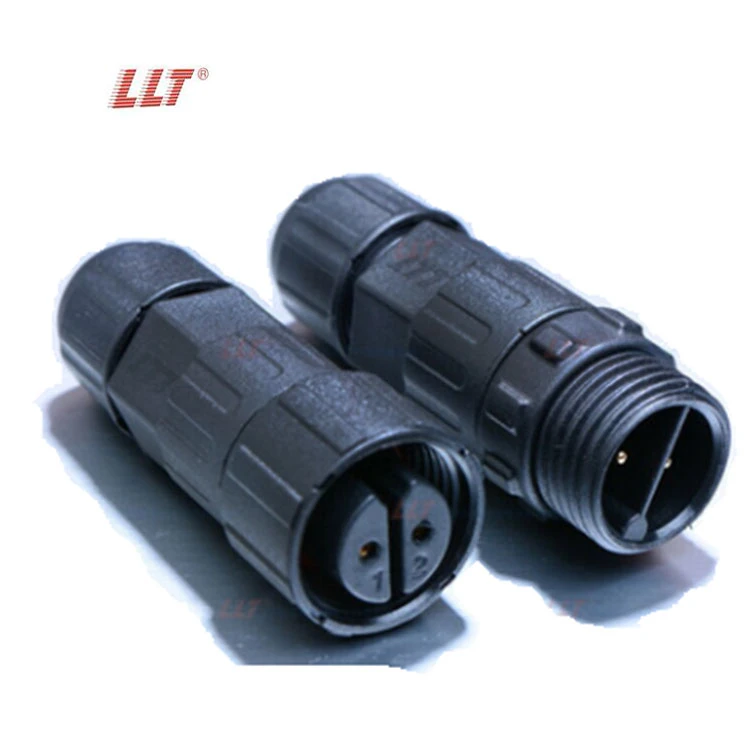

LLT M16 250V 15A Waterproof Connector IP67 IP68 2 3 4 Pin Assembly Cable Connector for Outdoor Lighting
Waterproof Connectors: 1. We have almost all the pins from 2 to 18 pin, they can transmit power and signals. 2. Good quality, they are certificated by UL,CE,TUV,CQC,RoHS,IP67/IP68. Its quality can pass other certification standards if you want to do it. 3. Both push locking and screw locking are optional. 4. Plenty of options, field assembly connector(straight through & 90 degrees), molded with cable connector(straight through, 90 degrees and T connector), USB and RJ45 connector, 2/3/4 way field assembly connector, circular/square/rhombus socket. 5. Free combination, connect them by male female or panel mount as you like. 6. OEM & ODM are always welcome
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
Max. cable OD. 8.5mm
Pin
2-12
IP Rating
IP68
Rated Current
15A
Rated Voltage
250V
Product Series
M16
Wiring Type
Soldering or screw fixed
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Outdoor automation modules, lighting systems, and distributed control boxes
- Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 15A current requirements.
Technical Resources
Catalog and supporting references

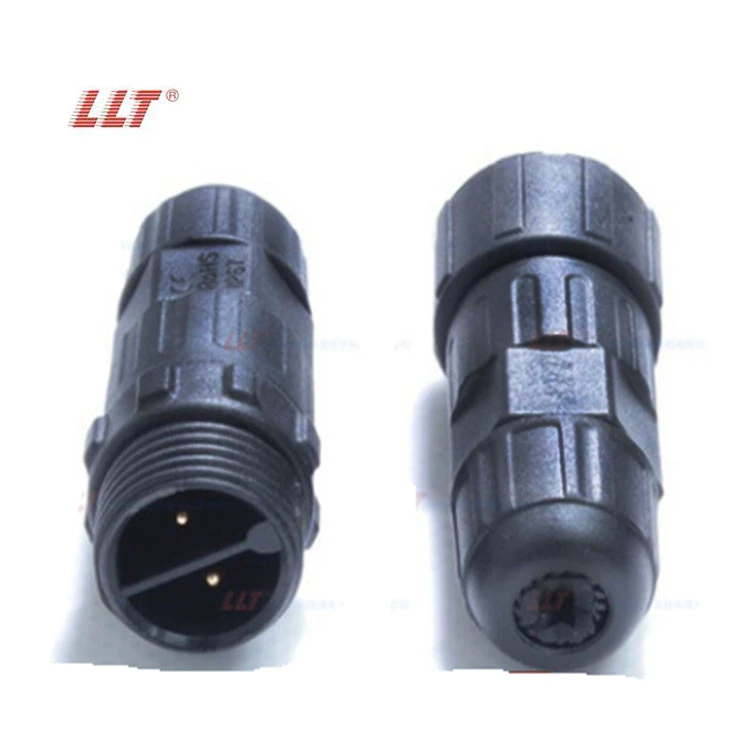

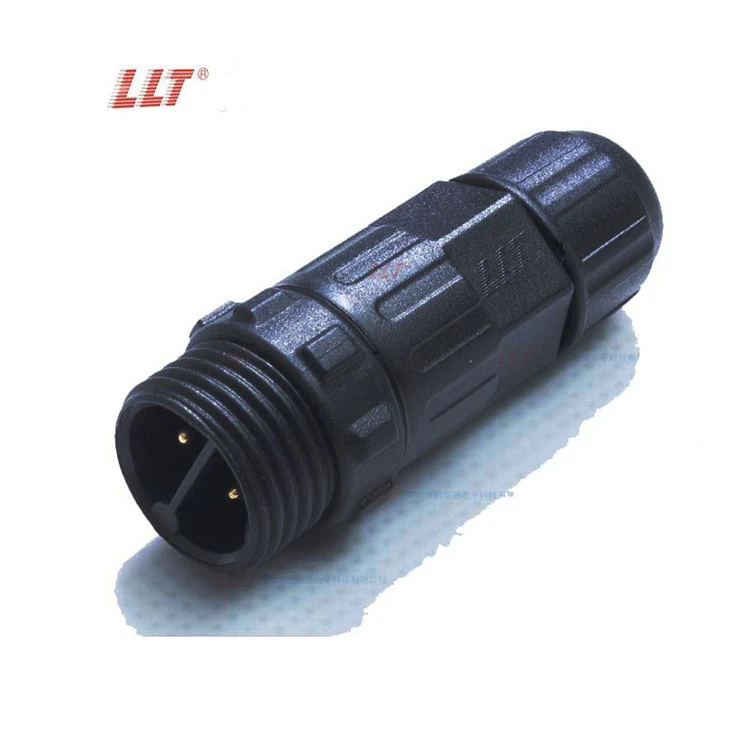

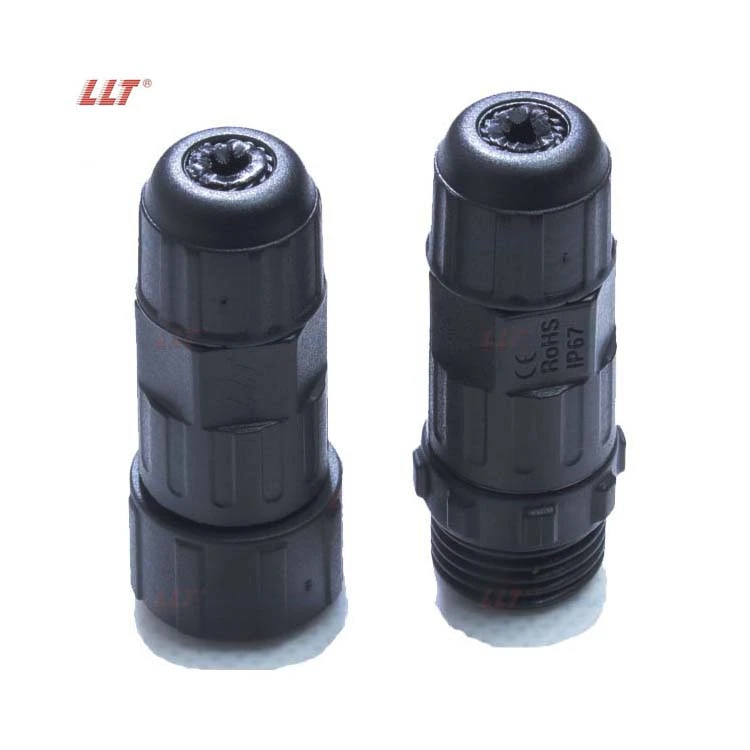

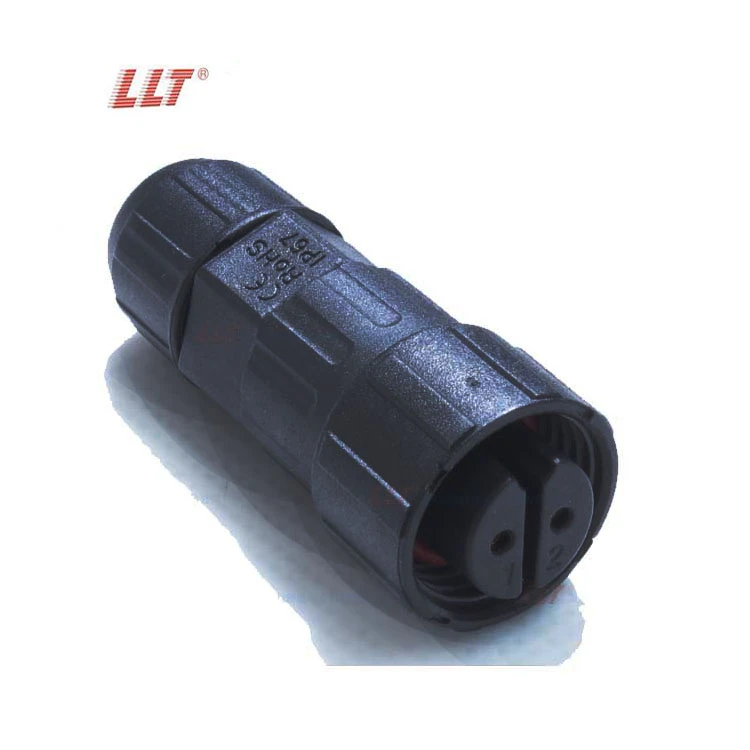

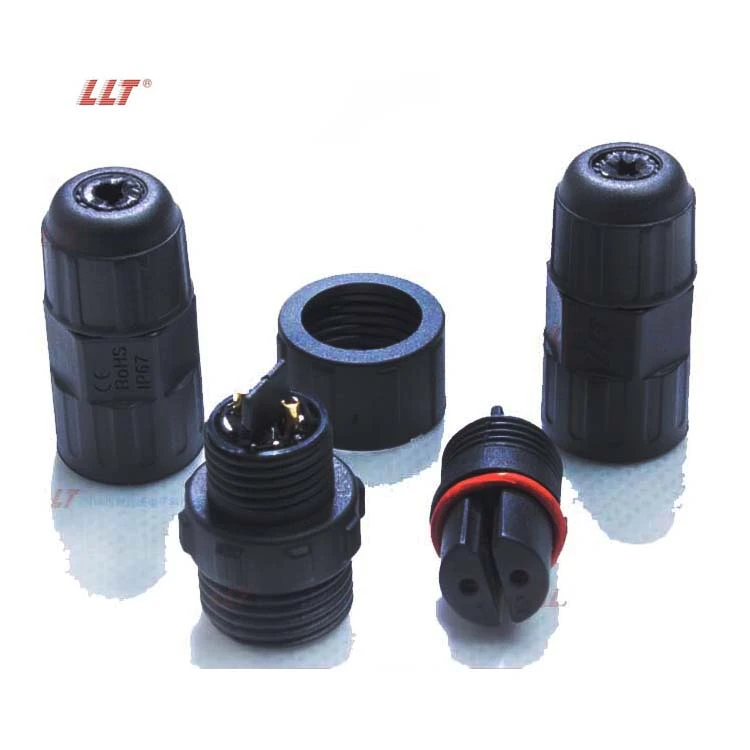

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M16 250V 15A Waterproof Connector IP67 IP68 2 3 4 Pin Assembly Cable Connector for Outdoor Lighting?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M16 250V 15A Waterproof Connector IP67 IP68 2 3 4 Pin Assembly Cable Connector for Outdoor Lighting?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
