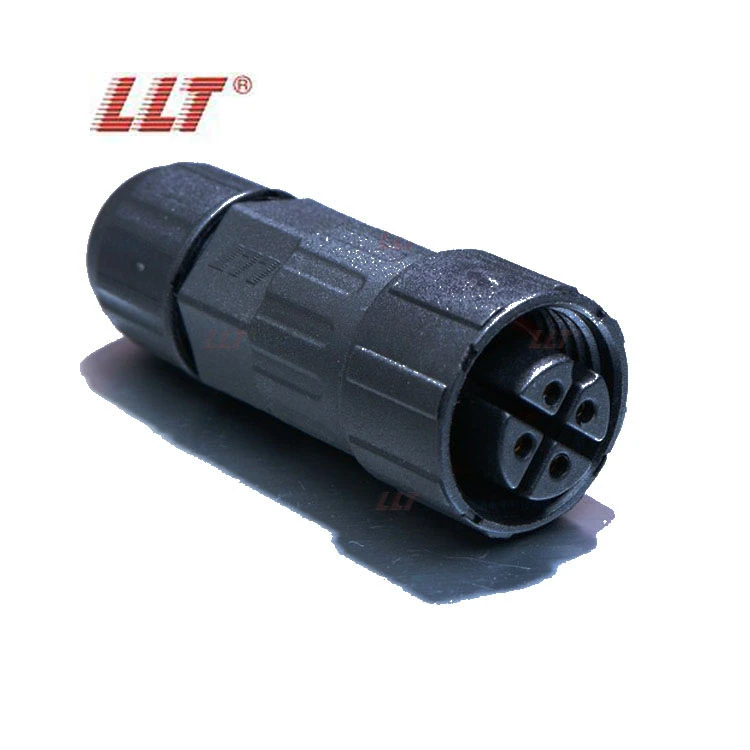

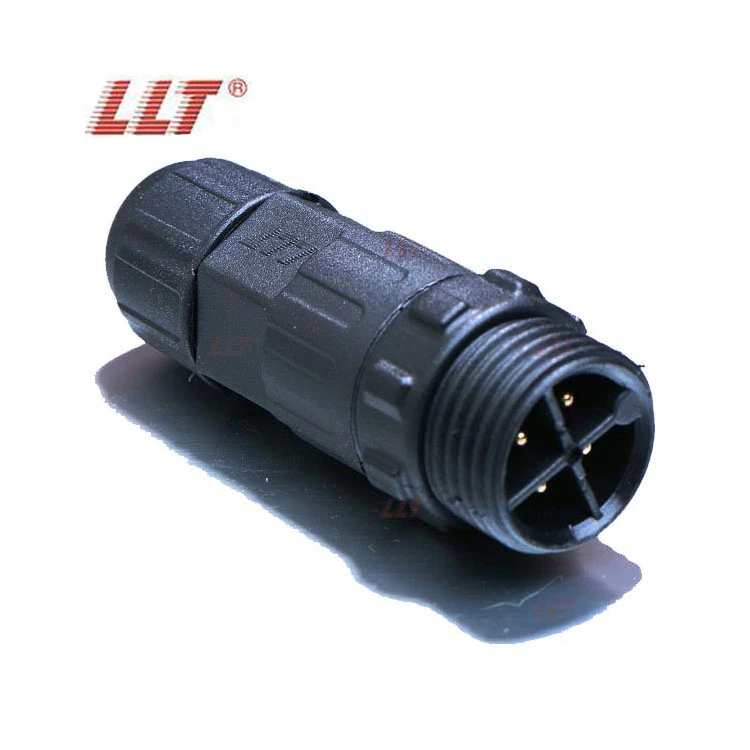

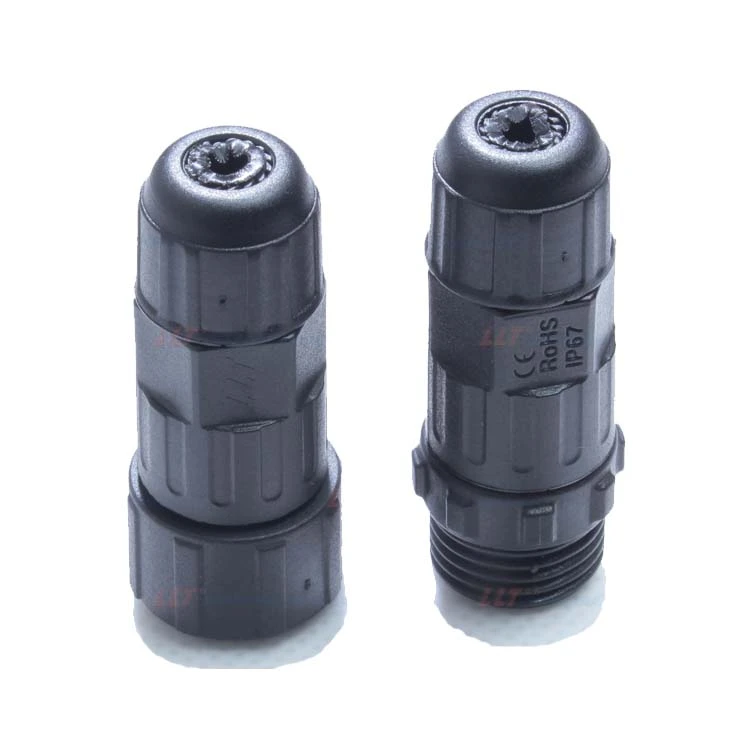

LLT M16 4 Poles Waterproof Male Female Connector Plastic Circular Connectors
The M16 Waterproof Aviation Connector provides a secure, industrial-grade seal for power connections. Designed for ease of use, the solderless screw terminal design allows you to create professional-grade, weatherproof connections in minutes, saving significant time during field installations and repairs. M16 robust connector set is built for performance and longevity. It features a high-strength PA66 Nylon shell and gold-plated brass hardware to ensure optimal signal and power transmission. With an IP68 waterproof rating and a wide operating temperature range of -40°C to 105°C, it is the perfect solution for outdoor LED lighting, Agricultural Grow Lights,marine electronics, and industrial automation systems. Voltage/Current: 250V / 15A for 2-4Pin,100V 5A for multi Pin Pin Configuration: 2-12Pin (Male/Female set) Materials: PA/Nylon Housing, Gold-Plated Brass Pins Interface: AC/DC Compatible Cable Range: Φ5.5mm to Φ8.5mm
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 8.5mm
Pin
2-12 Pin
IP Rating
IP68
Rated Current
15A
Rated Voltage
250V
Product Series
M16
Wiring Type
Soldering or screw fixed
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Outdoor automation modules, lighting systems, and distributed control boxes
- Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 15A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M16 4 Poles Waterproof Male Female Connector Plastic Circular Connectors?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M16 4 Poles Waterproof Male Female Connector Plastic Circular Connectors?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
