LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector

Name: LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M25-35002F3054

Waterproof Circular Connectors M25 Threaded Model: LLT-M25-35002F3054

M25 / Threaded LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M25-2 pin molded cable thread lock cable connector can get IP65/ IP67 waterproof protection . under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened. It can be used in harsh environment It is very convenient to assemble . The male mate female through thread lock . It can mold the outer diameter less than 15mm PVC ,Ruber cable .We can produce it with customized cable length following different requirement . Our factory specilize in this field around twenty five years ,we rank in the top manufacturer .We Own full sets certificate ,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market ;We can provide competitive price ;Support ODM,OEM ,customized design;100% quality guarantee ,12 months warranty ;Reliable after-sales service ,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

Outdoor automation modules, lighting systems, and distributed control boxes
Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
Projects targeting IP65/IP67 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 35A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M25 to M45 Large Power-Signal Connectors Reference for larger shell sizes and complex power-signal combinations.

Visual Gallery

Product details, interface geometry, and cable integration views

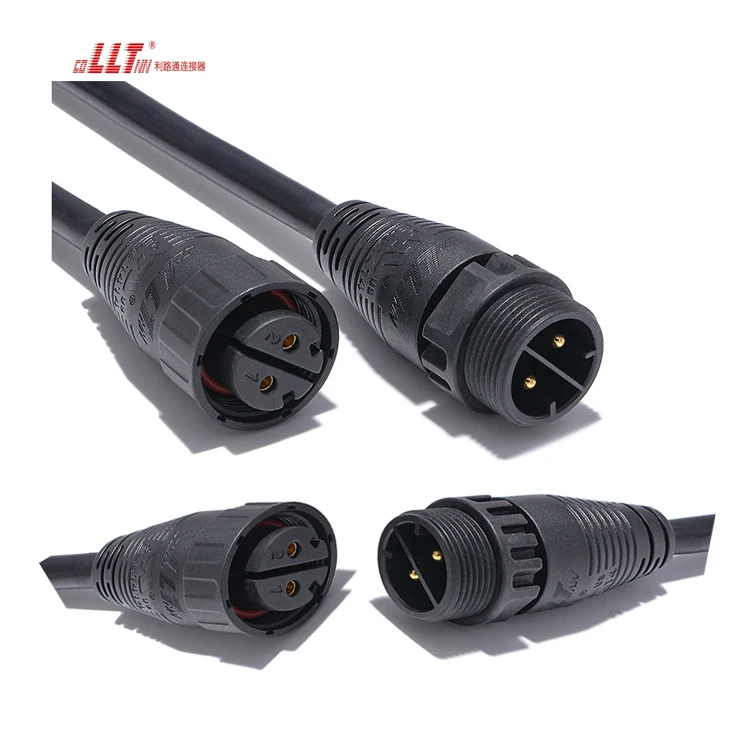

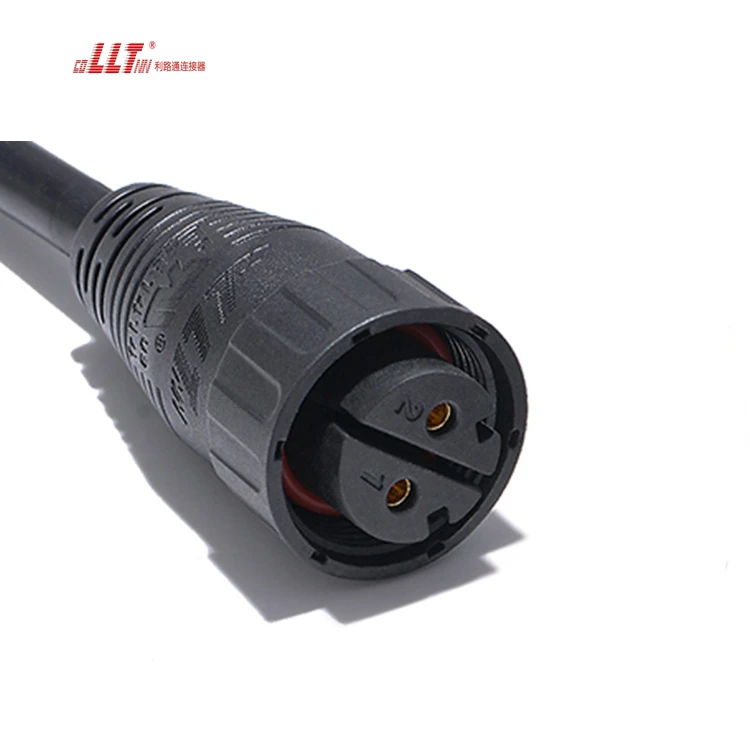

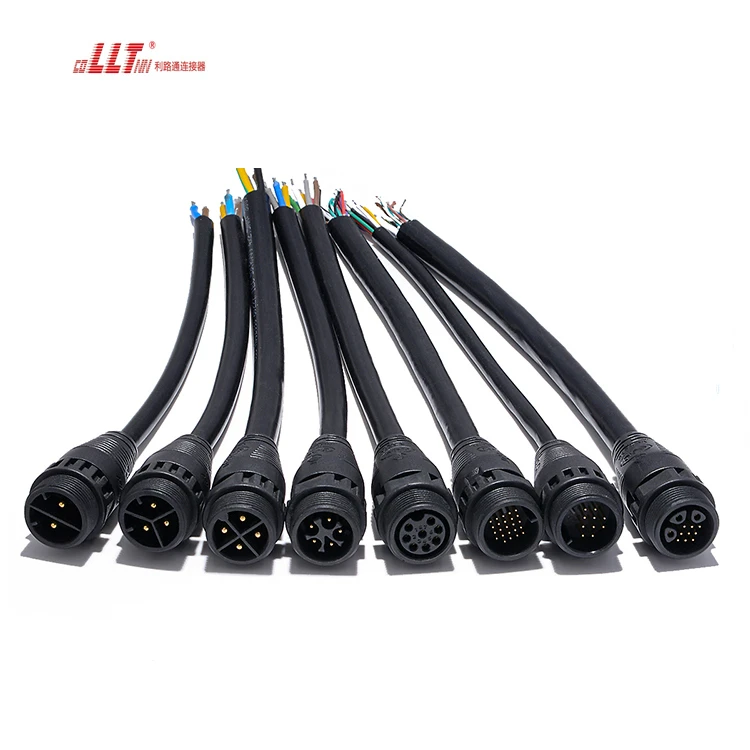

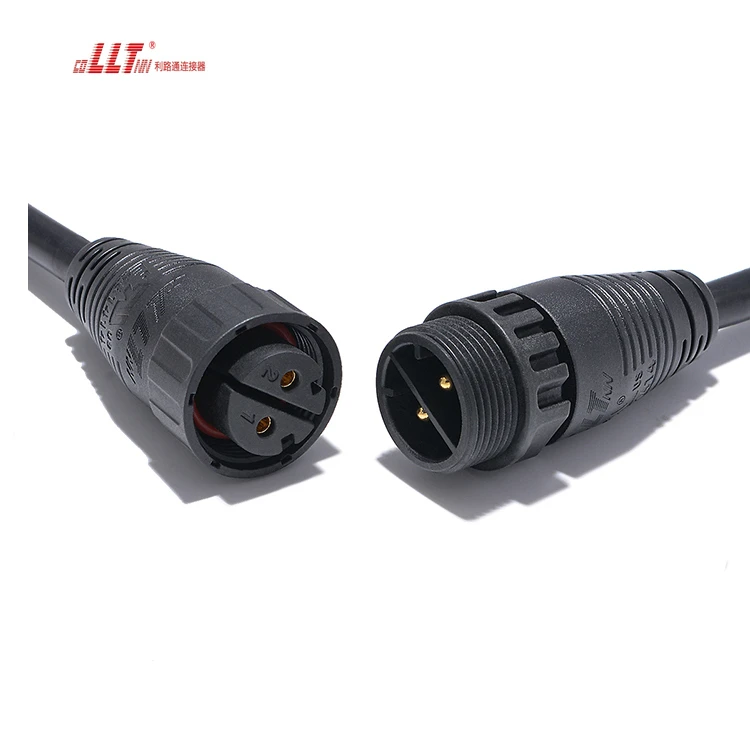

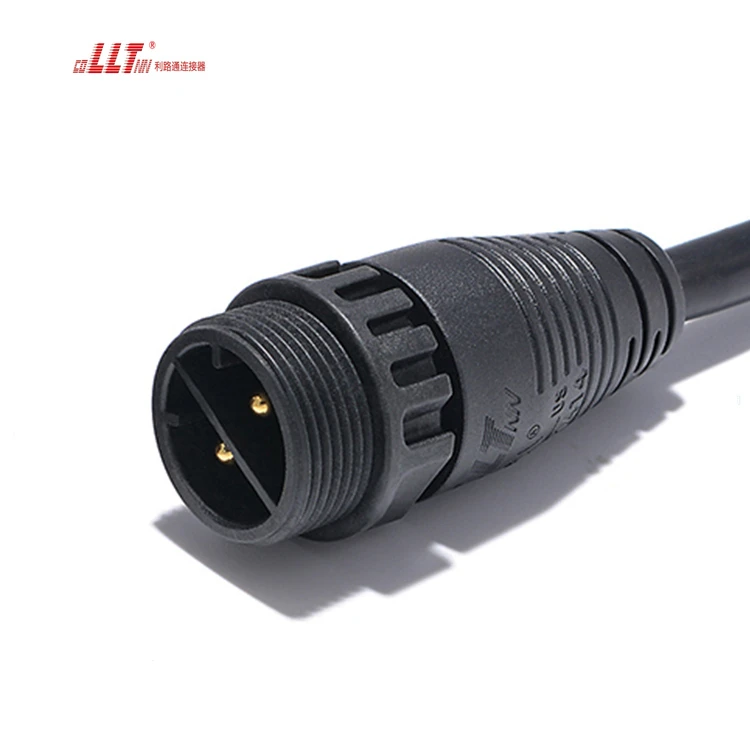

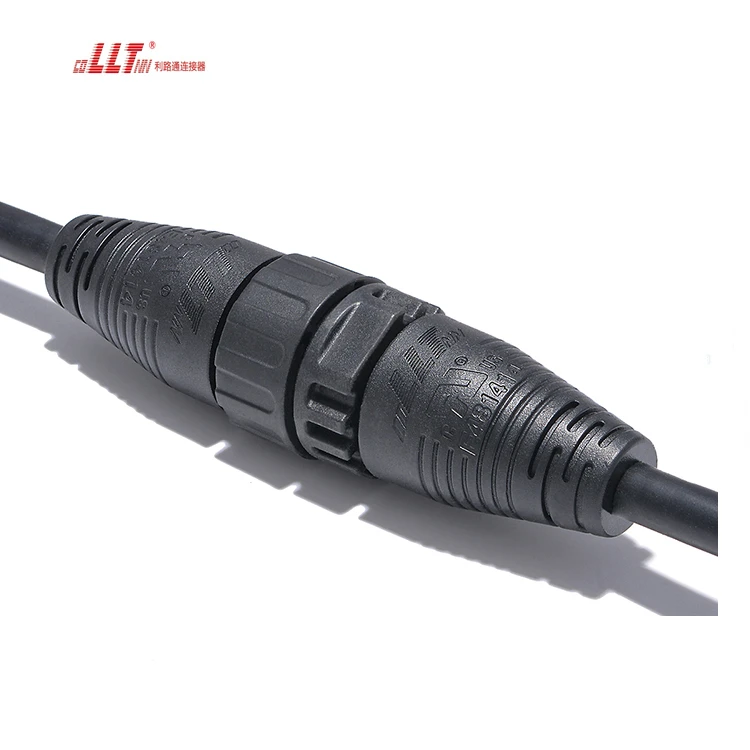

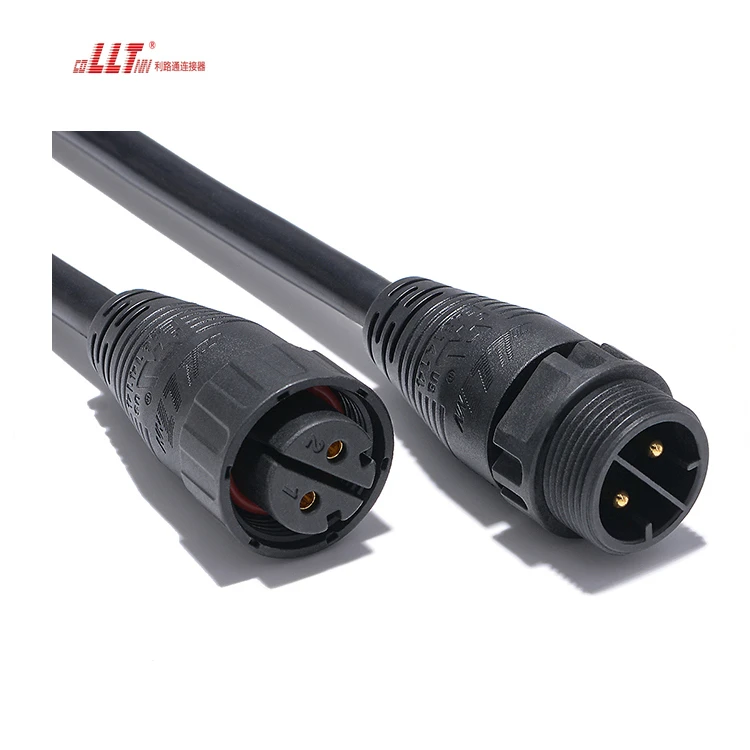

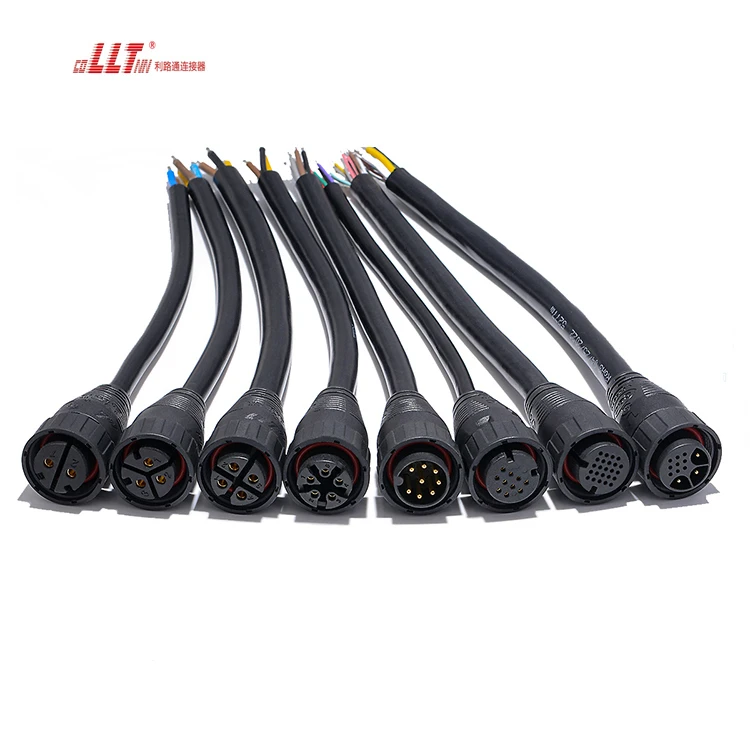

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 1

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 2

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 3

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 4

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 5

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 6

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 7

LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector gallery image 8

Compare nearby references in this family

Related Families

Move up to adjacent category pages

20A Waterproof Connectors 11 published products 10A Waterproof Connectors 10 published products High Current Waterproof Connectors 10 published products Multi Pin Connectors Waterproof 9 published products

Technical FAQ

What should be confirmed before selecting LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 35A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M25 Power Male Female Waterproof Led Cable 2pin Plug Watertight Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
