IP67 Waterproof M16 Straight Male Female Plug 12pin Circular Signal Connectors PVC 24 AWG Wire Black Color

Name: IP67 Waterproof M16 Straight Male Female Plug 12pin Circular Signal Connectors PVC 24 AWG Wire Black Color
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M16-05012F3034

Waterproof Data Connector M16 Push-Lock Model: LLT-M16-05012F3034

M16 / Push-Lock IP67 Waterproof M16 Straight Male Female Plug 12pin Circular Signal Connectors PVC 24 AWG Wire Black Color

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M16-12pin molded cable connector can get IP65/ IP67 waterproof protection . under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened. It is very convenient to assemble . The male mate female through push lock . It can mold the outer diameter less than 9mm PVC ,Ruber cable .We can produce it with customized cable length following different requirement . Our factory specilize in this field around twenty five years ,we rank in the top manufacturer .We Own full sets certificate ,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market ;We can provide competitive price ;Support ODM,OEM ,customized design;100% quality guarantee ,12 months warranty ;Reliable after-sales service ,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

Industrial Ethernet links in outdoor or washdown-prone equipment
Control cabinets, gateways, and monitoring nodes that need ingress protection
Projects targeting IP65/IP67 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 5A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M16 to M22 Medium Connector Range Published range for medium-size circular connector configurations.

Visual Gallery

Product details, interface geometry, and cable integration views

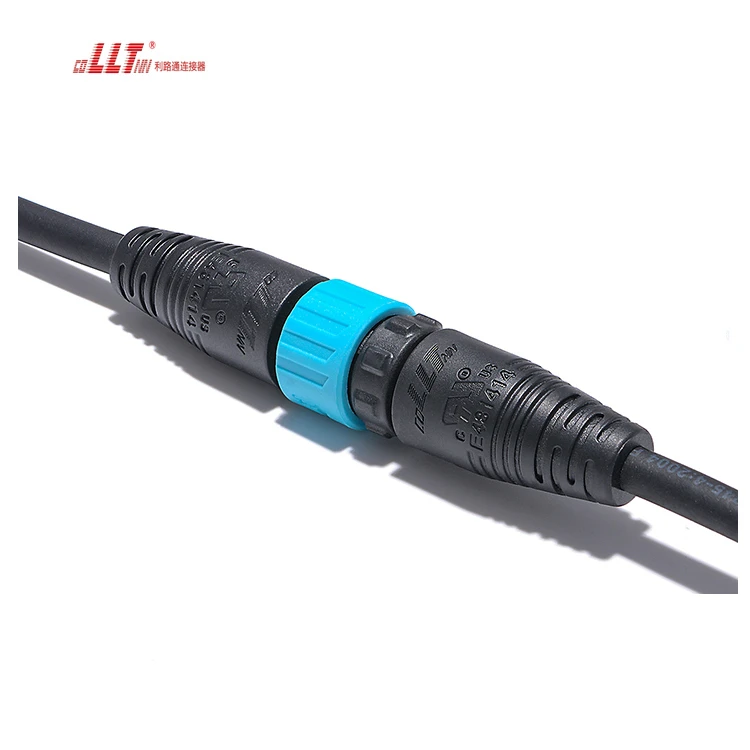

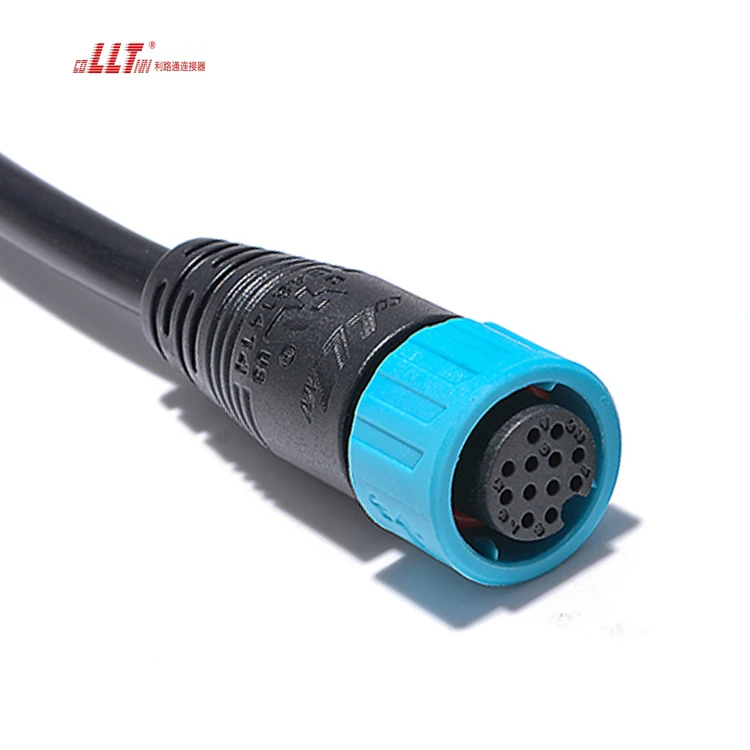

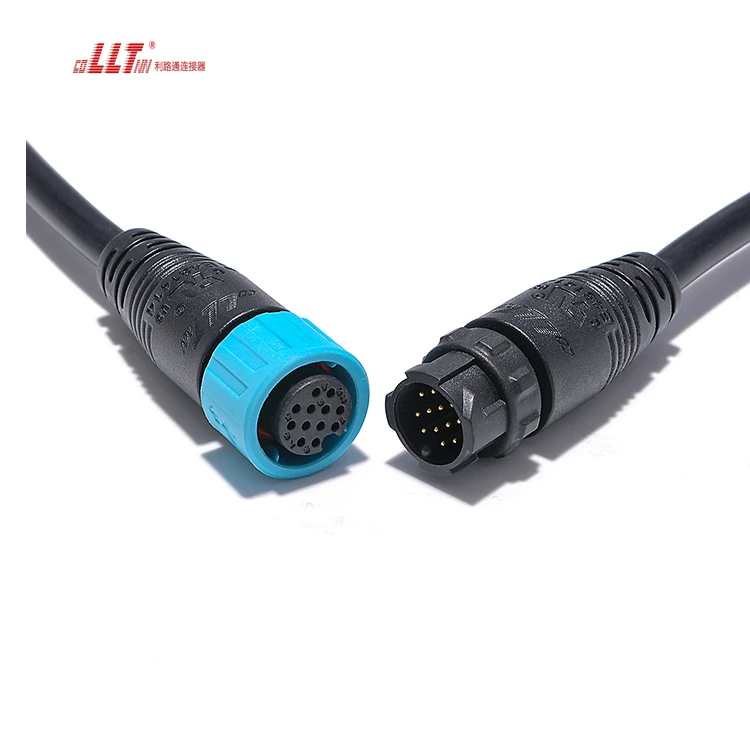

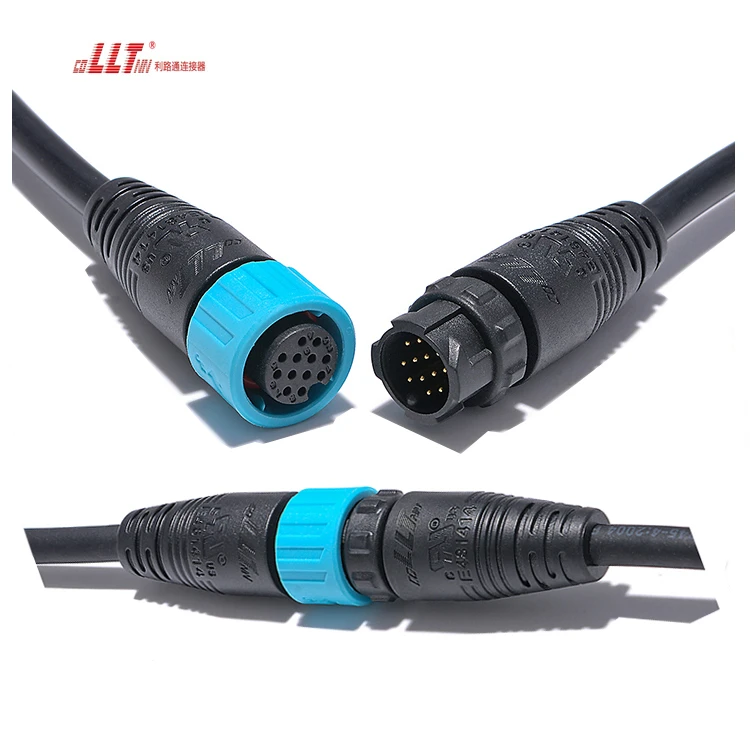

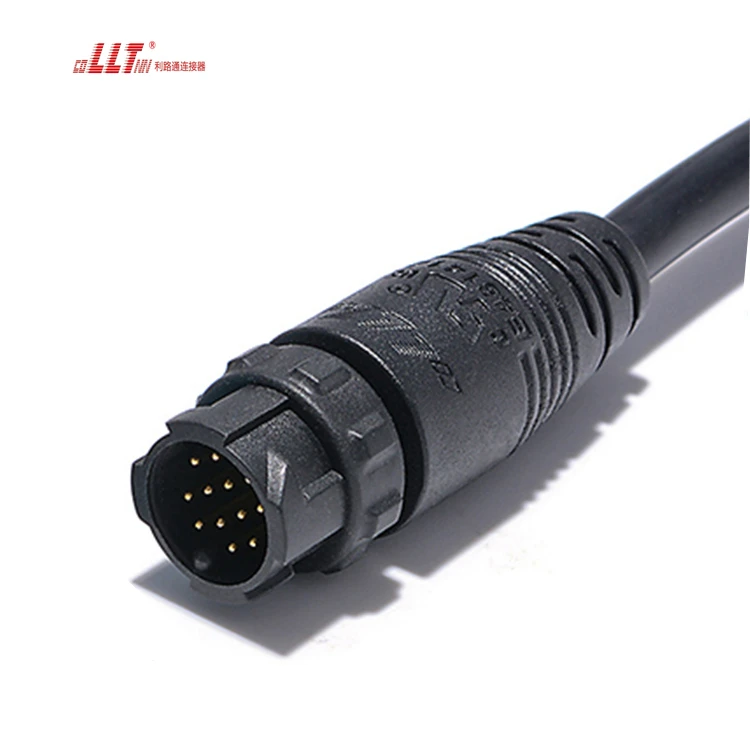

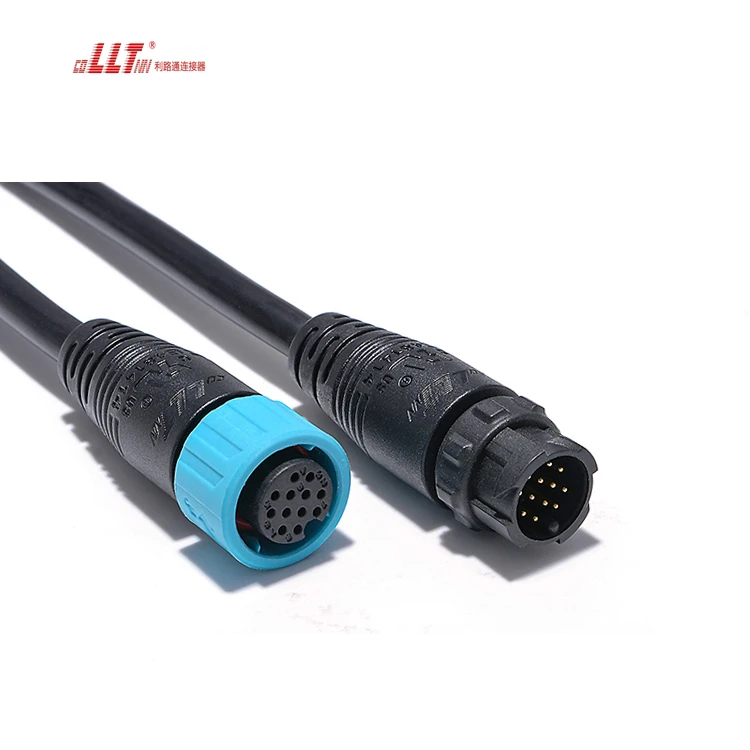

IP67 Waterproof M16 Straight Male Female Plug 12pin Circular Signal Connectors PVC 24 AWG Wire Black Color gallery image 1
