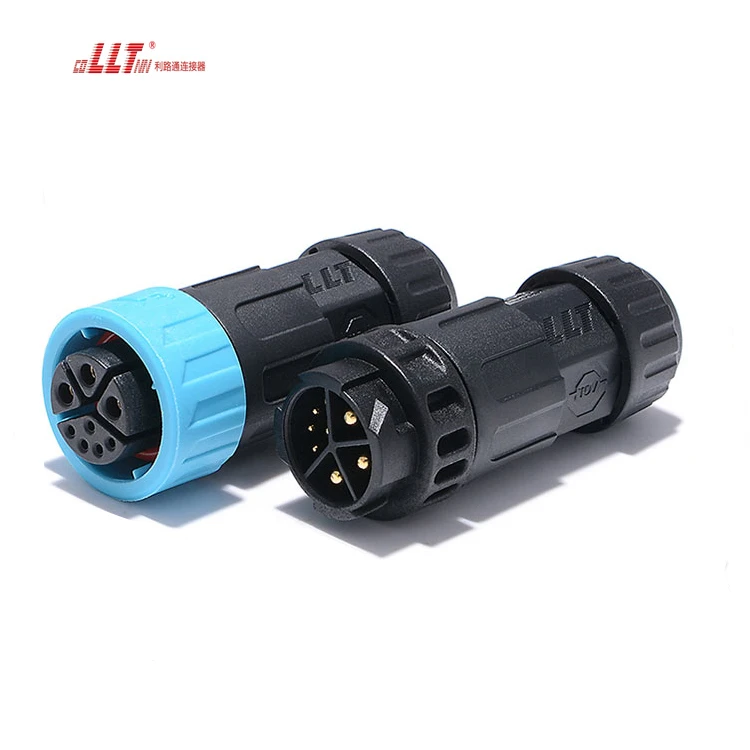

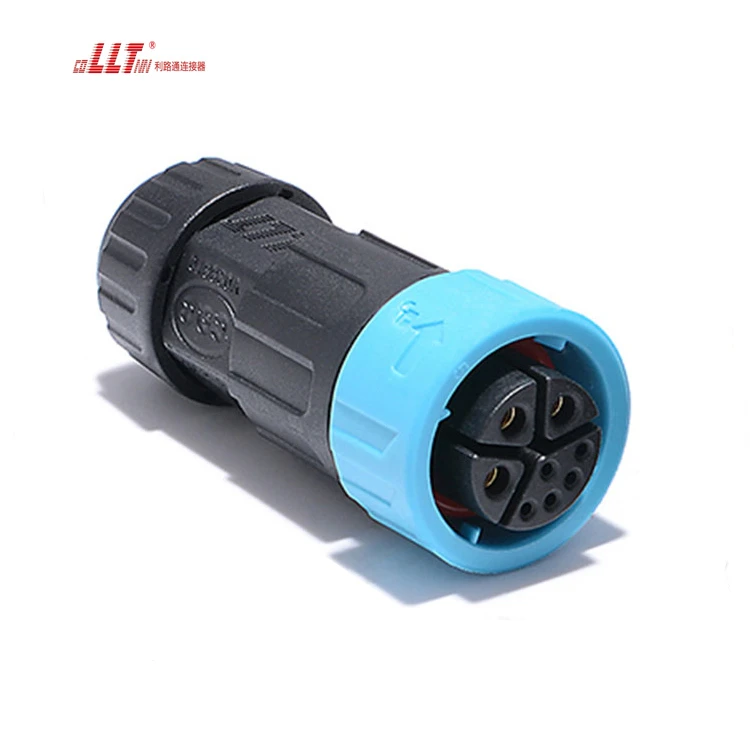

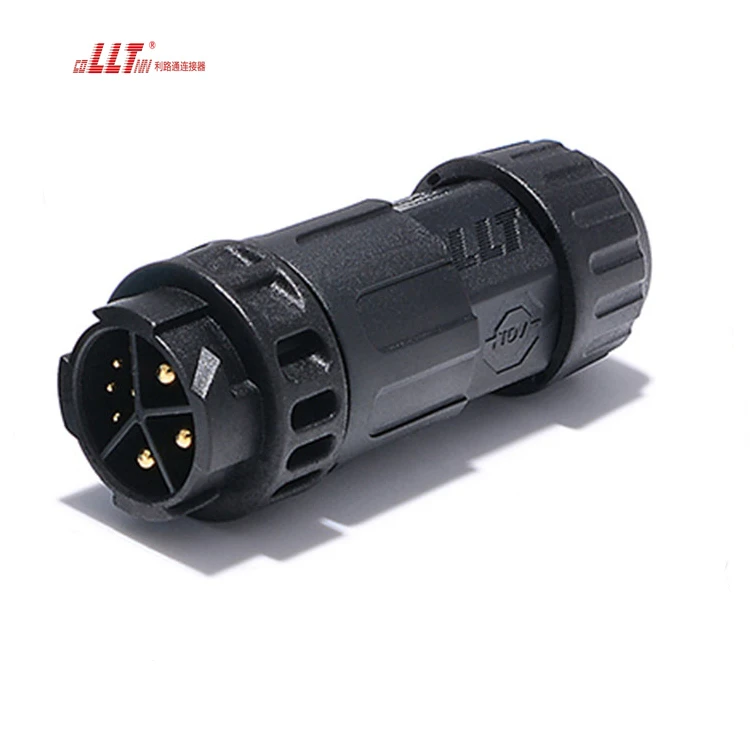

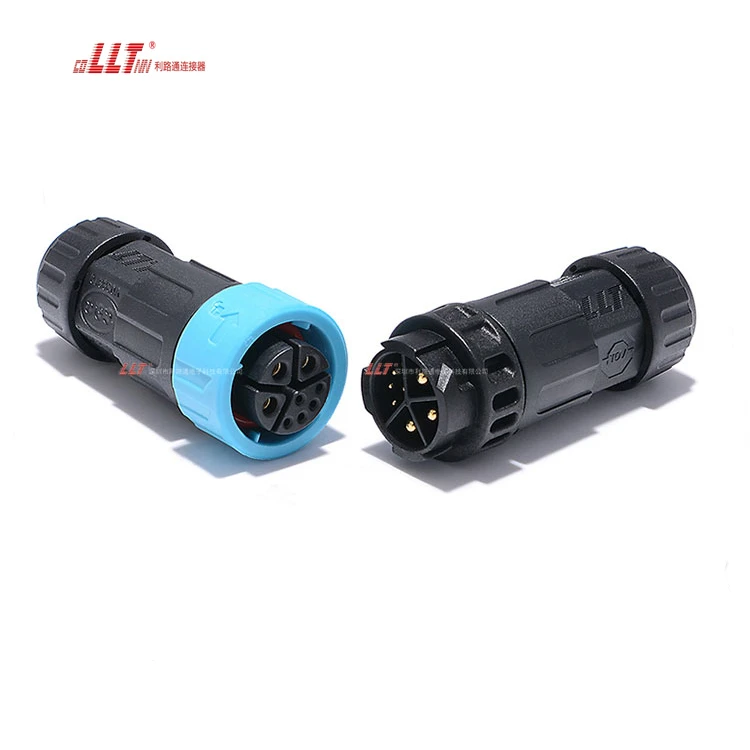

LLT Power and signal 3+5pin Electrical Push Lock IP68 Waterproof Wire Connector
M19 / Push-Lock
Get My Contact
Click to reveal the dedicated contact linked to this product page.
Publisher: TonyTang
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M19
Pin
3+5 pin
IP Rating
IP67/IP68
Rated Current
20A+5A
Rated Voltage
300V+110V
Product Series
M19
Wiring Type
Soldering
Interface Type
Push lock
Mating Cycles
>=3000 times
Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Product Overview
Connector application and structure details
This M19 3+5pin field assembly connector can get IP67/IP68 waterproof protection . under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened.

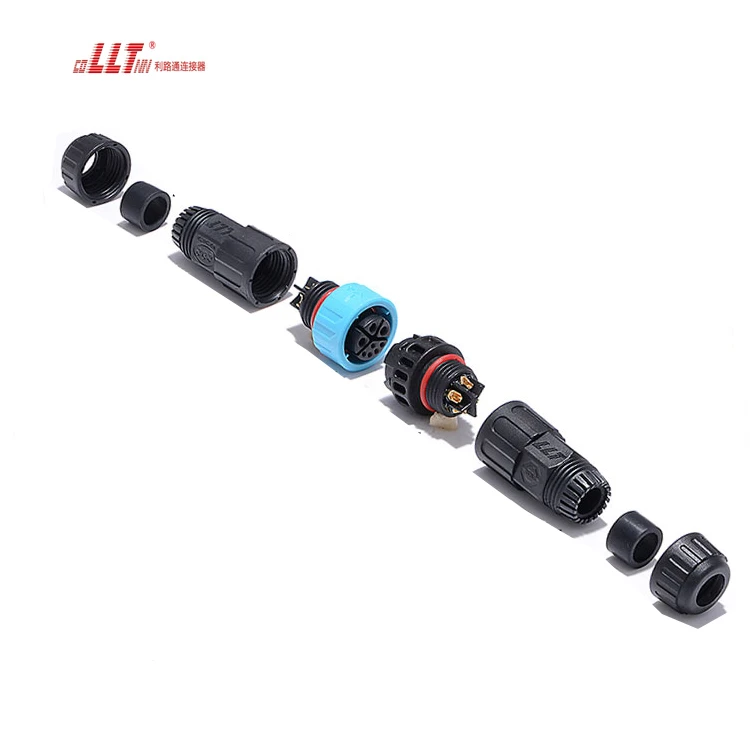

It is very convenient to assemble . The male mate female through thread lock . attach cable by solder .We have 4.2/6.3/7.8/8.5/9/10/11mm grommet can fit your different diameter cable .
Our factory specilize in this field around twenty five years ,we rank in the top manufacturer .We Own full sets certificate ,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market ;We can provide competitive price ;Support ODM,OEM ,customized design;100% quality guarantee ,12 months warranty ;Reliable after-sales service ,salesman 24 hours on line to solve your question
Visual Gallery
Product details, interface geometry, and cable integration views
