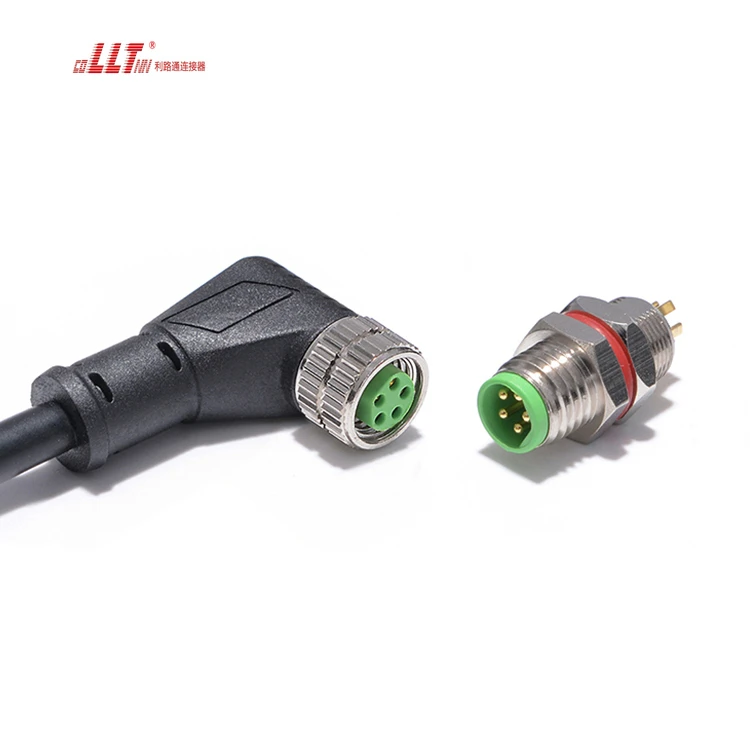

LLT M8 5pin AC DC Female Male Right Angle Electrical signal Cable Connector

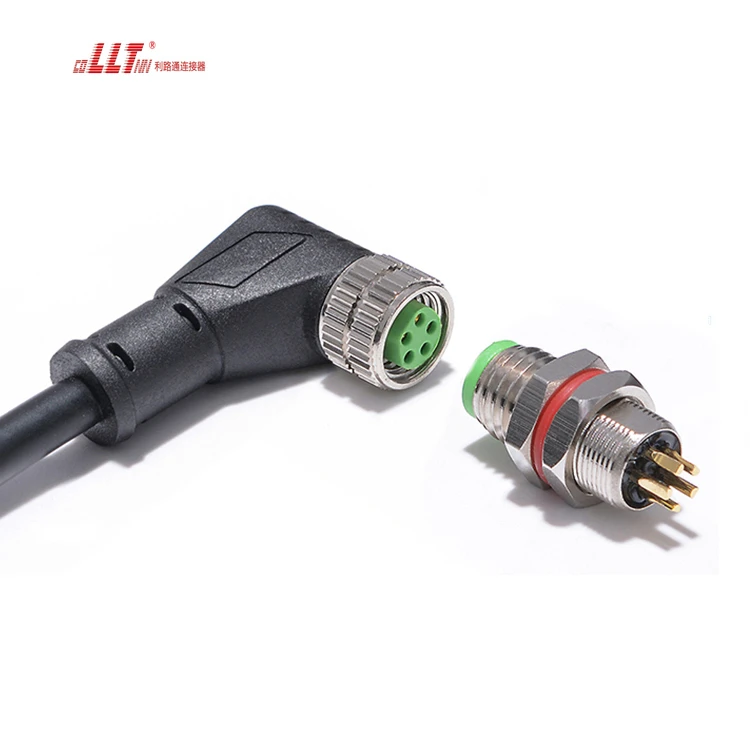

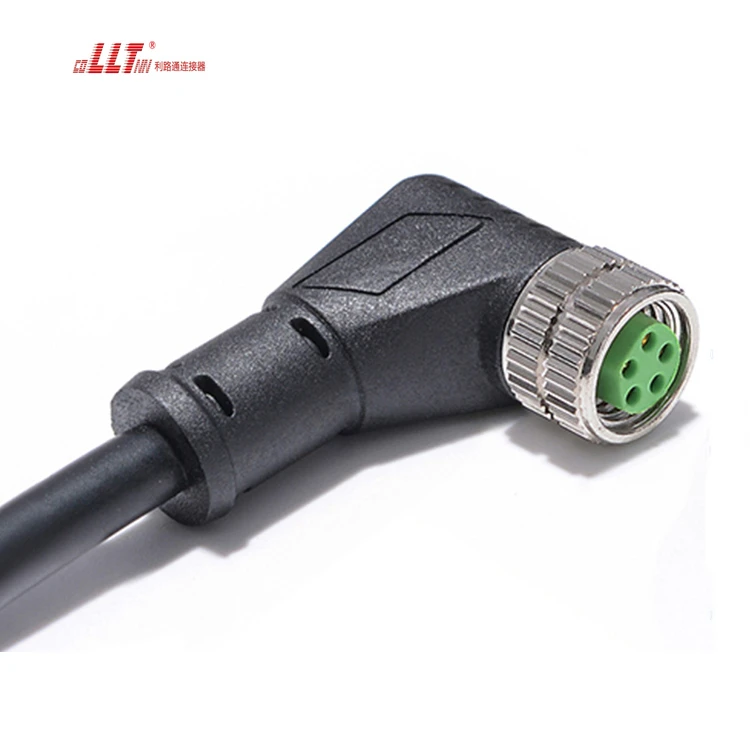

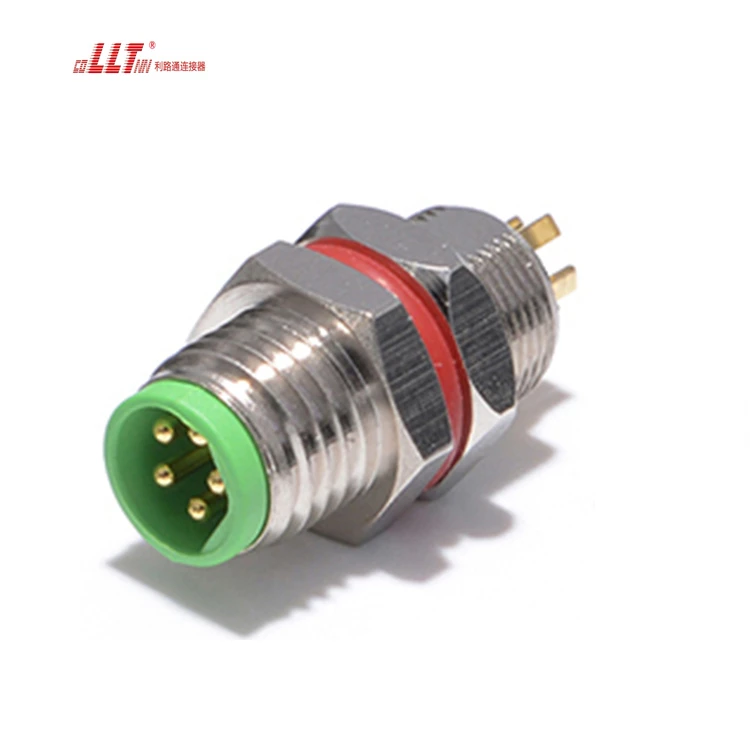

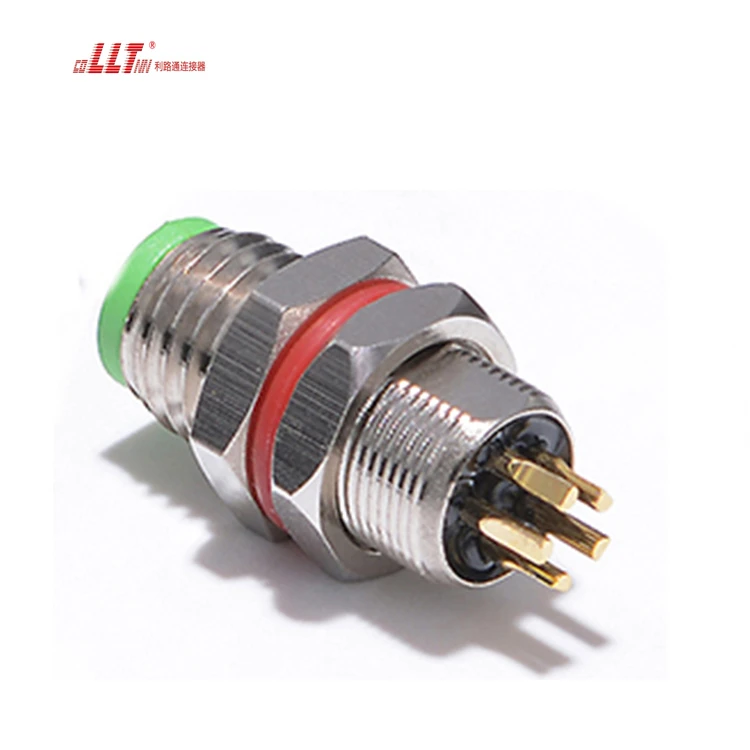

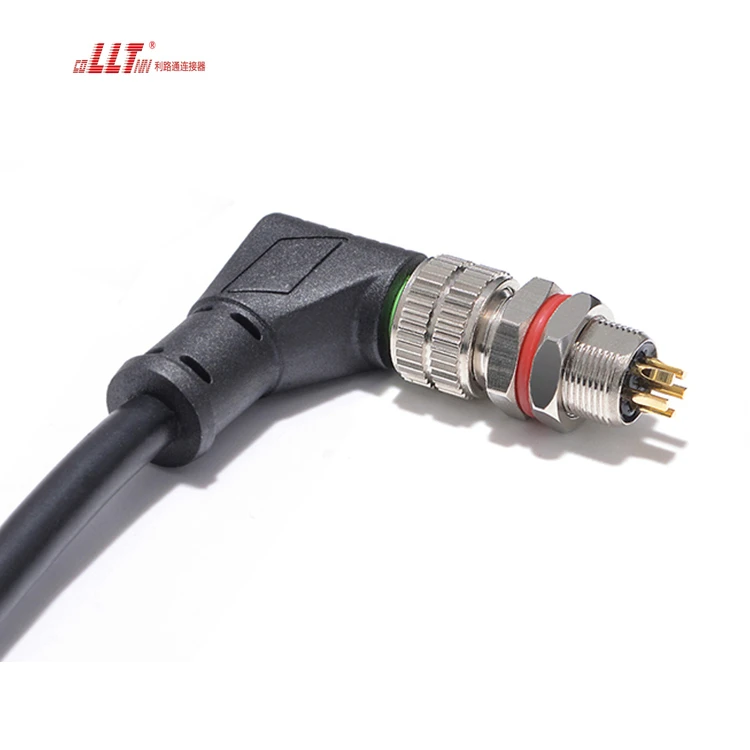

M8‑5Pin Right Angle Panel Cable Connector 1. Product Overview This M8‑5Pin right‑angle panel cable connector is circular industrial sensor connector with 90‑degree angled cable outlet, integrated with over‑molded cable for front‑side panel‑mount installation. The L‑shaped cable exit optimizes internal equipment layout and avoids sharp‑angle wire‑bending stress. Equipped with screw‑locking structure and IP67 sealing performance, it provides stable multi‑signal transmission for compact automation devices and measuring instruments under harsh industrial environments. 2. General Specifications • Product Model: M8‑5Pin B‑code Right Angle Panel Cable Connector • Connector Type: Right‑angle male panel‑mount cable socket • Mounting Method: rear panel mount • Locking Mechanism: Screw locking • Number of Contacts: 5‑pin • Reference Standard: IEC 61076‑2‑104 3. Electrical Characteristics • Rated Current: 5A per pin (25℃) • Rated Voltage: 60V AC DC • Withstand Voltage: 1000V AC, 60s • Insulation Resistance: ≥1000 MΩ • Contact Resistance: ≤5 mΩ • Application: Multi‑channel sensor signal & low‑voltage data transmission 4. Mechanical Properties • Coupling Nut Material: Nickel‑plated brass (metal) • Contact Material: Copper alloy, gold‑plated • Insulator Material: High‑temperature resistant PA66 • Sealing Material: O‑ring • Cable Jacket: PUR / PVC (optional) • Cable OD: Φ3.8‑6mm • Mating Cycles: ≥2000 times • Vibration Resistance: Compliant with IEC 60512‑6 5. Environmental Performance • Ingress Protection: IP67 (fully mated and locked condition) • Operating Temperature: ‑40℃ ~ +105℃ • Storage Temperature: ‑45℃ ~ +110℃ • Relative Humidity: 5%‑95% RH, non‑condensing • Pollution Degree: Level 3 6. Standard Pin Assignment • Pin 1: Channel 1 • Pin 2: Channel 2 • Pin 3: GND • Pin 4: Channel 3 • Pin 5: Channel 4 7. Key Features 1. 90° right‑angle cable outlet, saves internal installation space for compact equipment 2. Nickel‑plated brass metal lock‑nut, high mechanical strength, anti‑corrosion and vibration‑resistant 3. Integrated over‑molded cable‑connector structure, stable waterproof transition4. Front‑panel mounting design, fast assembly on equipment casing 4. Rear‑panel mounting design, fast assembly on equipment casing 5. Screw‑locking design prevents loose connection under continuous vibration 6. Gold‑plated contacts for stable conductivity and anti‑oxidation 7. IP67 waterproof & dustproof, suitable for wet, dusty industrial sites 8. Compact dimension for miniature sensors and multi‑signal control modules • Custom Service: Cable length, cable material, wire gauge, pin‑out definition and laser‑marked logo are available upon request Note: Above parameters are typical industry‑standard values, can be revised according to actual test data of your products.
