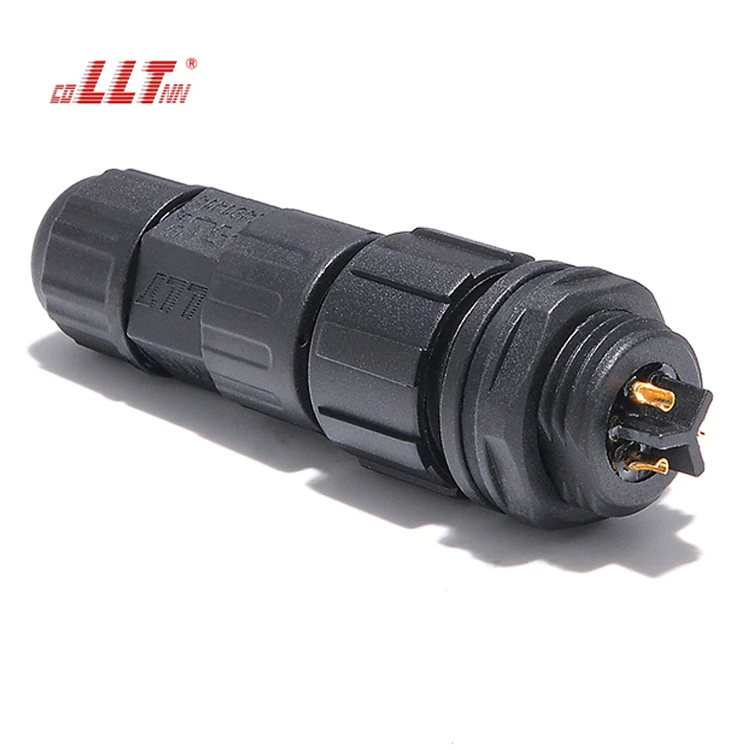

LLT M16 250V 15A 3 Pin Thread Lock IP67 Rated Waterproof Rear Panel Mount Connector
Waterproof Design: IP68 rated for use in wet environments. Secure Fit: Designed for reliable connections in demanding industrial applications. High Durability:Built to withstand harsh conditions and heavy use. Copper Connectors:Ensures robust electrical performance and longevity. Round Shape: Optimized for compact installation and easy handling.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 8.5mm
Pin
2-12
IP Rating
IP68
Rated Current
15A
Rated Voltage
250V
Product Series
M16
Wiring Type
Soldering or screw fixed
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Control cabinets and equipment housings that require front-to-rear sealed interfaces
- Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 15A current requirements.
Technical Resources
Catalog and supporting references

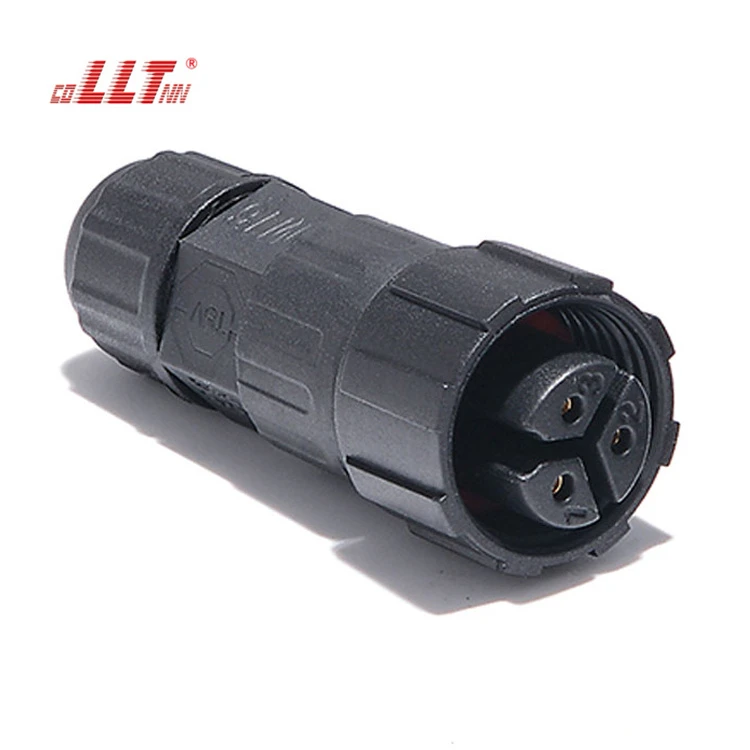

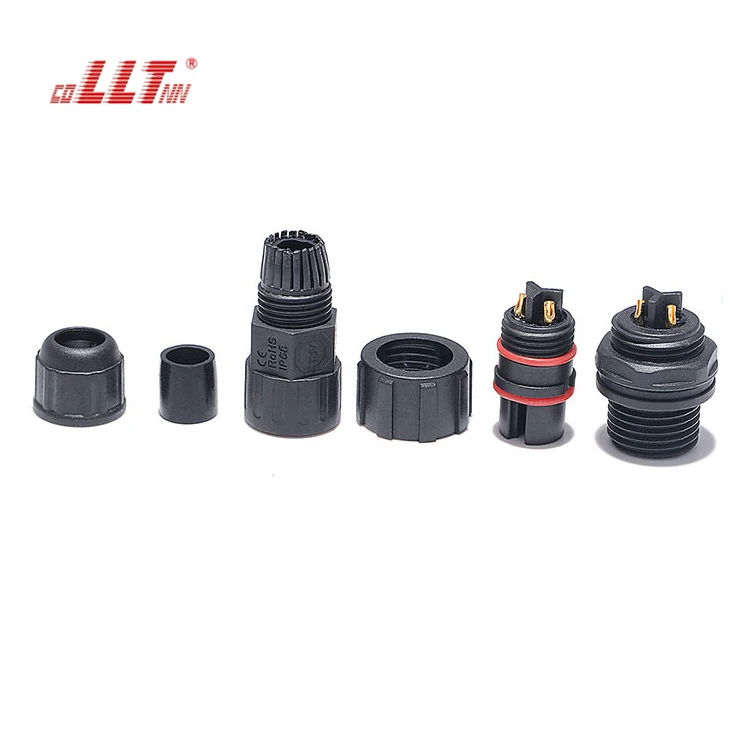

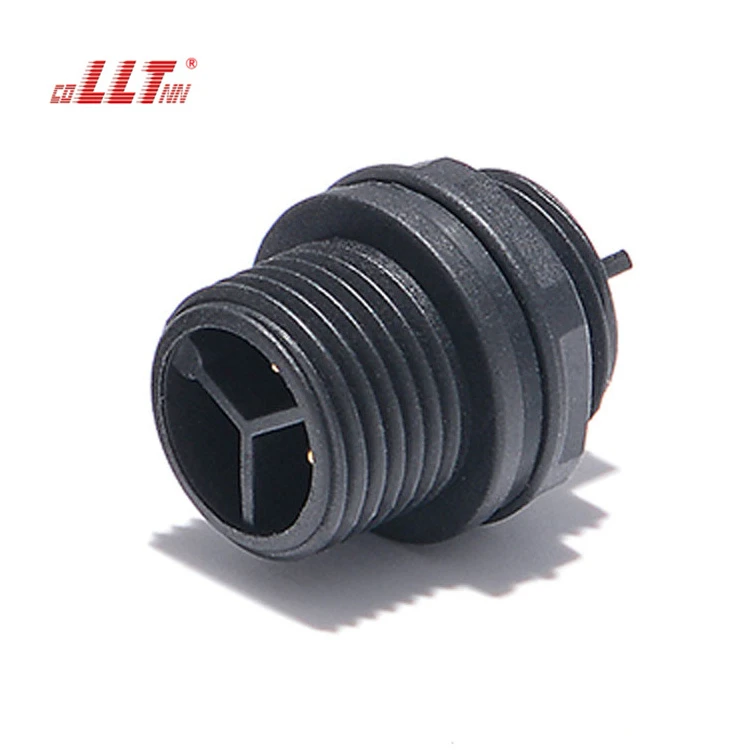

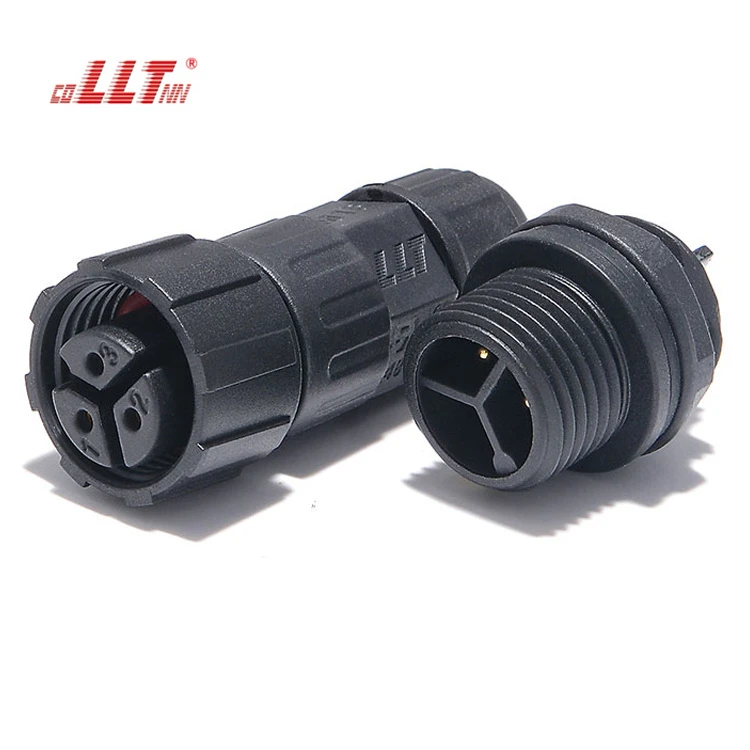

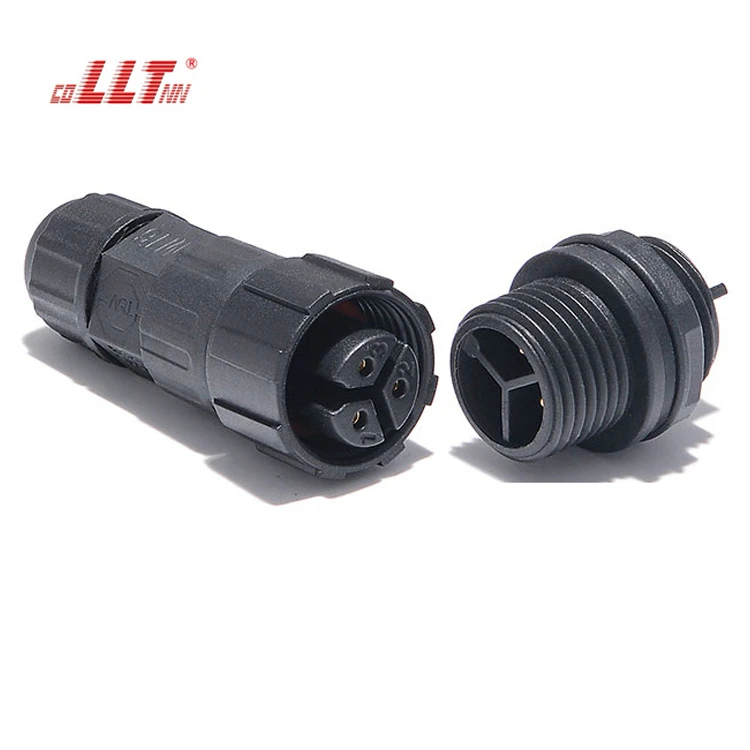

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M16 250V 15A 3 Pin Thread Lock IP67 Rated Waterproof Rear Panel Mount Connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M16 250V 15A 3 Pin Thread Lock IP67 Rated Waterproof Rear Panel Mount Connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
