LLT 2pin M16 rear female panel screw terminal wire assembly Led connector

Name: LLT 2pin M16 rear female panel screw terminal wire assembly Led connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M16-15002F2962

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector is a published reference for control cabinets and machine enclosures requiring front-to-rear sealed interfaces. The visible configuration highlights sealing around IP67/IP68, 15A current range, 2pin pin layout, 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface. Termination direction is screw, which should be checked against the actual harness build.

Waterproof Power Connector M16 Threaded Model: LLT-M16-15002F2962

M16 / Threaded LLT 2pin M16 rear female panel screw terminal wire assembly Led connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This LLT M16‑2‑pin female rear‑mount panel connector adopts reliable screw‑terminal wiring, enabling fast tool‑aided wire termination without soldering. Designed for rear‑panel installation, it mounts securely through equipment housing. Good dust‑proof & waterproof performance for outdoor, industrial, LED and horticulture‑lighting applications. Robust housing resists vibration and mechanical stress. Ideal for power signal interconnection between cabinet panel and external cables. M16‑2pin Female Rear‑Panel Screw Terminal Panel Connector Model: M16‑2pin female rear panel screw‑terminal panel connector • Installation: Rear‑panel mounting (install from inside of enclosure, lock nut fastening from front side) • Termination method: Screw‑terminal connection, no soldering required; convenient cable assembly, easy field maintenance • Pin count: 2‑pin, female • Application scenarios: Industrial control devices, LED grow lights, outdoor lighting, sensor equipment, cabinet power interface • Mechanical feature: M16 thread lock‑nut fixing, stable anti‑vibration connection; rugged plastic housing • Advantage: Rear‑panel structure keeps wiring hidden inside equipment enclosure; screw terminals guarantee stable electrical contact under vibration environment • Note: Match with corresponding M16‑2pin male plug for complete cable‑to‑panel connection solution

Application Fit

Typical application directions

Energy storage cabinets, battery systems, and inverter platforms
Power distribution interfaces in outdoor electrical equipment
Projects targeting IP67/IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 15A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M16 to M22 Medium Connector Range Published range for medium-size circular connector configurations.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector gallery image 1

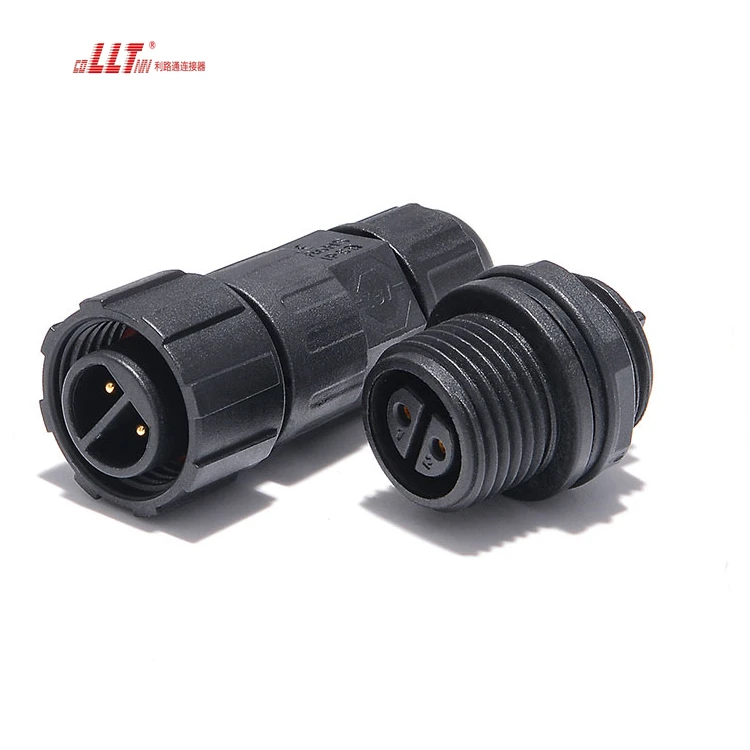

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector gallery image 2

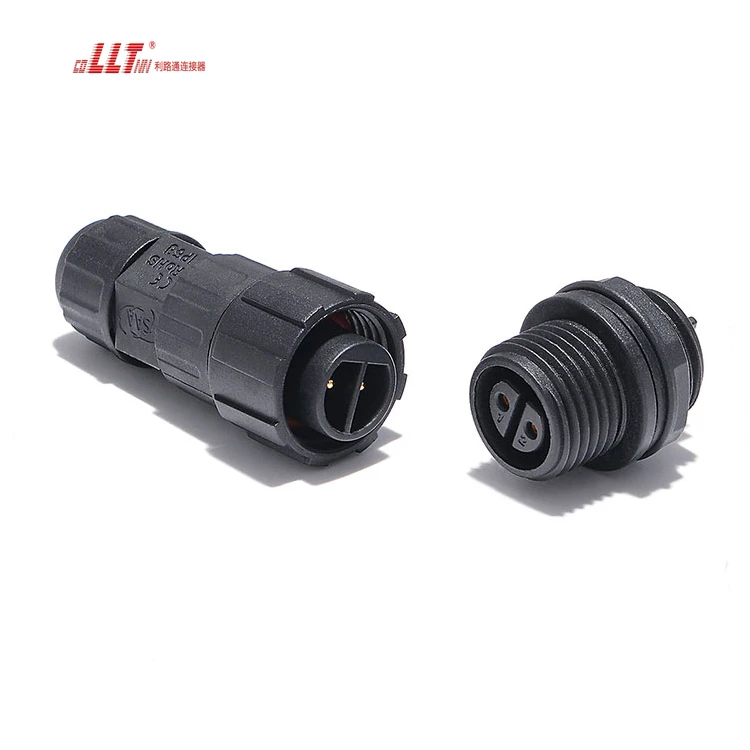

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector gallery image 3

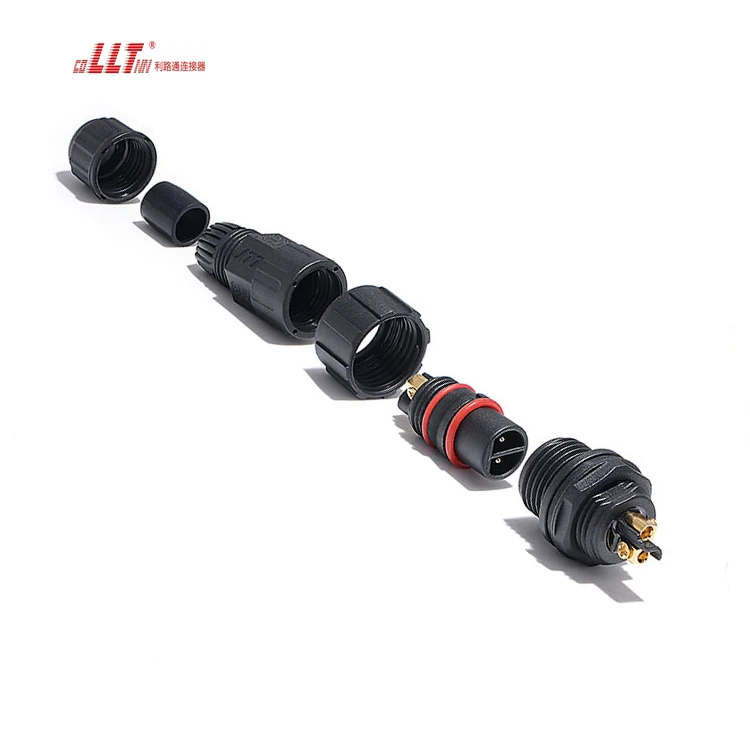

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector gallery image 4

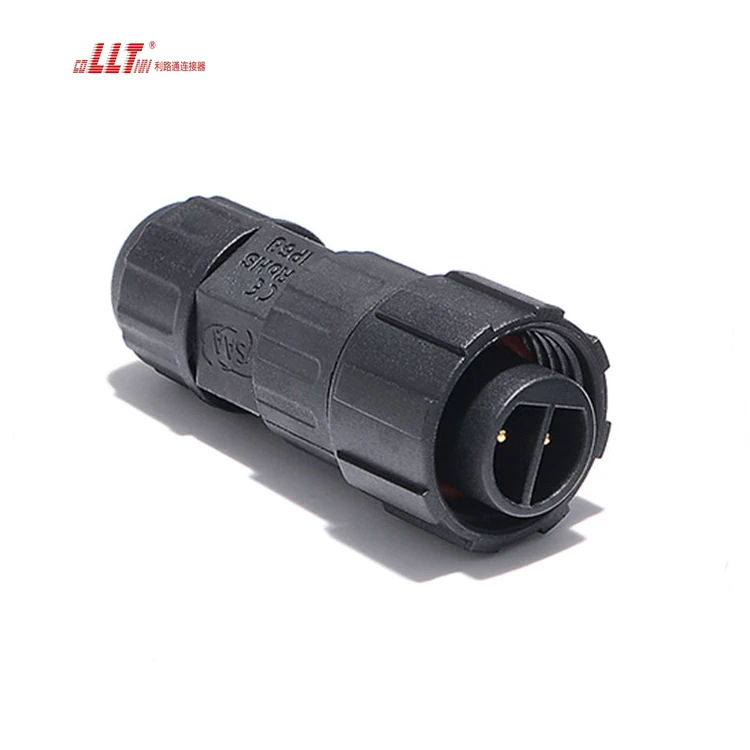

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector gallery image 5

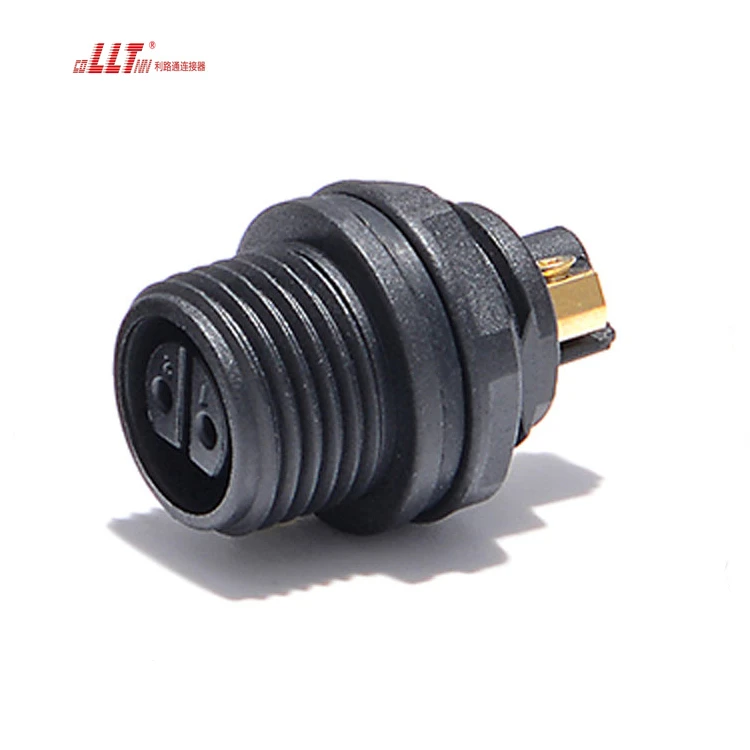

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector gallery image 6

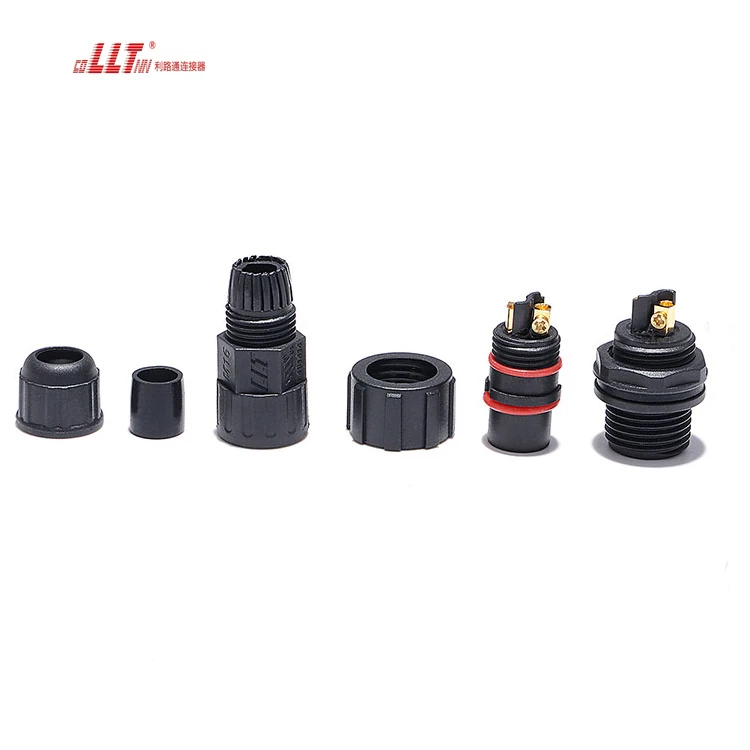

LLT 2pin M16 rear female panel screw terminal wire assembly Led connector gallery image 7

Compare nearby references in this family

Related Families

Move up to adjacent category pages

Power Connector 8 published products High Current Waterproof Connectors 19 published products 20A Waterproof Connectors 12 published products 10A Waterproof Connectors 11 published products

Technical FAQ

What should be confirmed before selecting LLT 2pin M16 rear female panel screw terminal wire assembly Led connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 2pin M16 rear female panel screw terminal wire assembly Led connector is currently configured around 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 2pin M16 rear female panel screw terminal wire assembly Led connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
