LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector

LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 10A current range, 4pin pin layout, 2 to 8pin and 2+2/2+3/2+4pin interface. Termination direction is by solder, which should be checked against the actual harness build.

Docking Connector M12 Threaded Model: LLT-M12-10004F2961
M12 / Threaded LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

Fit max cable OD 5.8mm

Pin

4pin

IP Rating

IP67/IP68

Rated Current

10A

Rated Voltage

110V

Product Series

M12

Wiring Type

by Solder

Interface Type

2 to 8pin and 2+2/2+3/2+4pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M12-4pin female rear panel mount connector can get IP67/IP68 waterproof rate, male connector mate female connector via thread lock.The body matrial is PA66,V-0 fire retardant.Conduct material is plated gold brass.It can burden 10A/110V, This model 2-8pin and 2+2/2+3/2+4pin can be choice, the Work temperature is Minus 25℃ to 105℃. It is widely used in Grow light, LED light,Outdoor light,Signal transmission,Power drive,Illuminating industry and et cetera.We have cooperated with domestic and abroad customer, winning many project,such as Beijing Olympic Game Stadium,Bird's Nest,Water Cube,Bangkok New International Airport,Shanghai World Expo and etc, I wish we can win your project,looking forward to cooperating with you.

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

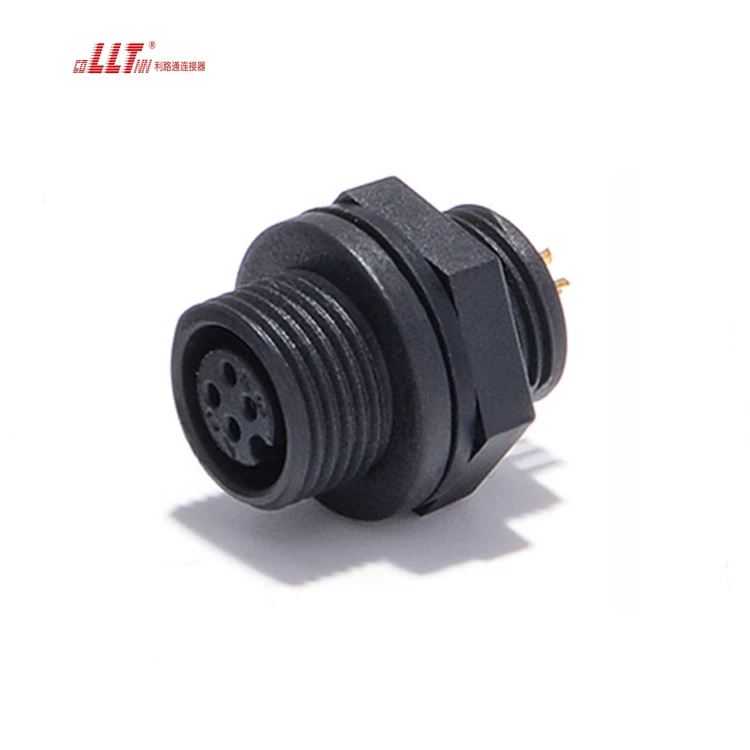

LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector gallery image 1

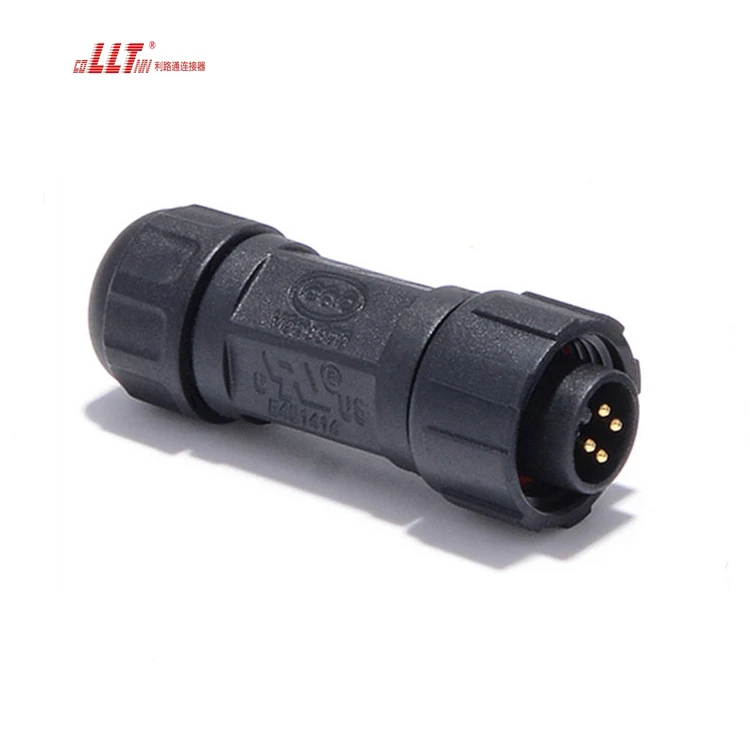

LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector gallery image 2

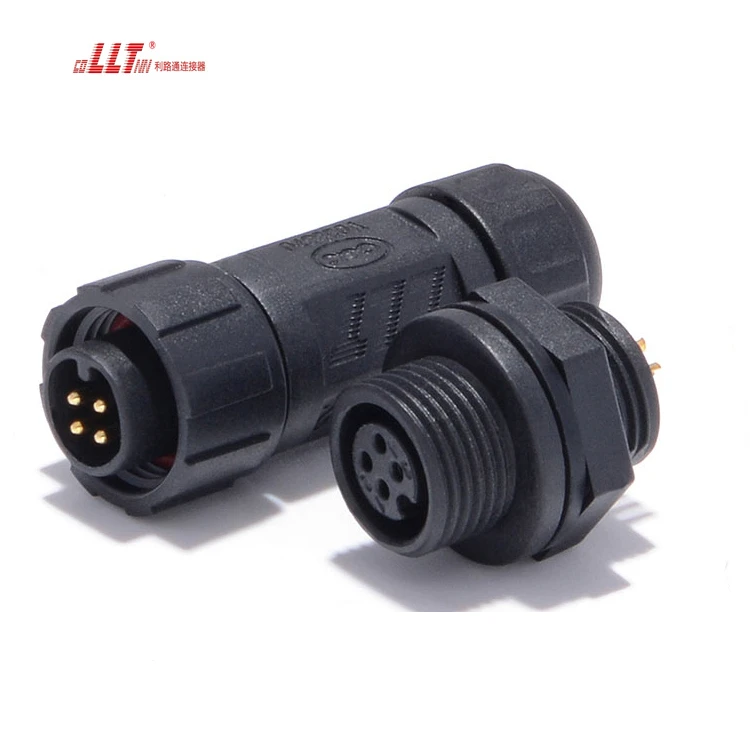

LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector gallery image 3

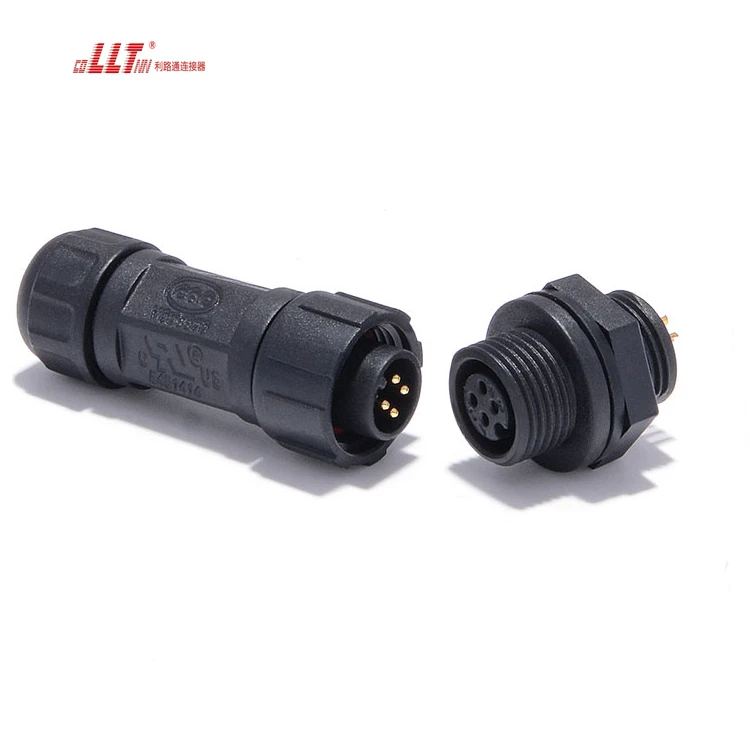

LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector gallery image 4

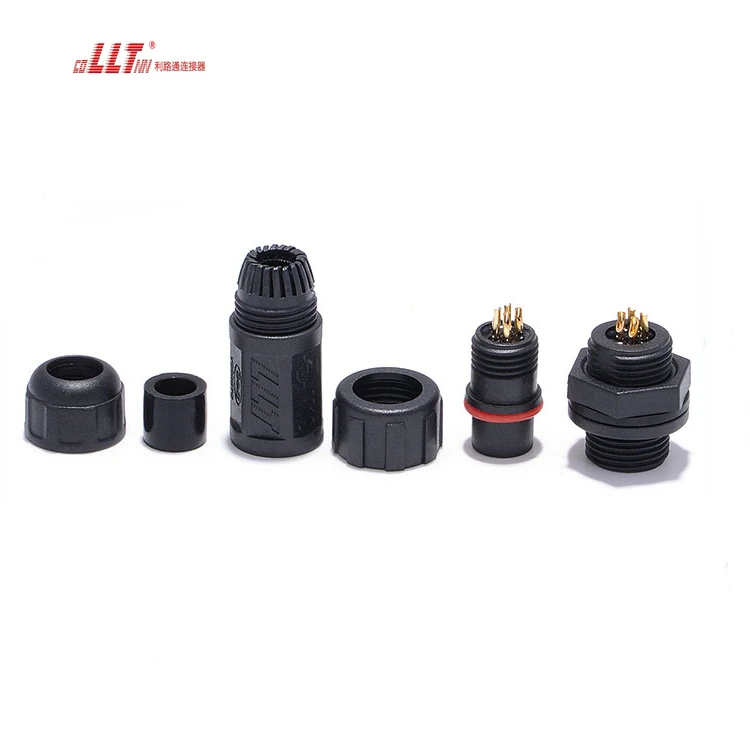

LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector gallery image 5

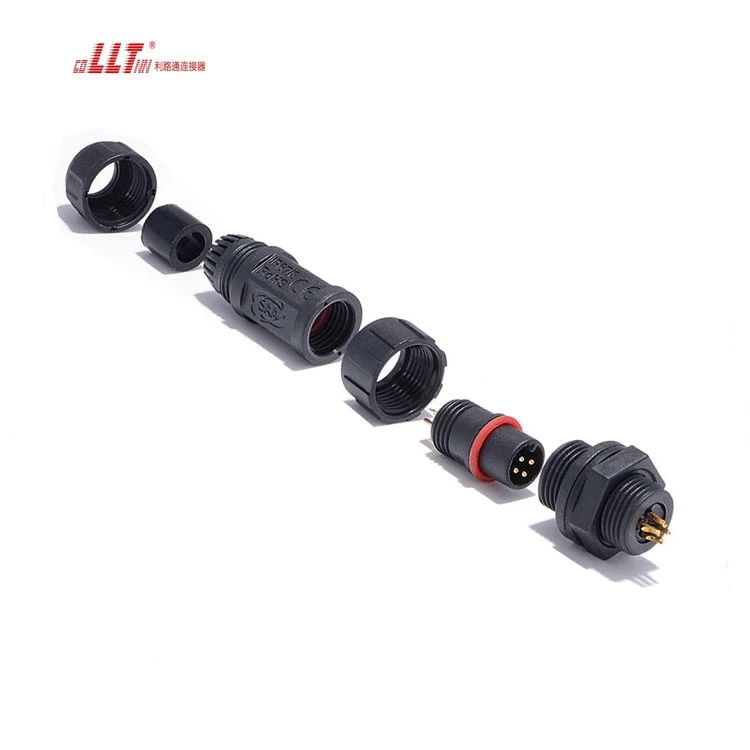

LLT Connector 4pin M12 Electrical Light IP68 Waterproof Power Female Panel Watertight Connector gallery image 6
