LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector

LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP67/IP68, 15A current range, 4pin pin layout, 2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin interface. Termination direction is soldering, which should be checked against the actual harness build.

Docking Connector M16 Threaded Model: LLT-M16-15004F1051
M16 / Threaded LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

4pin

IP Rating

IP67/IP68

Rated Current

15A

Rated Voltage

300V

Product Series

M16

Wiring Type

Soldering

Interface Type

2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

LLT M16-4pin lighting assembly connector delivers stable power and signal transmission for LED lighting. Featuring IP68 waterproof & dustproof performance, it works reliably from -40°C to +105°C. Adopting threaded locking design it resists vibration, oxidation and corrosion. The M16-4pin circular connector is a perfect match for lighting assemblies. wide temperature tolerance and excellent electrical conductivity, it ensures long-term stable operation in harsh outdoor environments.Made of high-quality flame-retardant housing and gold-plated contacts.With 300V/15A rating, this durable connector fully meets CE and RoHS standards, ideal for street lights, landscape lights, industrial and outdoor lighting systems.

Application Fit

Typical application directions

  • Cable-to-cable transitions in outdoor and industrial equipment
  • Harness assemblies that need strain relief and overmold planning
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 15A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

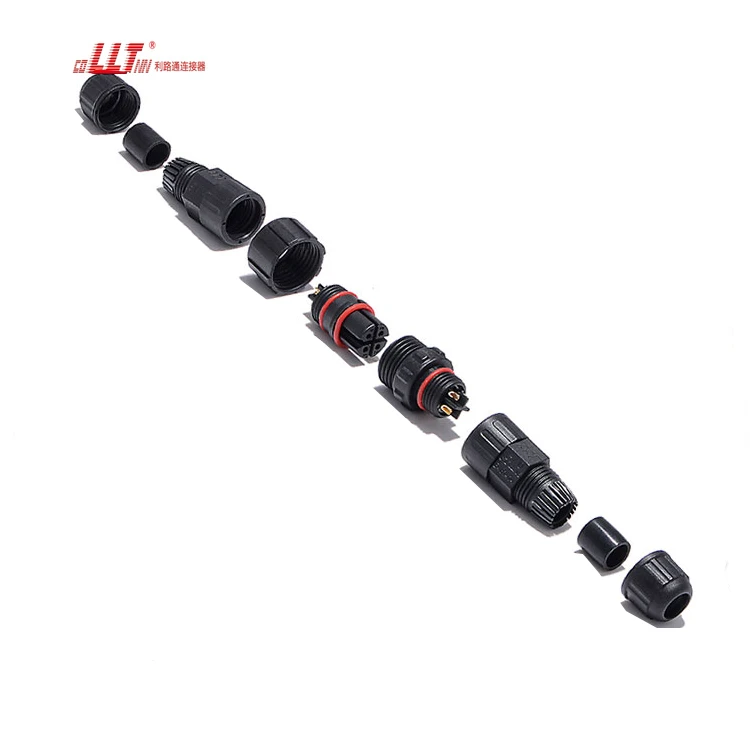

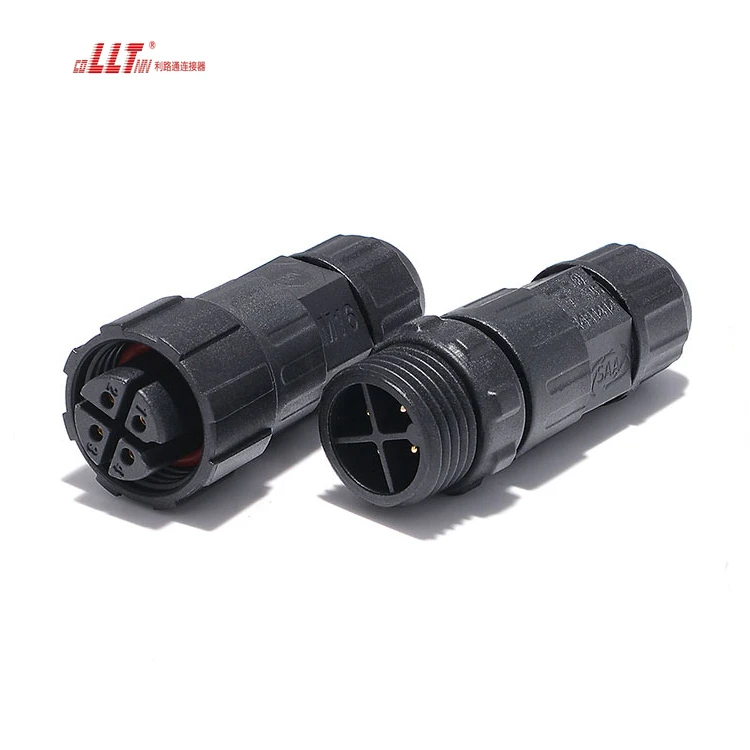

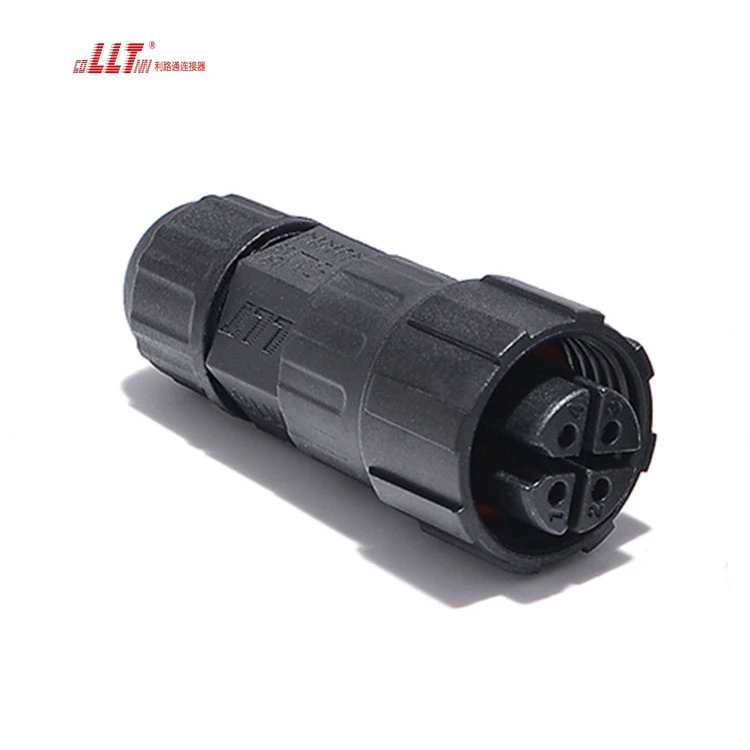

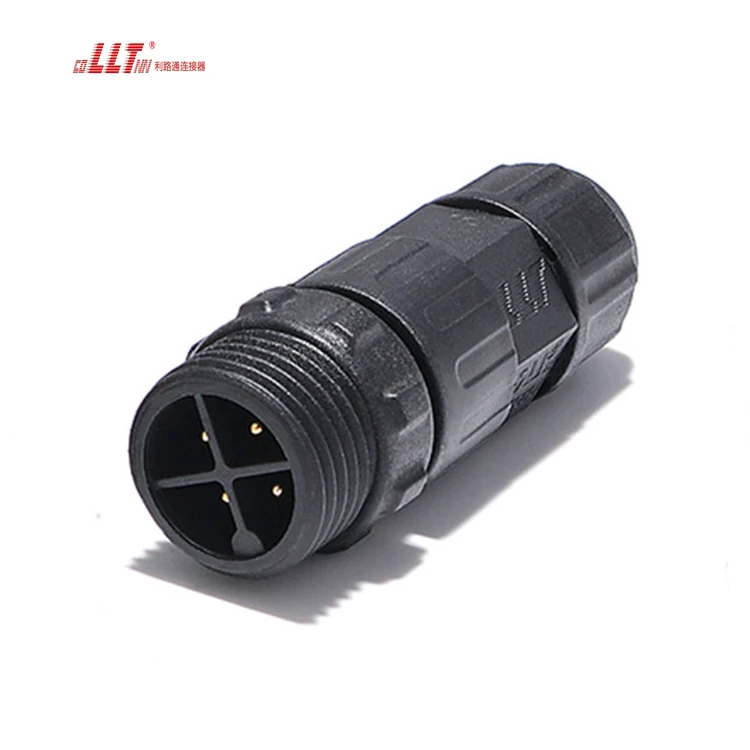

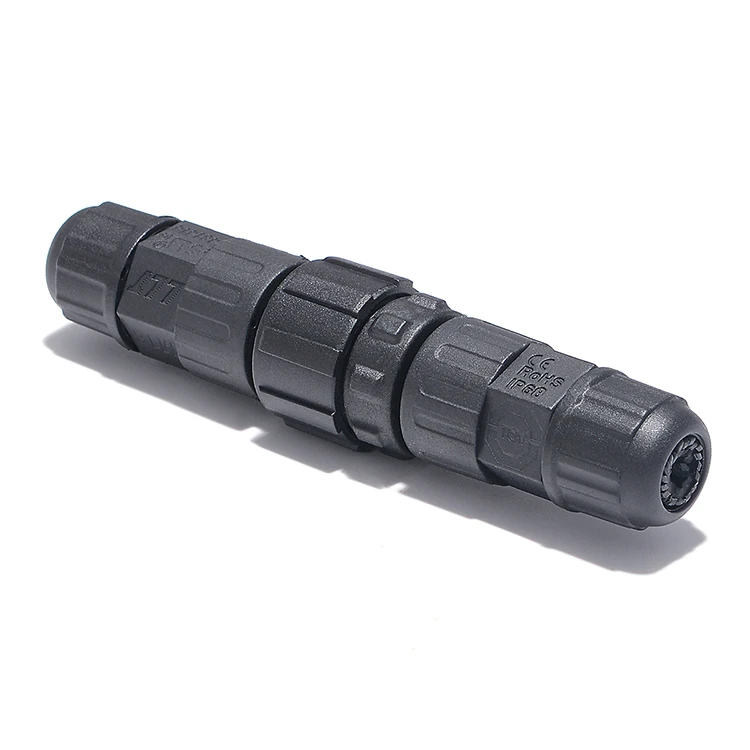

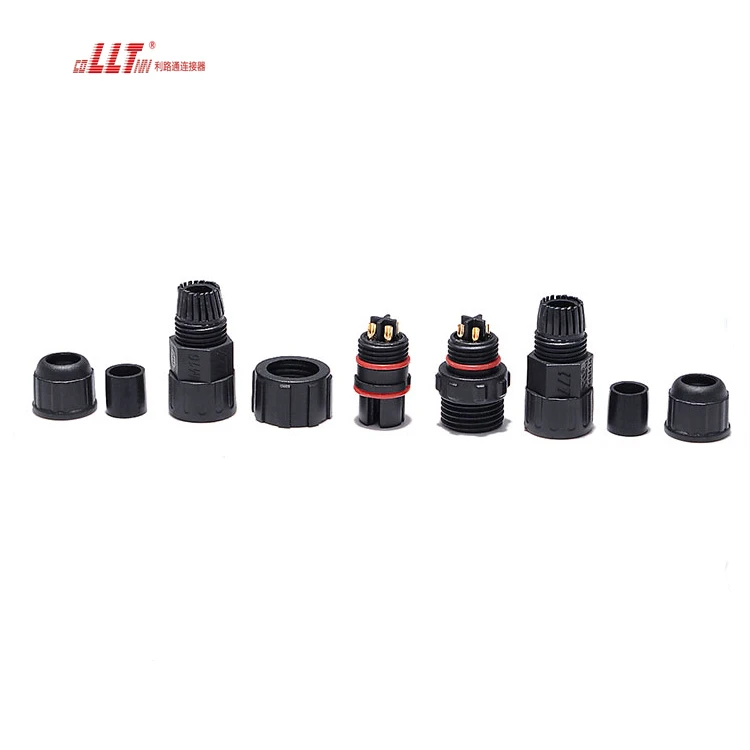

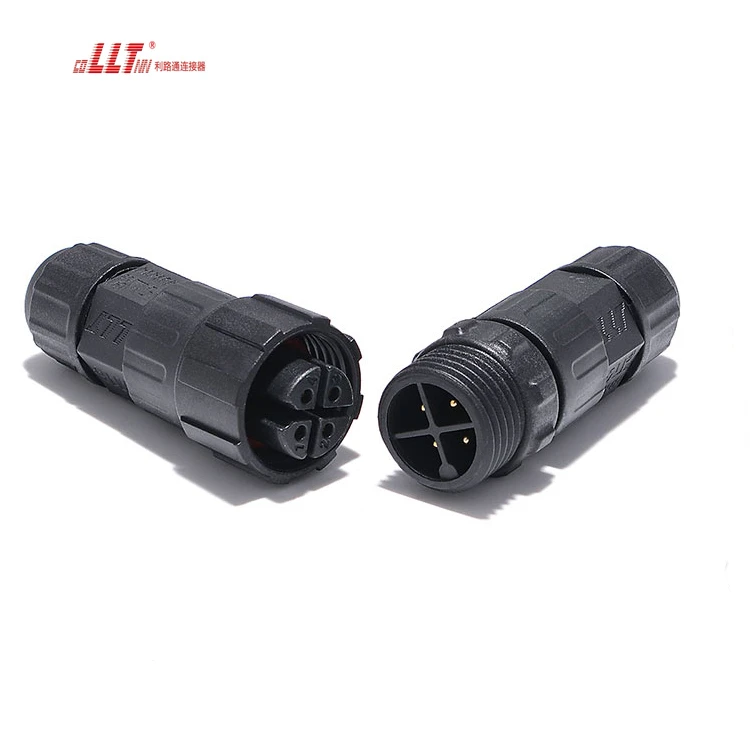

LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector gallery image 1
LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector gallery image 2
LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector gallery image 3
LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector gallery image 4
LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector gallery image 5
LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector gallery image 6
LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector is currently configured around 2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 4PIN LED Lighting Cable Waterproof Ip68 Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.

Request Quote Open Docking Connector
