LLT 4pin M29 50A Electrical Panel 4 Pin Power IP68 Waterproof Panel Connector

LLT 4pin M29 50A Electrical Panel 4 Pin Power IP68 Waterproof Panel Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP68, 50A current range, 4pin pin layout, 2 to 4pin interface. Termination direction is screw, which should be checked against the actual harness build.

High Current Waterproof Connectors M29 Threaded Model: LLT-M29-50004M2862
M29 / Threaded LLT 4pin M29 50A Electrical Panel 4 Pin Power IP68 Waterproof Panel Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M29

Pin

4pin

IP Rating

IP68

Rated Current

50A

Rated Voltage

600V

Product Series

M29

Wiring Type

Screw

Interface Type

2 to 4pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Model: M29-4pin 50A IP68 Waterproof Panel Mount Circular Connector Structure: Front nut locking bulkhead receptacle, matched with in-line cable plug Pin Layout: 4 independent high-current pins, flexible layout for 3-phase power + ground or dual power + dual signal hybrid connection inside equipment enclosures Core Product Advantages 1. Stable 50A High-Current Load Capacity Oversized solid brass contacts with heavy gold plating, contact resistance ≤10mΩ. Continuous full 50A load operation generates low heat and minimal voltage drop, perfectly matching high-power battery inverters and industrial power distribution cabinets, rated up to 600V AC/DC. 2. IP68 Multi-Layer Waterproof & Dustproof Protection Three-tier silicone rubber sealing system includes cable inlet clamping seal, mating surface compression gasket and panel thread integrated O-ring. Fully blocks water immersion, dust, oil mist and moisture, adapting to outdoor cabinets and damp workshop control boxes. 3. Hidden Front Panel Mount Design Bulkhead receptacle adopts rear nut locking installation; all fasteners and wiring terminals are concealed inside the cabinet without exposed external parts, effectively preventing loose connection caused by external pulling or equipment vibration. Standard M29 thread cutout simplifies cabinet drilling and assembly. 4. Rugged Flame-Retardant Shell Housing material: PA66+30% glass fiber reinforced nylon, UL94-V0 flame retardant grade, UV-resistant, shockproof and anti-aging. Stable electrical performance under extreme temperature range of -40℃ ~ +105℃. 5. Easy Maintenance & Safe Mechanical Performance Screw-type terminal wiring requires no professional crimping tools for quick wiring, replacement and on-site maintenance. ≥3000 reliable plug-unplug mating cycles; unique anti-reverse insertion keyway avoids mis-mating and short-circuit risks. Insulation resistance ≥1000MΩ (DC500V), withstand 1500V dielectric voltage for 1 minute to eliminate electric leakage hazards. Complete Technical Specifications • Model: M29-4pin 50A IP68 Waterproof Panel Mount Connector • Rated Current: 50A per contact • Rated Voltage: 600V AC/DC • Waterproof Grade: IP68 • Housing Material: Glass-filled PA66 flame retardant nylon (UL94-V0) • Contact Material: Solid brass with thick gold plating • Mounting Type: Front bulkhead threaded panel installation • Wiring Method: Screw terminal connection • Applicable Cable Outer Diameter: 7–15mm • Mechanical Lifespan: ≥3000 mating cycles • Operating Temperature: -40℃ ~ +105℃ • Certifications: CE, RoHS, TUV, SAA • Insulation Resistance: ≥1000MΩ @ DC500V • Dielectric Withstand Voltage: 1500V / 1min Main Application Scenarios • Energy storage inverter cabinets, battery pack control enclosures • Solar photovoltaic off-grid power station equipment • Outdoor industrial automation control boxes • Construction & agricultural heavy machinery power distribution panels • Marine power equipment housings, large outdoor LED lighting control cabinets • Portable high-power energy storage device casings

Application Fit

Typical application directions

  • Energy storage cabinets, battery modules, and inverter platforms with demanding load profiles
  • Outdoor electrical equipment where high current and sealing reliability must be handled together
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 50A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

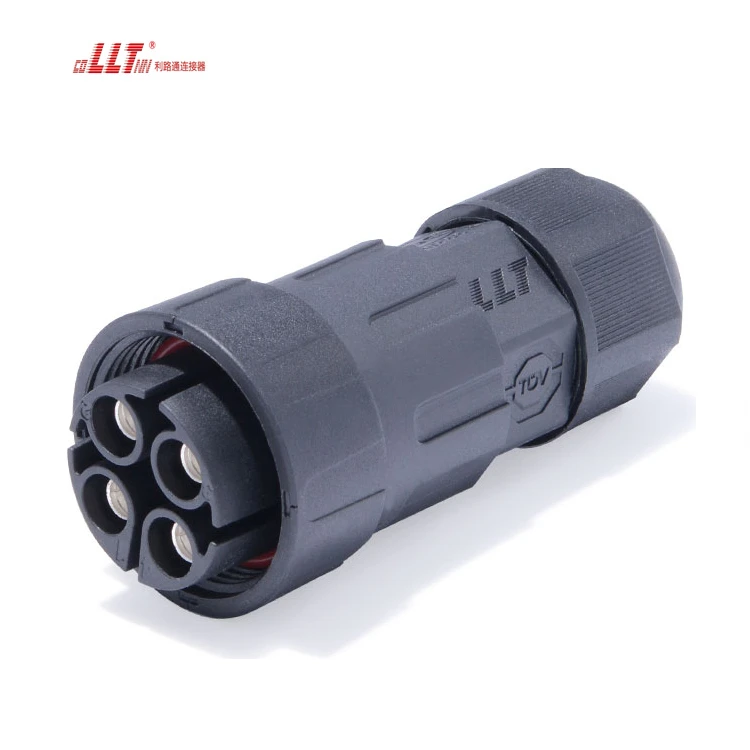

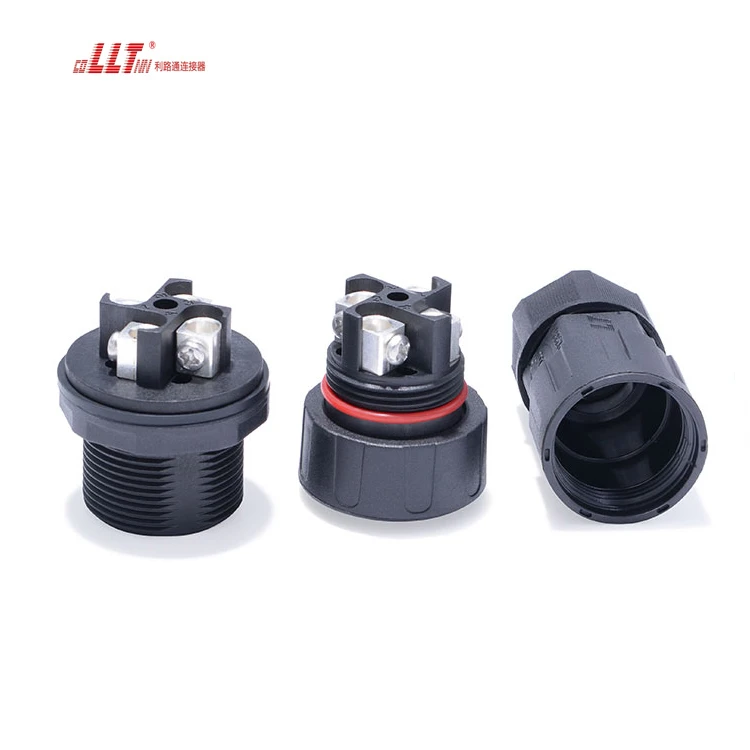

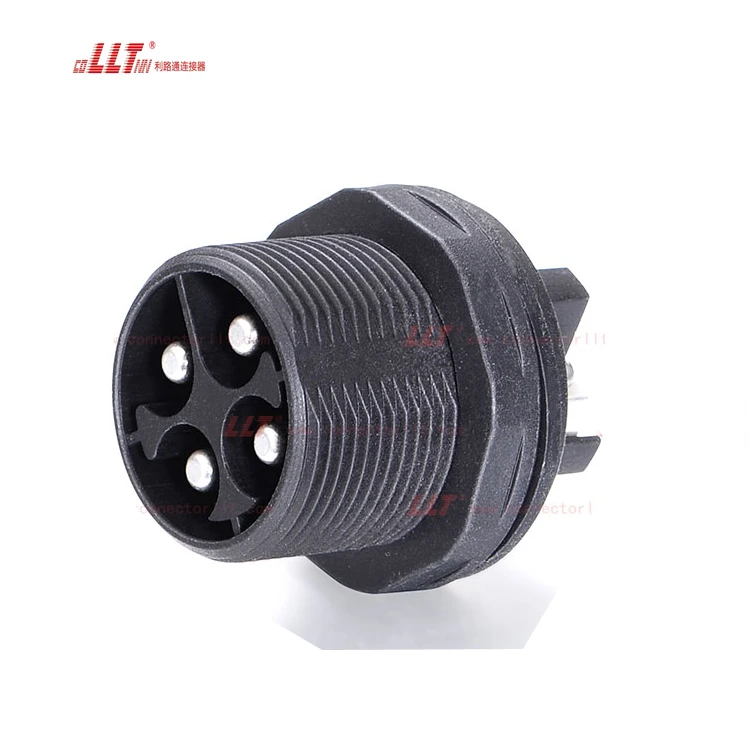

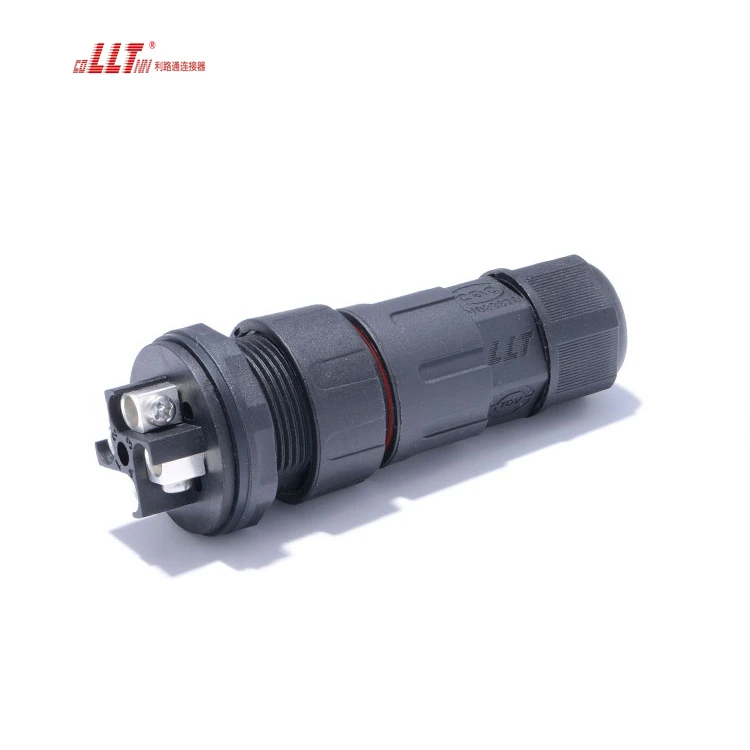

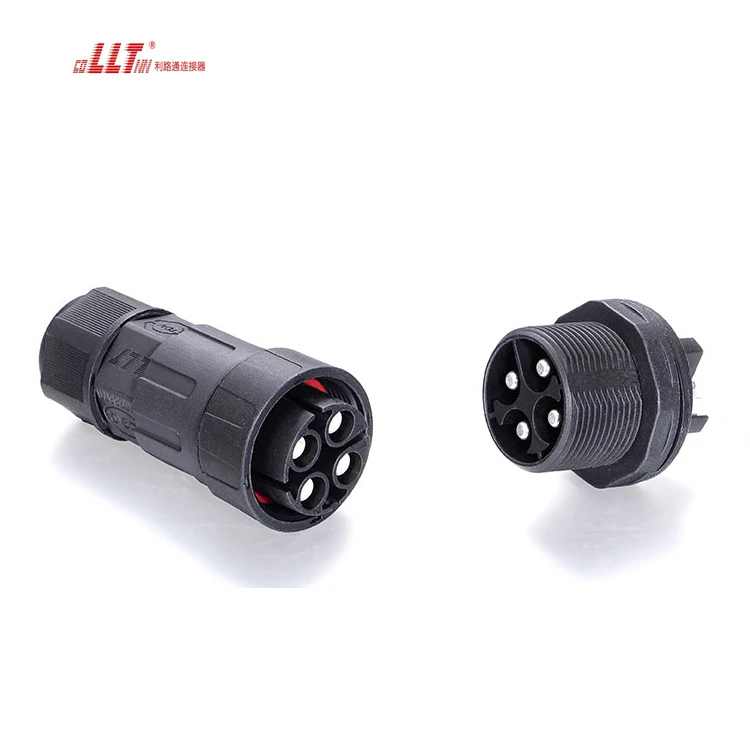

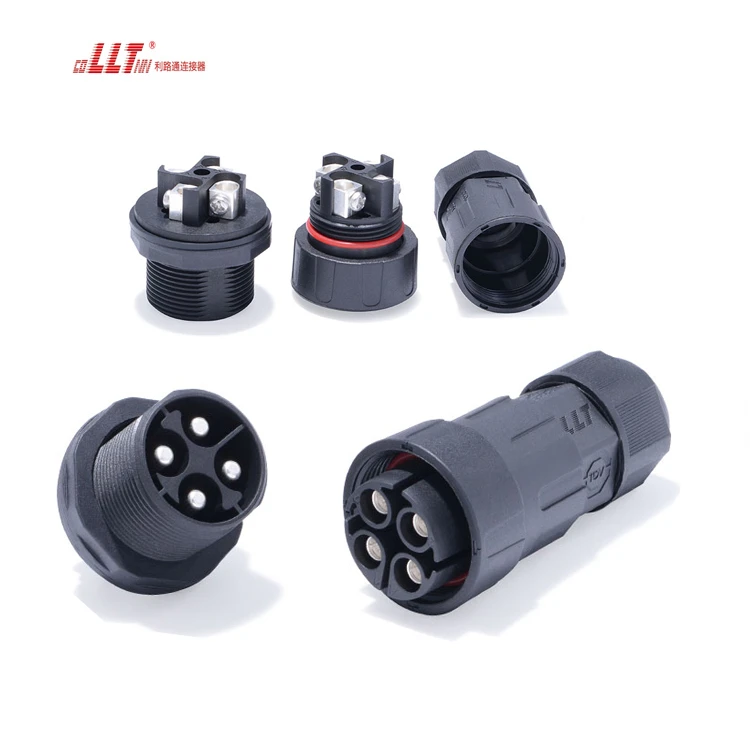

LLT 4pin M29 50A Electrical Panel 4 Pin Power IP68 Waterproof Panel Connector gallery image 1
