LLT M29 2pin rear female 50A Ip68 waterproof socket and plug

Name: LLT M29 2pin rear female 50A Ip68 waterproof socket and plug
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M29-50002F2962

LLT M29 2pin rear female 50A Ip68 waterproof socket and plug is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP67/IP68, 50A current range, 2pin pin layout, 2 to 4pin interface. Termination direction is screw, which should be checked against the actual harness build.

High Current Waterproof Connectors M29 Threaded Model: LLT-M29-50002F2962

M29 / Threaded LLT M29 2pin rear female 50A Ip68 waterproof socket and plug

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M29-2pin female rear panel assembly connector can get IP67/IP68 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It can be used in harsh environment It is very convenient to assemble. The male mate female through thread lock. attach cable by screw.We have 8.5/11/13/15mm grommet can fit your different diameter sheath cable. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide with competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

Energy storage cabinets, battery modules, and inverter platforms with demanding load profiles
Outdoor electrical equipment where high current and sealing reliability must be handled together
Projects targeting IP67/IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 50A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. M25 to M45 Large Power-Signal Connectors Reference for larger shell sizes and complex power-signal combinations. PV and Energy Storage Multi-Core High Current Connectors Connector direction for PV, inverter, and energy-storage projects.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT M29 2pin rear female 50A Ip68 waterproof socket and plug gallery image 1

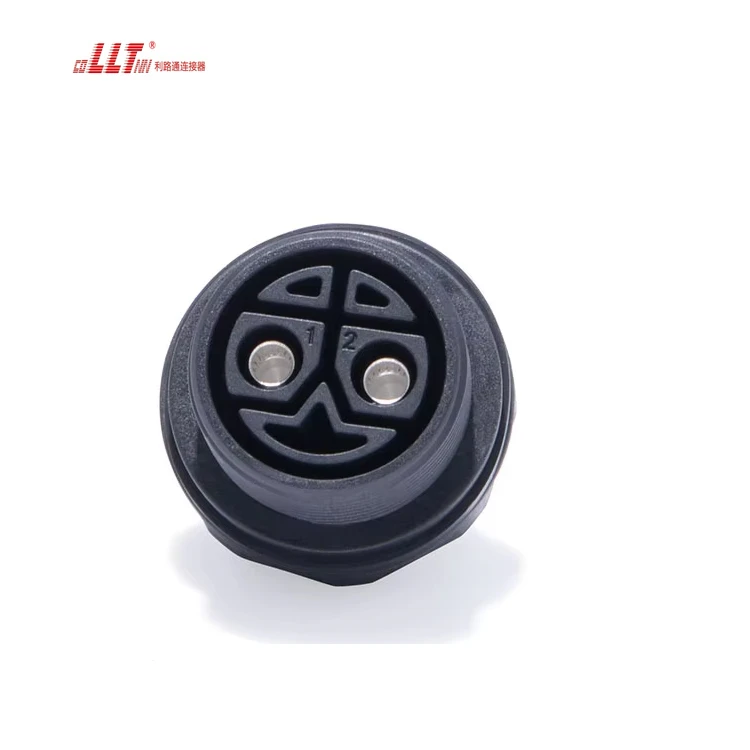

LLT M29 2pin rear female 50A Ip68 waterproof socket and plug gallery image 2

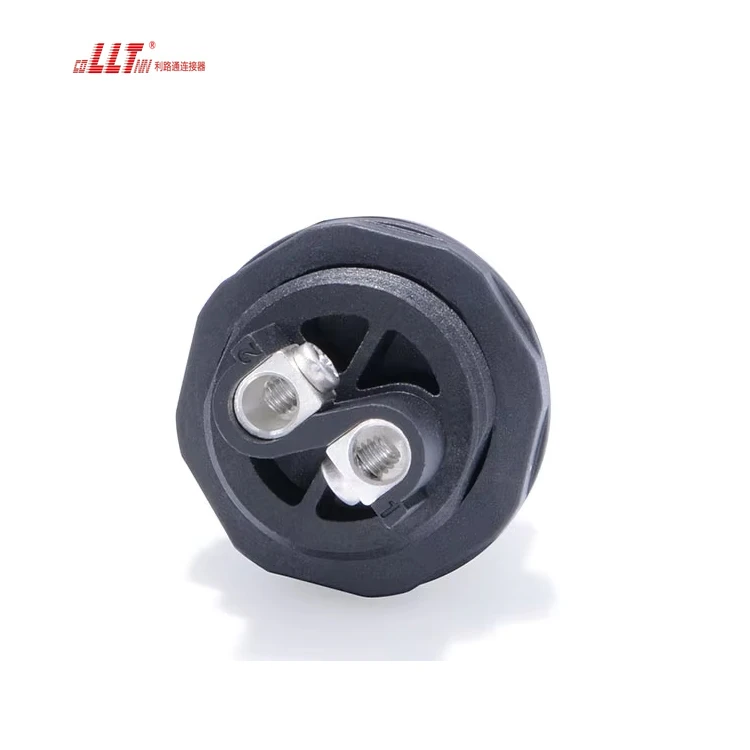

LLT M29 2pin rear female 50A Ip68 waterproof socket and plug gallery image 3

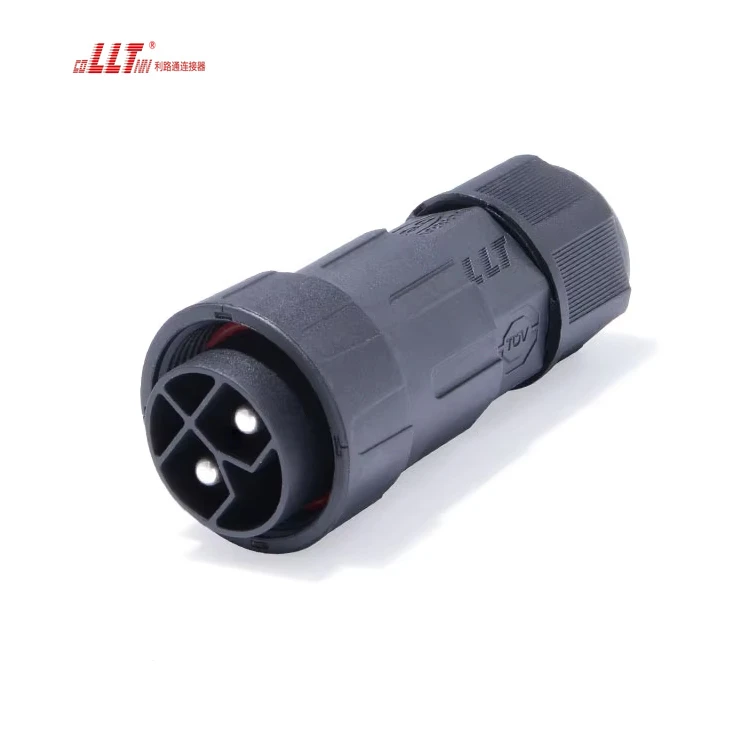

LLT M29 2pin rear female 50A Ip68 waterproof socket and plug gallery image 4

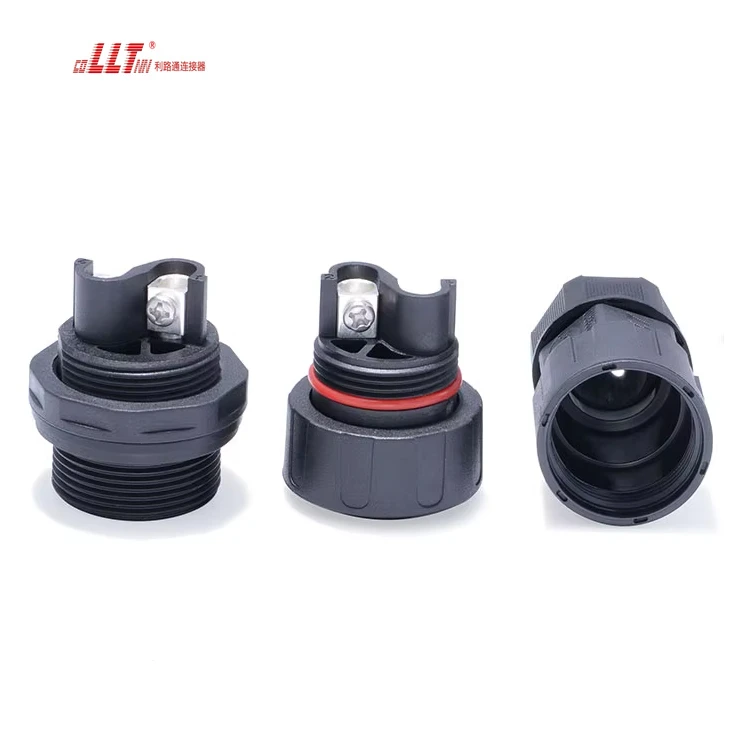

LLT M29 2pin rear female 50A Ip68 waterproof socket and plug gallery image 5

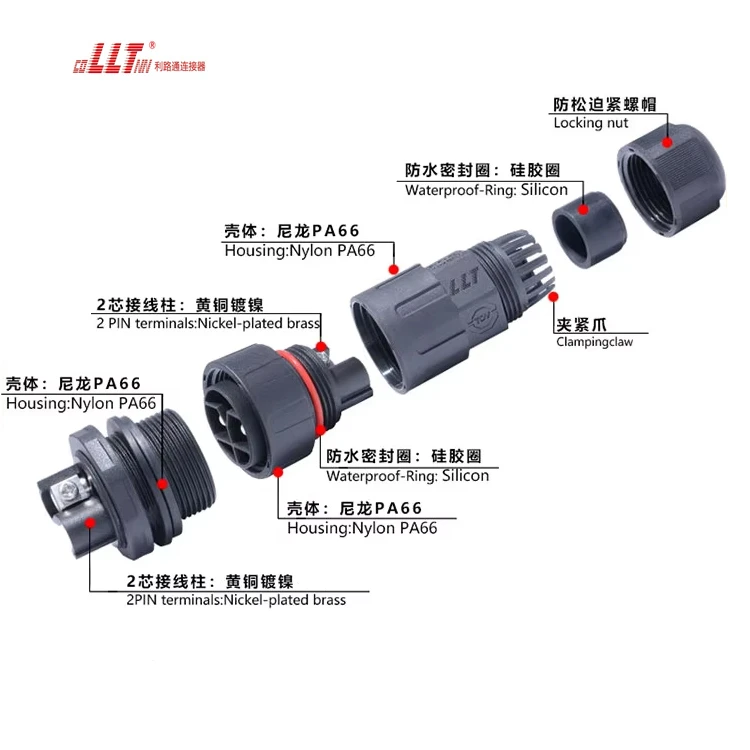

LLT M29 2pin rear female 50A Ip68 waterproof socket and plug gallery image 6

Compare nearby references in this family

Related Families

Move up to adjacent category pages

20A Waterproof Connectors 12 published products 10A Waterproof Connectors 11 published products Waterproof Power Connector 10 published products Automotive Connectors 4 published products

Technical FAQ

What should be confirmed before selecting LLT M29 2pin rear female 50A Ip68 waterproof socket and plug?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M29 2pin rear female 50A Ip68 waterproof socket and plug is currently configured around 2 to 4pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 50A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M29 2pin rear female 50A Ip68 waterproof socket and plug?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
