LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector

LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 50A current range, 2pin pin layout, 2 to 4 pin interface. Termination direction is screw, which should be checked against the actual harness build.

High Current Waterproof Connectors M29 Threaded Model: LLT-M29-50002F1052
M29 / Threaded LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M29

Pin

2pin

IP Rating

IP67/IP68

Rated Current

50A

Rated Voltage

600V

Product Series

M29

Wiring Type

Screw

Interface Type

2 to 4 pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

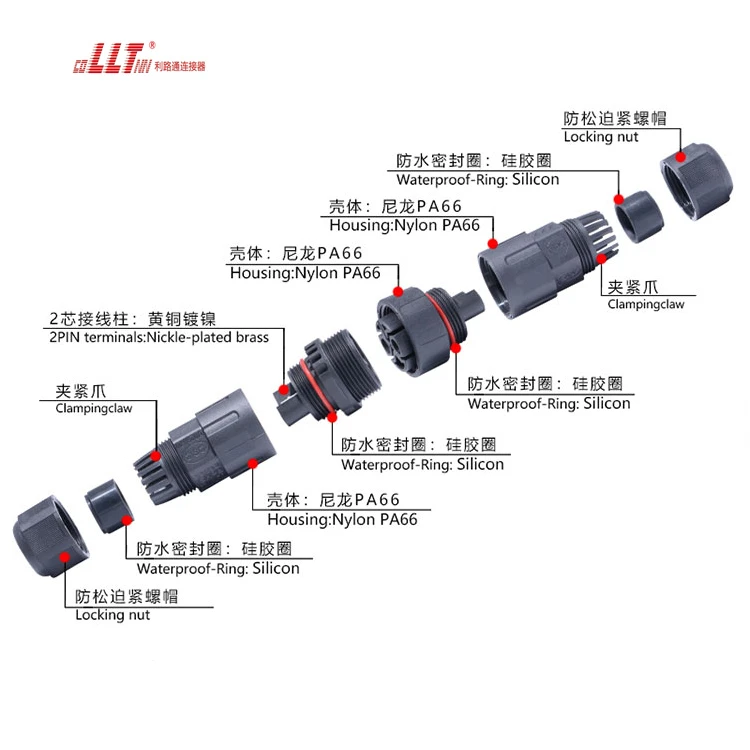

Model: M29-2pin 50A Waterproof Assembly Circular Connector Type: In-line cable-to-cable assembly Pin count: 2 power contacts only, dedicated for high-current DC/AC power connection Core Key Features 1. Heavy Current Capacity Rated 50A, 600V AC/DC; thickened copper conductive terminals reduce heat buildup during long-hour heavy load operation, avoiding overheating risks for energy storage and power equipment. 2. Rugged Waterproof & Dustproof Grade Multi-layer silicone rubber sealing gaskets with threaded locking design, reaching IP68 waterproof rating; fully blocks water immersion, dust, oil mist and chemical splashes in harsh outdoor and workshop environments. 3. Premium Material Construction • Housing: High-strength PA66 nylon, flame retardant, anti-aging, shock-resistant and UV resistant for long outdoor service life • Contacts: Solid brass base with thick gold plating, excellent conductivity, anti-oxidation and anti-corrosion, stable signal & power transmission 4. Convenient Assembly Structure Screw locking cable gland, adjustable clamping range for cable outer diameter 11–15mm; screw-type terminal wiring, no crimp tools required, fast field assembly and maintenance. 5. Durable Mechanical Performance Over 5,000 reliable plug-unplug cycles; anti-misalignment design prevents reverse insertion; threaded lock prevents accidental disconnection under vibration or pulling force. 6. Wide Operating Temperature Range Working temperature: -40℃ ~ +105℃, adaptable to cold northern areas and high-temperature industrial equipment operation. Standard Technical Specifications • Model: M29 2Pin Assembly Connector • Rated Current: 50A • Rated Voltage: 600V • Waterproof Grade: IP68 • Housing Material: PA66 Flame Retardant Nylon • Contact Material: Brass with Gold Plating • Wiring Method: Screw Termination • Applicable Cable: 6–10 AWG, Cable OD 7.5–15mm • Mating Cycles: ≥5000 times • Operation Temp: -40℃ ~ +105℃ • Certifications: CE, RoHS, TUV, SAA Main Application Scenarios • Energy storage battery pack, portable power station • Electric vehicle charging auxiliary lines • Outdoor high-power LED lighting, solar power systems • Industrial automation equipment, construction machinery • Marine equipment, agricultural high-power machinery • Outdoor monitoring large-power supply wiring 3. Short Technical Header (For Offer Sheet / BOM) M29-2pin 50A IP68 Waterproof Circular Assembly Connector, 600V, PA66 Nylon Housing, Gold Plated Brass Contacts, Screw Wiring, In-line / Panel Mount Optional, CE RoHS Certified for High Current Outdoor Power Connection

Application Fit

Typical application directions

  • Energy storage cabinets, battery modules, and inverter platforms with demanding load profiles
  • Outdoor electrical equipment where high current and sealing reliability must be handled together
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 50A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

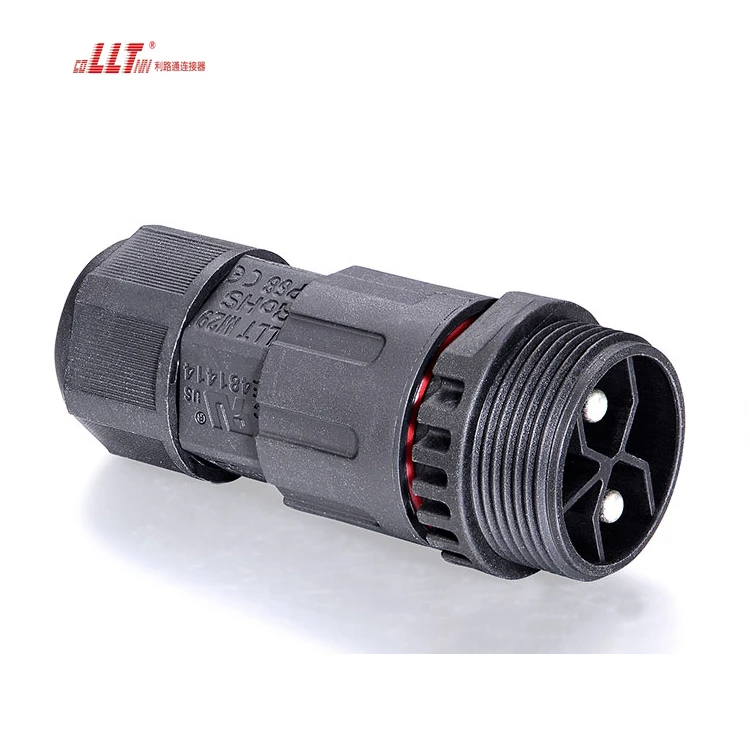

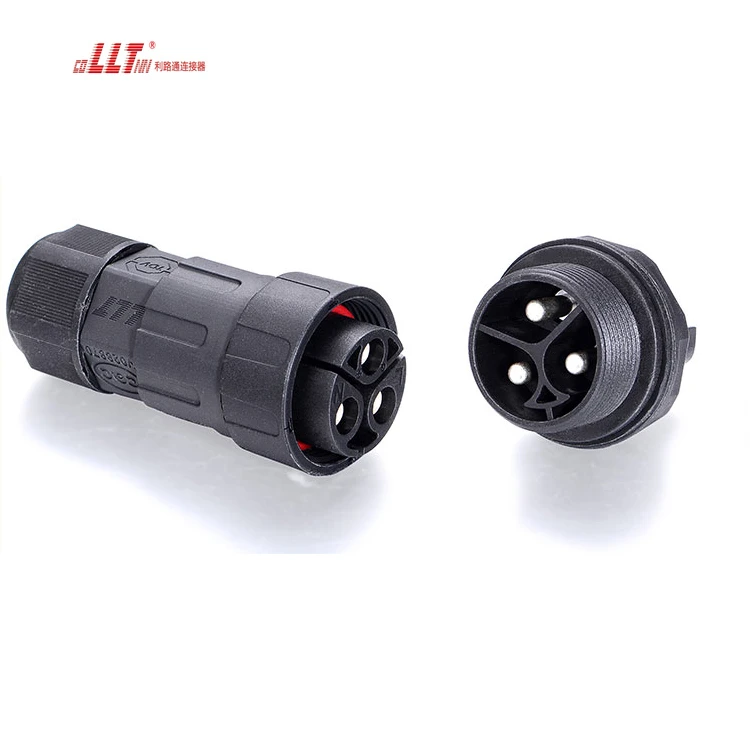

LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector gallery image 1
LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector gallery image 2
LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector gallery image 3
LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector gallery image 4
LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector gallery image 5
LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector gallery image 6
LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector is currently configured around 2 to 4 pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 50A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Factory 2pin M29 Large Power 50A 600V Electrical Led Light Connector 2 3 4 Pin IP68 Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
