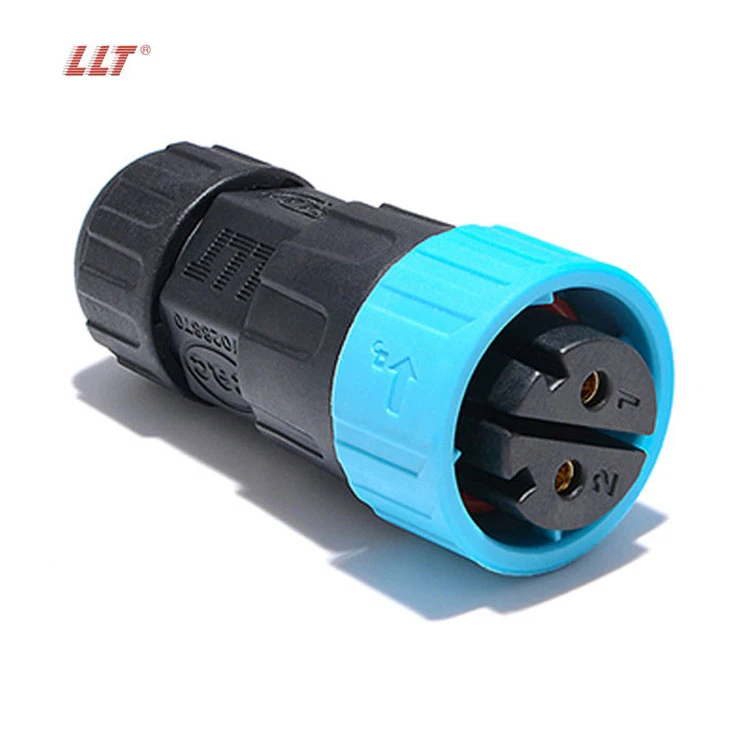

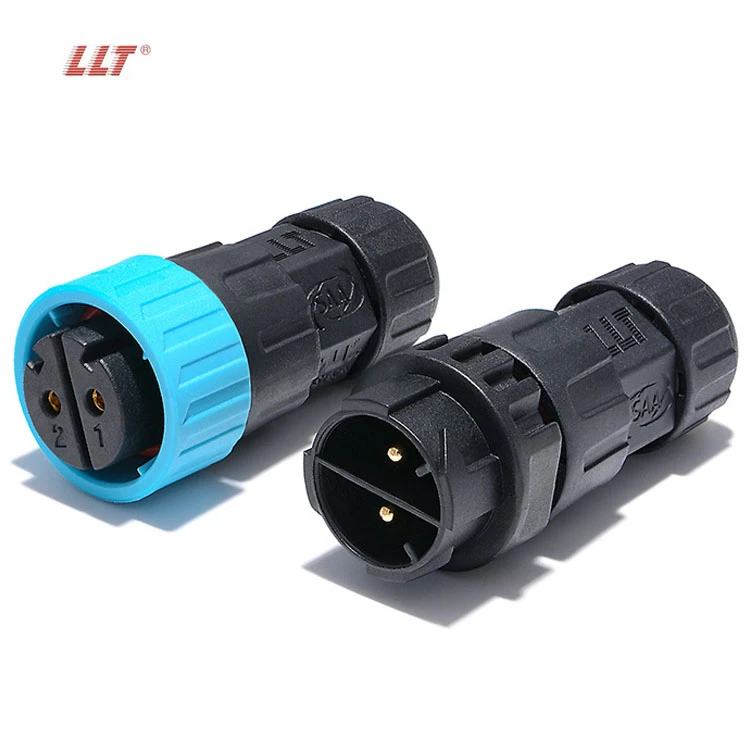

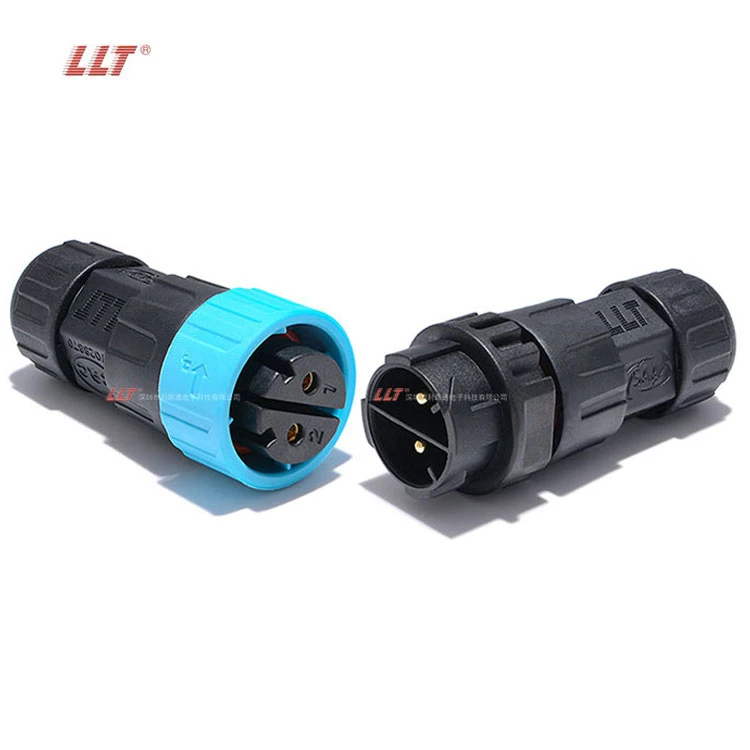

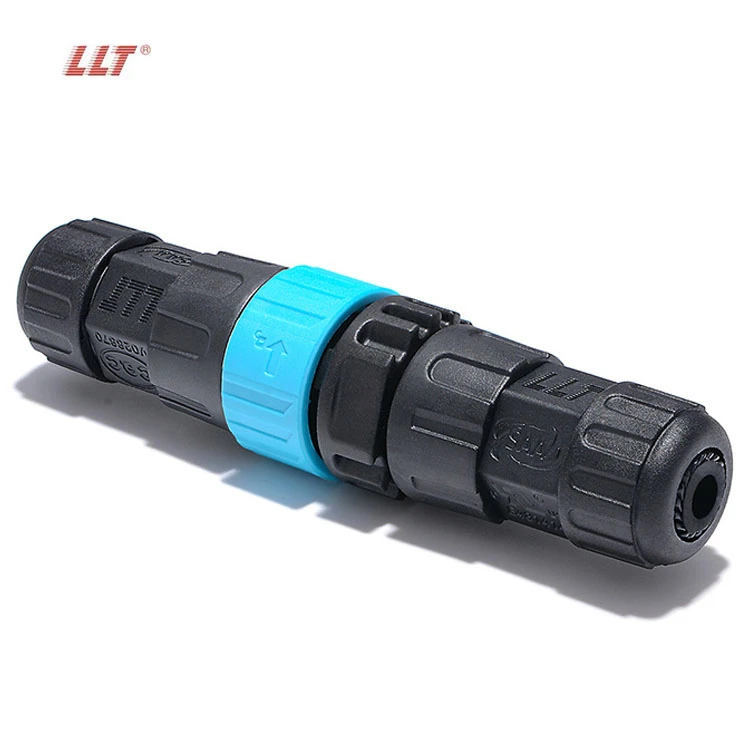

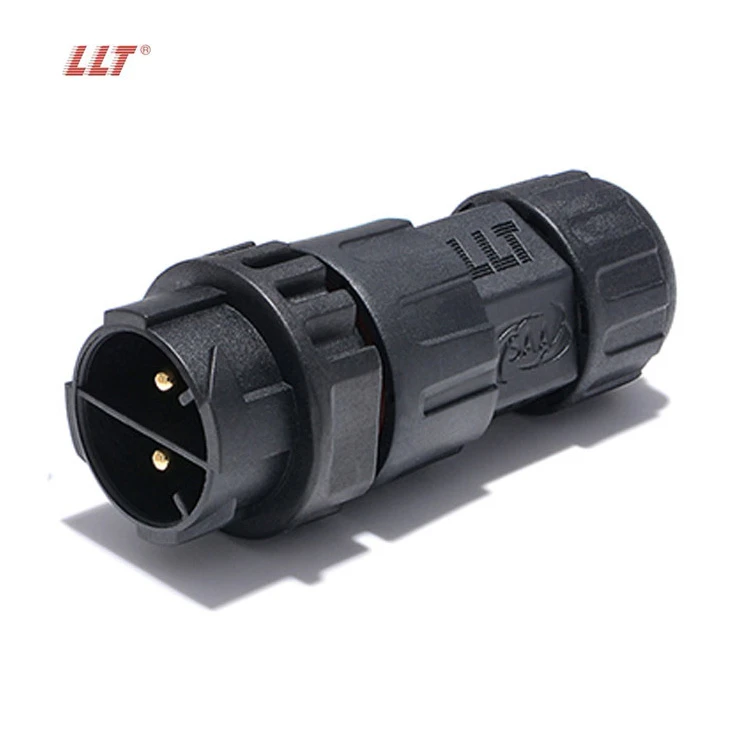

M25 3 Pin Push locking Cable To Cable Waterproof Male Female Connector
This waterproof connector have thread lock and push lock,soldering cup and screw fixed for choice,have good waterproof performance up to IP67 IP68, the body material is nylon PA66,conductor material is brass gold plated. suitable for outdoor LED lighting,power,signal transfer, precision automation machinery, and so on
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 13mm
Pin
2-24 Pin
IP Rating
IP68
Rated Current
35A
Rated Voltage
600V
Product Series
M25
Wiring Type
Soldering or screw fixed
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Energy storage cabinets, battery modules, and inverter platforms with demanding load profiles
- Outdoor electrical equipment where high current and sealing reliability must be handled together
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 35A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery

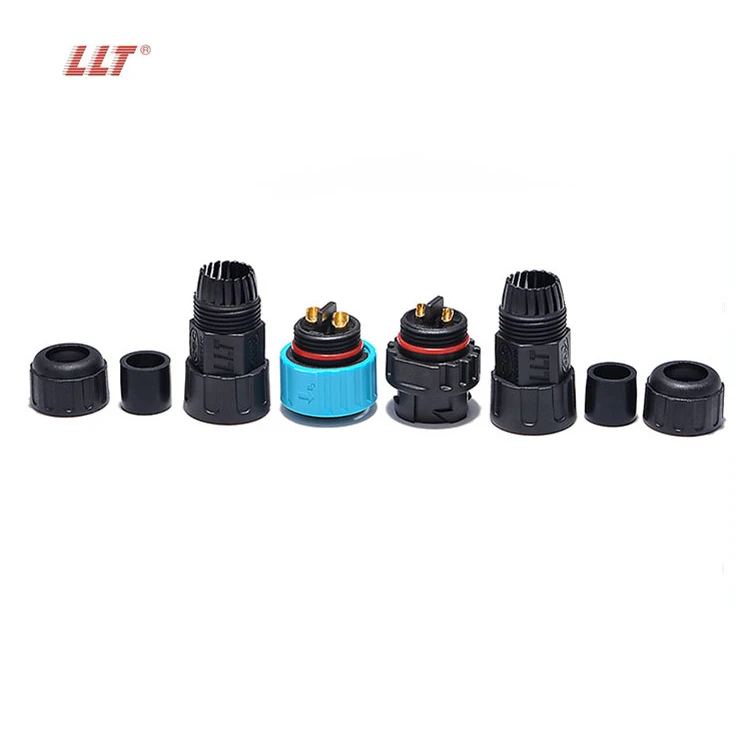

Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting M25 3 Pin Push locking Cable To Cable Waterproof Male Female Connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 35A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for M25 3 Pin Push locking Cable To Cable Waterproof Male Female Connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
