LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting

Waterproof Design: IP68 rated for use in wet environments. Secure Fit: Designed for reliable connections in demanding industrial applications. High Durability:Built to withstand harsh conditions and heavy use. Copper Connectors:Ensures robust electrical performance and longevity. Round Shape: Optimized for compact installation and easy handling.

Waterproof Power Connector M25 Push-Lock Model: LLT-M25-35003F3034
M25 / Push-Lock LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M25

Pin

2-24 Pin

IP Rating

IP67

Rated Current

35A

Rated Voltage

600V

Product Series

M25

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Feature: * Multi pin optional: 2~24pin * IP67 rating, ensure your safety (waterproof & shockproof & dustproof) * Certificated by UL, CE, TUV, CQC, RoHS * PA66 material, suitable for harsh environment (antiflaming & antioxidant) * Free combination, field assembly or molded with cable, male/female/socket. * After-sale guarantee, 1 years warranty * Quality guarantee, full inspection of incoming materials, and at least 3~6 full inspections during the production process according to field assembly series or molded with cable series

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 35A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

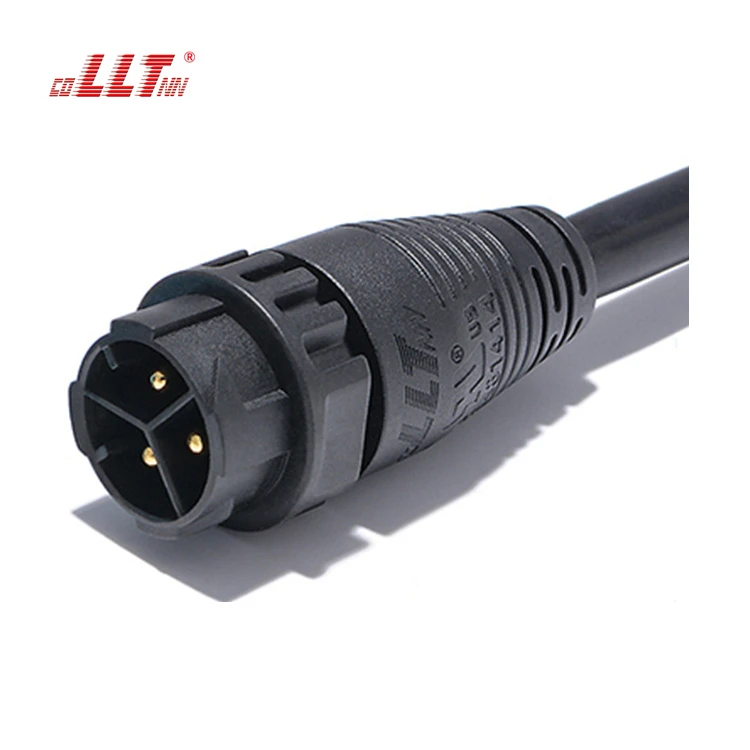

LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting gallery image 1

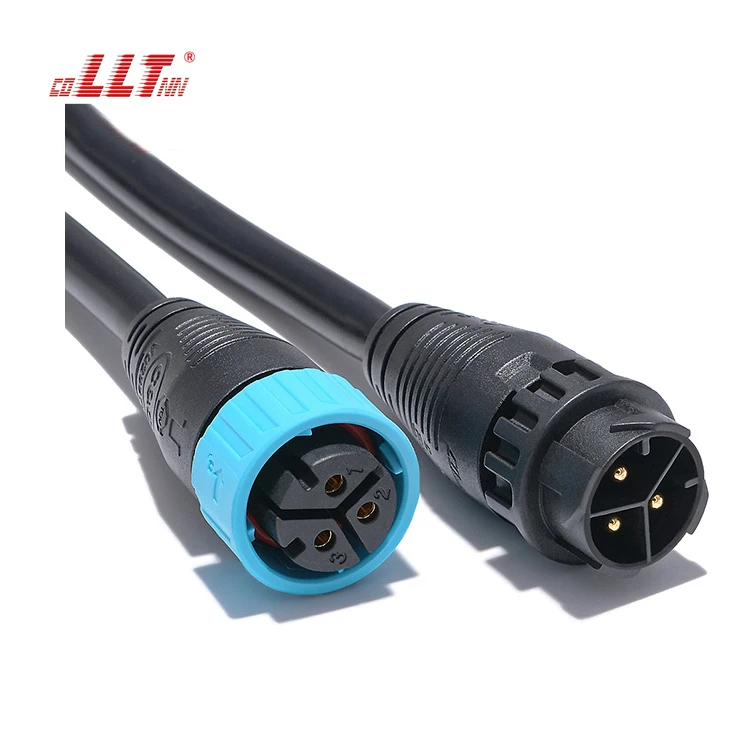

LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting gallery image 2

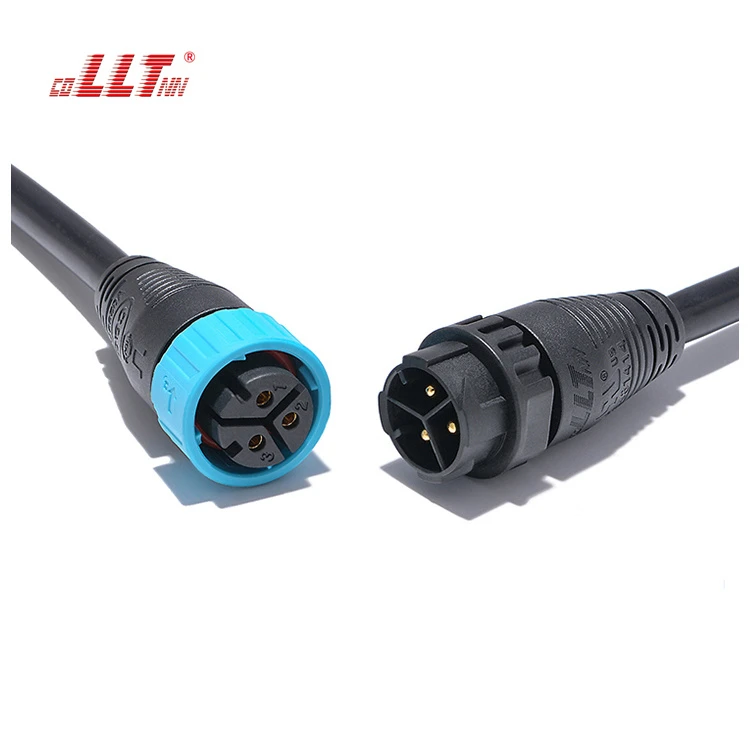

LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting gallery image 3

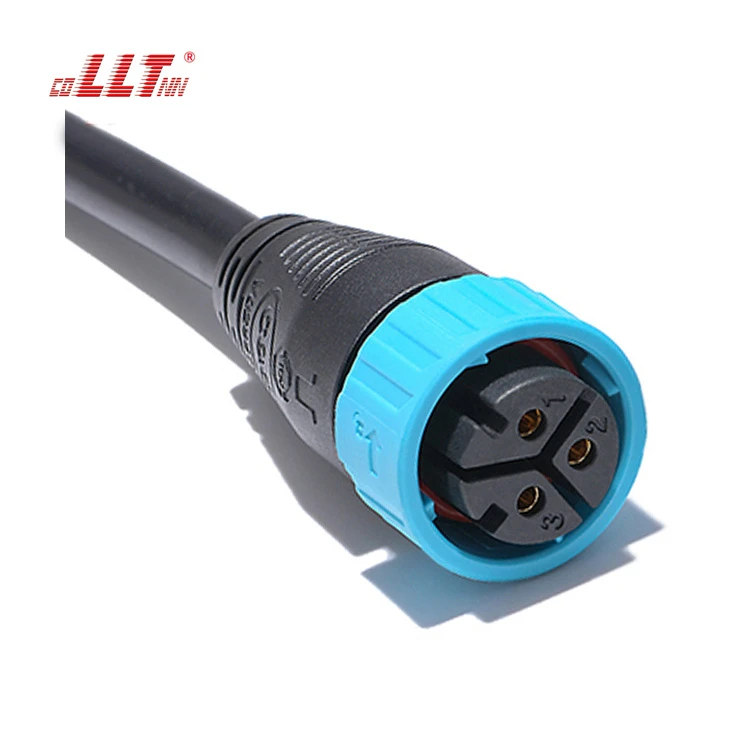

LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting gallery image 4

Technical FAQ

What should be confirmed before selecting LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67. Rated current references include 35A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 250V 35A 2 3 4 Pin M25 Quick Self Push Lock Waterproof Connector IP65 IP67 Cable Connectors for Outdoor LED Lighting?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
